PB70 HIGHLIGHTS
LENGTH
23.24 M / 76' 3"
BEAM
5.83 M / 19' 1"
CRUISE SPEED
28 knots
TOP SPEED
33 KNOTS
CRUISING RANGE
788 NM @ 21 KNOTS
FUEL CONSUMPTION
42 G/H @ 21 KNOTS
PB70 MODEL RANGE
The Palm Beach 70 is available in Sedan, Flybridge, Extended Flybridge and Skylounge models. As the current flagship of the fleet, its 19’2” beam boasts expansive volume for larger entertaining areas, with more options for staterooms and an upper or lower galley that can be configured to suit any taste or style. Highly customizable and finished with meticulous craftsmanship using exquisite materials, the Palm Beach 70 ensures a luxurious onboard experience that embodies the spirit of luxury yachting.

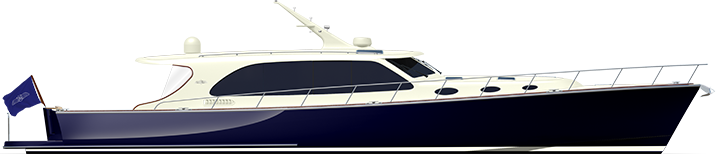

PB70 SEDAN MODEL

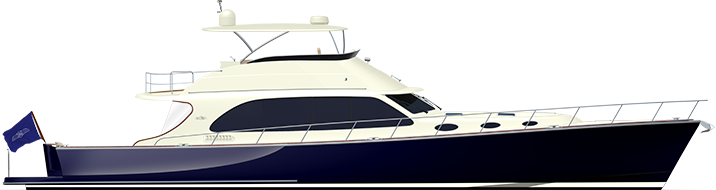

The Palm Beach 70’s impressive length allows for larger entertaining areas and more options for stateroom configurations.PB70 FLYBRIDGE MODEL

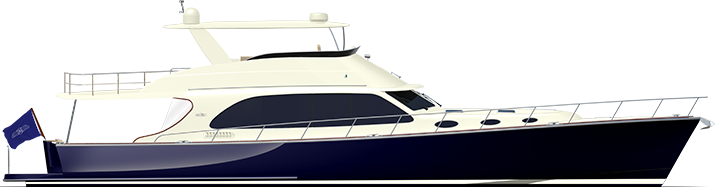

An added deck to the Palm Beach 70’s already expansive footprint makes it ideal for long-distance cruising.PB70 EXTENDED FLYBRIDGE MODEL

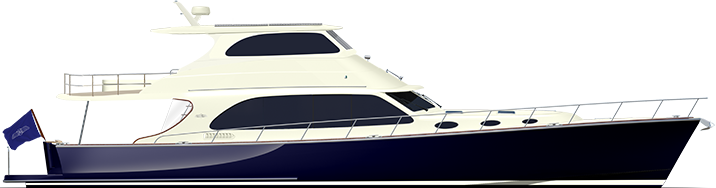

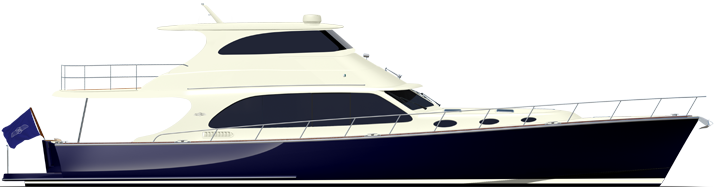

The Palm Beach 70 Extended Flybridge offer’s additional space to the Flybridge that is ideal for entertaining and which can also be configured with a galley.PB70 SKYLOUNGE MODEL
The Palm Beach 70 Skylounge offers even more additional space to the Flybridge model. The extra room lends itself to a wide array of custom top-level living and entertaining options.PB70 SPECIFICATIONS
TECHNICAL
- Length Overall 76’ 3” 23.24 M
- Length On Deck 69’ 8” 21.25 M
- Beam 19’ 1” 5.83 M
- Displacement (Dry) 76,720 LBS 34,800 KGS
CAPACITY
- Fuel Capacity 1,585 GAL 6,000 L
- Water Capacity 317 GAL 1,200 L
- Holding Tank 105 GAL 400 L
ENGINES - STANDARD
- 2 X Volvo Penta IPS 1200S
- Top Speed 33 KNOTS
- Cruising Speed 28 KNOTS
- Range 788 NM / 42 GPH / 21 KN
- Draft 4’ 4” 1.32 M
ENGINES - OPTIONAL
- 2 X Volvo Penta IPS 1350S
- Top Speed 34 KNOTS
- Cruising Speed 28 KNOTS
- Range 933 NM / 36 GPH / 21 KN
- Draft 4’ 4” 1.32 M
- 2 X Volvo Penta D13 Shafts
- Top Speed 33 KNOTS
- Cruising Speed 27 KNOTS
- Range 813 NM / 41 GPH / 21 KN
- Draft 4’ 1.22 M
DESIGN
PB70 EXTERIOR
The lines one finds on a Palm Beach are nothing short of gorgeous. Its timeless beauty and sleek, modern edge sets a Palm Beach apart from anything else found in yachting. The spacious and functional cockpit creates an exceptionally comfortable entertainment area, and is customizable in layout and design.
PB70 INTERIOR
At Palm Beach, customization is king. We design and engineer our yachts for enhanced rigidity by fusing the bulkheads and fixed furniture with the hull. This practice allows for meticulously planned internal layouts during the early design stages. We offer flexibility in galley placement and stateroom configurations to optimize space utilization and storage. Our craftsmen take great care to ensure that every inch of the yacht is thoughtfully designed to enhance your enjoyment onboard.
