PB52 HIGHLIGHTS
LENGTH
18.45 M / 60' 6"
BEAM
5.23 M / 17' 2"
CRUISE SPEED
26 knots
TOP SPEED
31 KNOTS
CRUISING RANGE
481 nm @ 21 knots
FUEL CONSUMPTION
31 G/H @ 21 KNOTS
PB52 MODEL RANGE
The Palm Beach 52, which is available in both sedan and flybridge models, is a high-performance yacht with a top speed of 31 knots and a highly efficient cruise speed of 24. The 17’ 2” beam has enabled us to create spacious living and accommodation spaces, all of which are furnished in golden teak and an exquisite range of fabrics.
Both models have two staterooms, one of which can be configured with two twin beds to create greater flexibility for hosting guests and family members.
To maximise the use of the indoor entertaining area, we offer two different layouts – an L-Shaped lounge or the more intimate twin facing settees.
For a quick trip to shore, a self-launching tender is concealed beneath the cockpit.

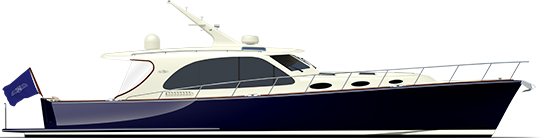

PB52 SEDAN MODEL
The Palm Beach 52 rides on one of the yachting industry’s most efficient hulls, offering incredible efficiency as well as high performance. It also has a 17-foot, 2-inch beam that creates expansive, light filled entertaining areas that are beautifully finished in golden teak and exquisite fabrics.PB52 FLYBRIDGE MODEL

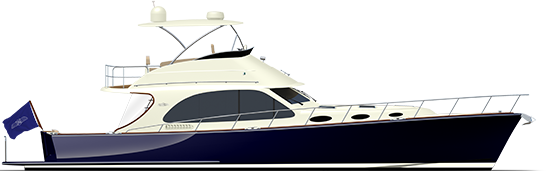

The Palm Beach 52 Flybridge offers all there is to like about the Sedan model, with the asset of an additional deck. It has two staterooms, spacious entertainment areas, and a level of customizability that is nearly unheard of in this size and class.PB52 SPECIFICATIONS
TECHNICAL
- Length Overall 60’ 6” 18.45 M
- Length On Deck 53’ 2” 16.21 M
- Beam 17’ 2” 5.23 M
- Displacement (Dry) 49,833 LBS 22,604 KG
CAPACITY
- Fuel Capacity 713 GAL 2,700 L
- Water Capacity 264 GAL 1,000 L
- Holding Tank 58 GAL 220 L
ENGINES - STANDARD
- 2 X Volvo Penta IPS 800S
- Top Speed 31 KNOTS
- Cruising Speed 26 KNOTS
- Range 481 NM / 31 GPH / 21 KN
- Draft 3’ 5” 1.03 M
ENGINES - OPTIONAL
- 2 X Volvo Penta IPS 950S
- Top Speed 34 KNOTS
- Cruising Speed 28 KNOTS
- Range 481 NM / 31 GPH / 21 KN
- Draft 3’ 5” 1.03 M
- 2 X Volvo Penta D11 Shafts
- Top Speed 31 KNOTS
- Cruising Speed 27 KNOTS
- Range 417 NM / 36 GPH / 21 KN
- Draft 3’ 10” 1.18 M
DESIGN
PB52 EXTERIOR
The lines one finds on a Palm Beach are nothing short of gorgeous. Its timeless beauty and sleek, modern edge sets a Palm Beach apart from anything else found in yachting. The spacious and functional cockpit creates an exceptionally comfortable entertainment area, and is customizable in layout and design.
PB52 INTERIOR
At Palm Beach, customization is king. We design and engineer our yachts for enhanced rigidity by fusing the bulkheads and fixed furniture with the hull. This practice allows for meticulously planned internal layouts during the early design stages. We offer flexibility in galley placement and stateroom configurations to optimize space utilization and storage. Our craftsmen take great care to ensure that every inch of the yacht is thoughtfully designed to enhance your enjoyment onboard.
