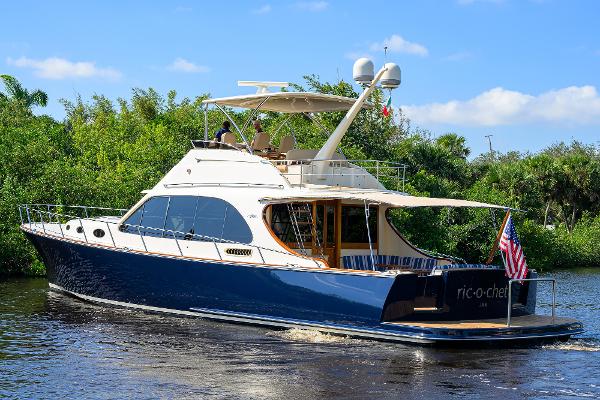

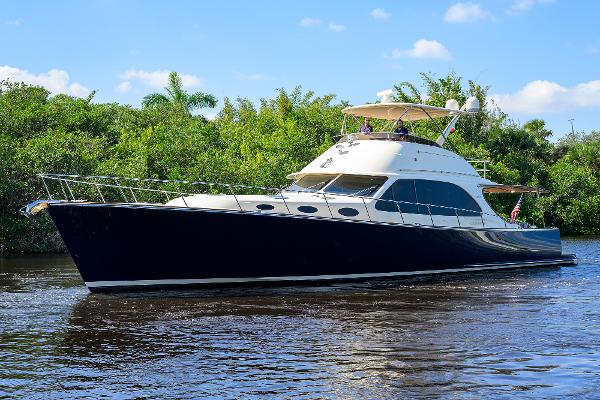

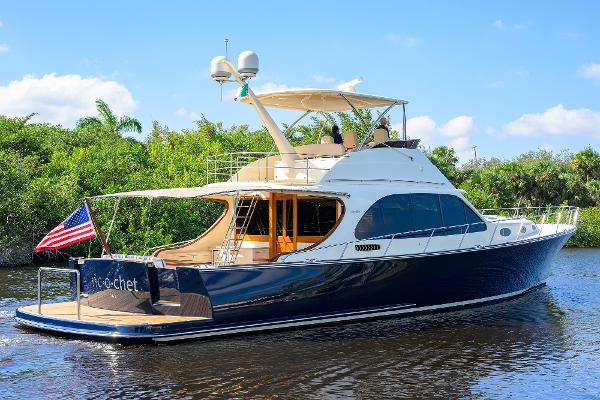

RIC-O-CHET Specifications

Construction

All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity All exterior strength steel fittings are 316 marine grade stainless steel Antifouling paint: Micron Extra #YBA 994 Black Enclosed hardtop - GRP double moulded with electric sliding windows (port, starboard & aft) using toughened glass Full Burmese teak interior Hull & superstructure is built using the latest technology in composite boat construction. E-Glass, Corcell and Airex foam, Duflex paneling, stitched multi-axial fabric, vinylester and epoxy resins are used to produce an extremely strong and lightweight hull Hull color: Flag Blue with Cream Boot stripe, Upgrade Watertight collision bulkhead located in the bow V-Kool on all windows, Upgrade

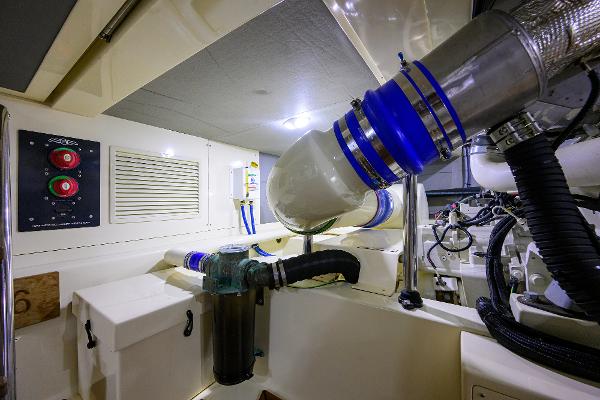

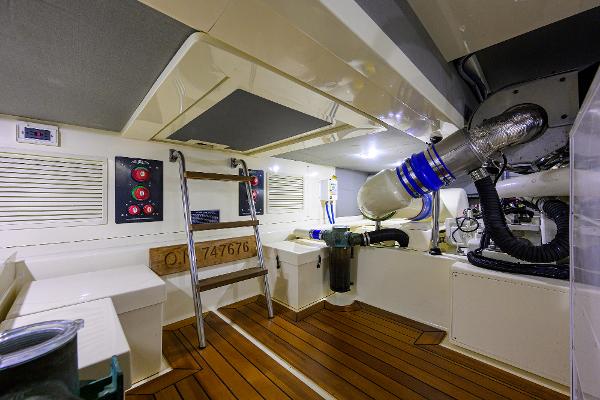

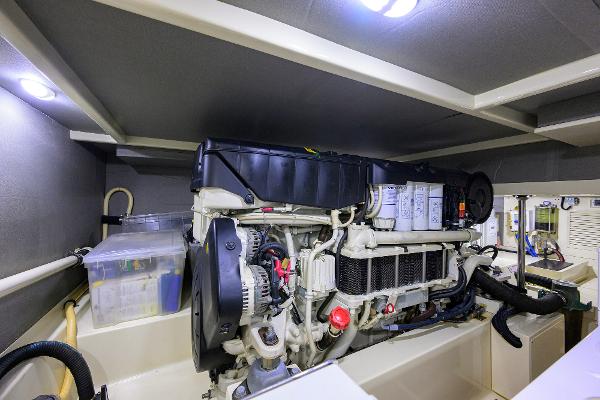

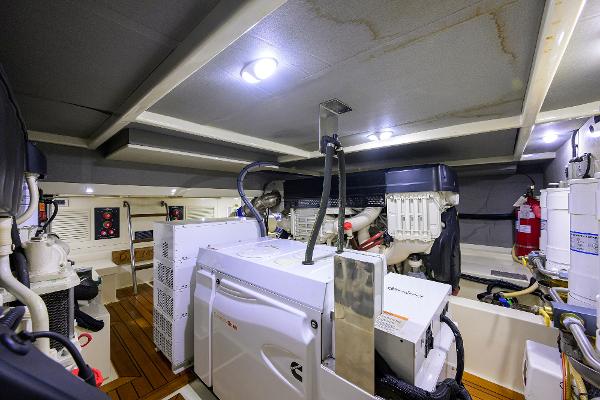

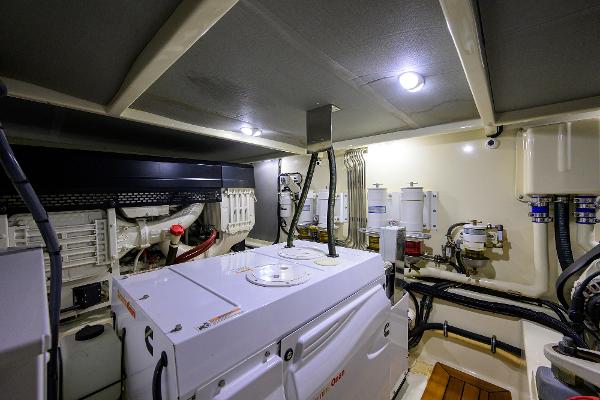

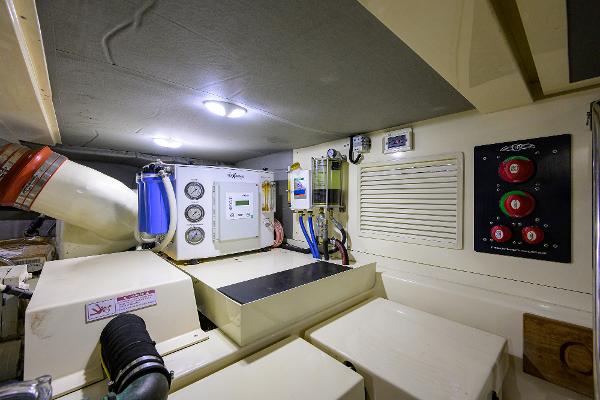

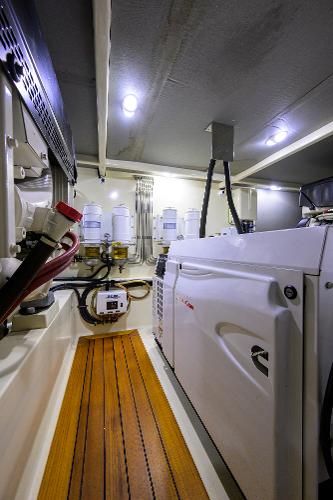

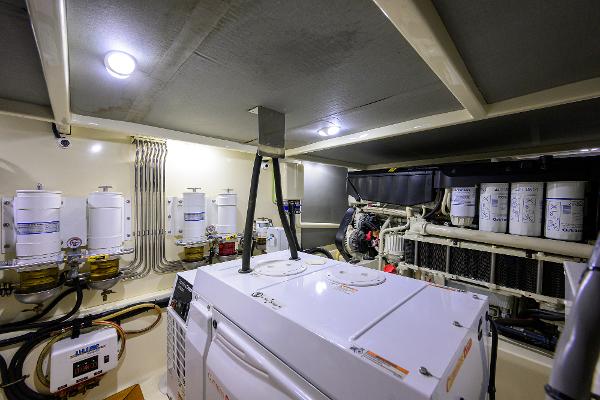

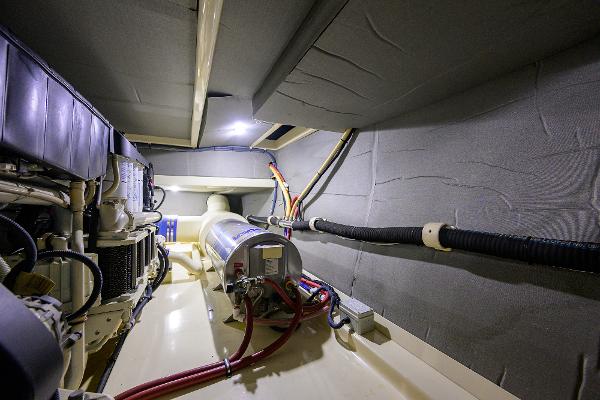

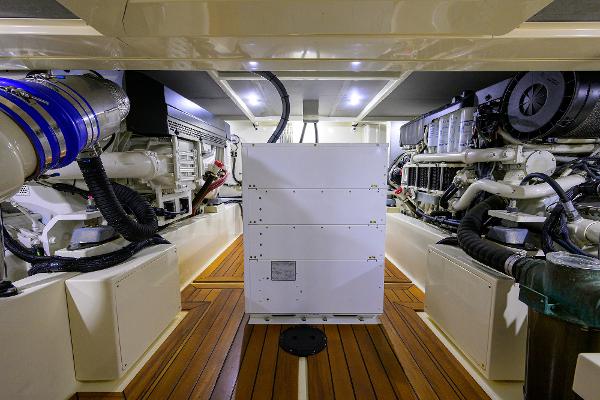

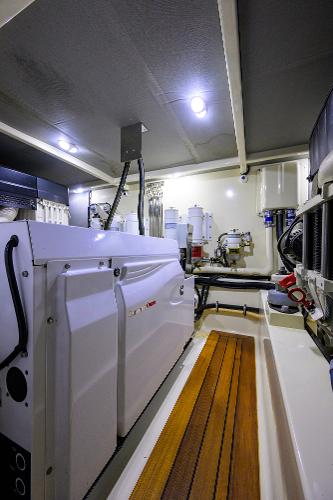

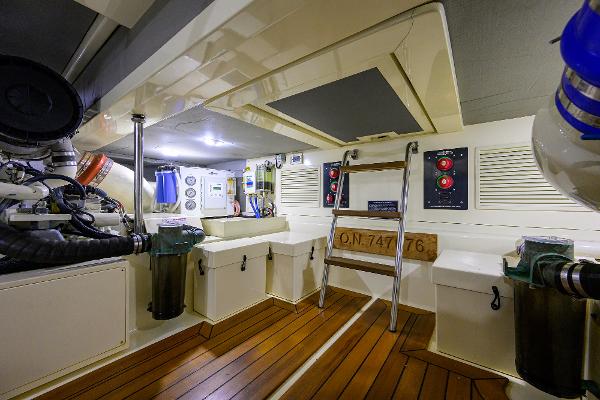

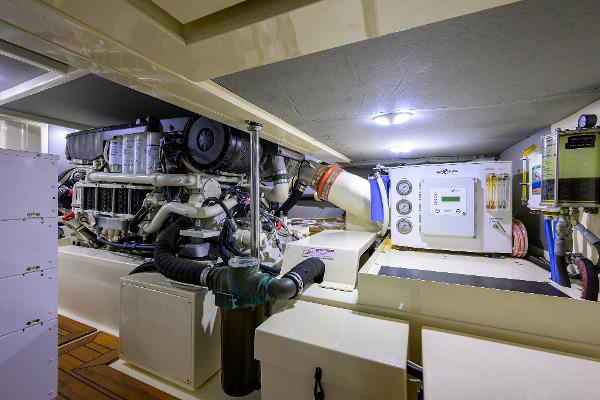

Engine & Mechanical Equipment

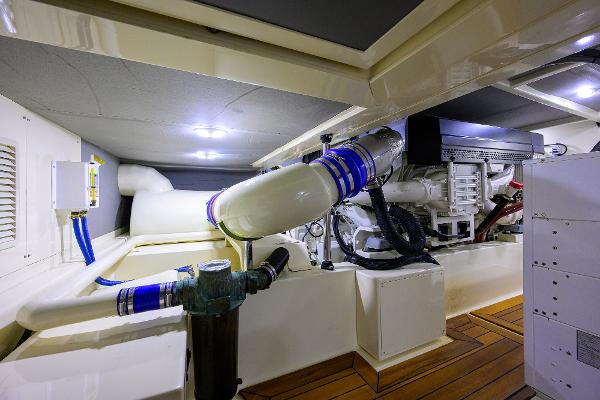

Twin Volvo D13 900hp Shaft Drive Twin Disc EC300 Throttle Controls, Upgrade SeaTorque lubricated Shafting System, Upgrade Bow thruster, Sleipner Side-Power SEP 210/250TDC, Upgrade Stern Thruster, Sleipner Side-Power SEP 175/250T, Upgrade Rope Cutter, Upgrade Acoustic engine sound shield Air conditioning units: (2) 24,000 BTU self-contained Anti-vibration mounts on engine supports Bilge Pump: Automatic 100L/min with manual override (4) Composite skin fittings & ball valves, double clamped on all through hull fittings on or below the waterline Deck fill, port and stbd Electric trim tabs with indicators Engine Filters, Dual Racor, Upgrade Fireboy Fire Extinguishing System Fuel Polishing System, Racor #P510 MAM, Upgrade Fuel tank, integral composite with gauge at helm Internal seawater strainers for main engines, generator and air conditioning intakes Fuel shut off valves Holding tank with macerator and dockside discharge Black water holding tank with additional 100-liters, Upgrade Horn, electric Pressurized fresh water system Racor fuel/water separator Hot water heater, 90L Watermaker, Dometic #SX1800Z, Upgrade Water Filter System, Pura UV20-3 (for entire freshwater system), Upgrade Fresh Water Regulator Fresh Water Pump with quick connect, back-up, Upgrade Salt Water Pump with quick connect, Upgrade

Electrical Equipment

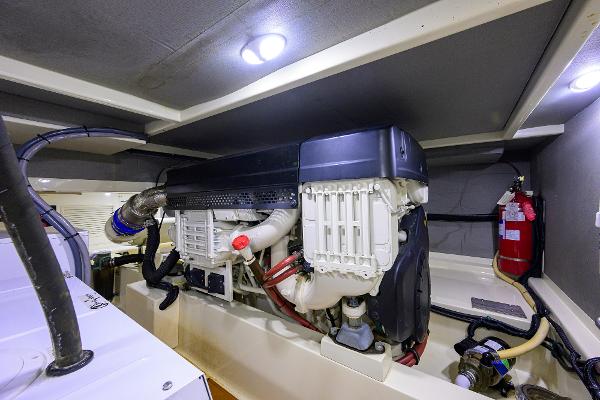

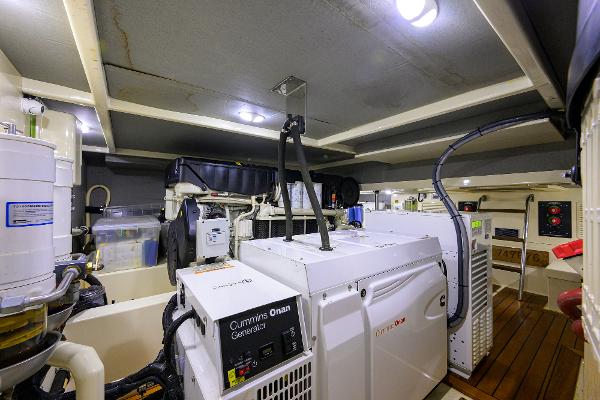

Electrical System: 120V/240V, 60Hz, 24V DC, 50-amp Vimar Outlets & Switches Additional USB Outlets, (1) at Lower Helm and (1) at Flybridge, Upgrade Additional AC Outlets, (1) above fridge in galley, (1) at engine room and (1) in Utility Room, Upgrade Additional AC Outlet, (1) 110V in stbd cockpit locker, Upgrade AC outlets ACER LED Spotlight, Upgrade Cablemaster 80-ft. with remote, Upgrade DC Power Switch for Docking Device, Upgrade Helm Dual Lights, (2) Foresti & Suardi 5030 Spot LED Lights (white-red) with 3-position (on-off-on) switch, Upgrade Rope Lighting under salon settees with separate switches, Upgrade Additional Floodlight, aft-facing on trailing edge of fixed awning to illuminate swim platform, Upgrade Underwater Lights, (2) Ocean LED Amphibian 6 “White”, Upgrade Isolation Boost Transformer, Charles, Upgrade Custom 24V and 240V 110V distribution panels with amp and volt meters House batteries: deep cycle AGM Engine start batteries: AGM Battery paralleling system for emergency engine starting Battery switches electronic isolators Genset start battery: AGM Shore power inlets: 1 x 50A/240V Generator, Onan 21.5kW, mounted on subframe and installed with gas water separator for noise reduction DC battery charger 30amp x 24V Inverter, 4,000 watt / charger 100amp x 24V Engine monitors including instrumentation, alarms & hour meters LED Navigational lights (international standard) Premium quality tinned stranded copper wiring

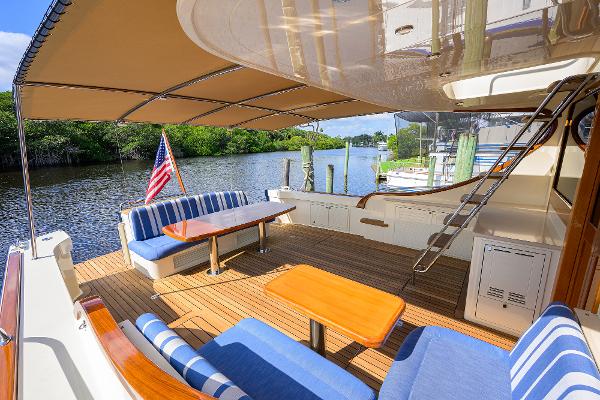

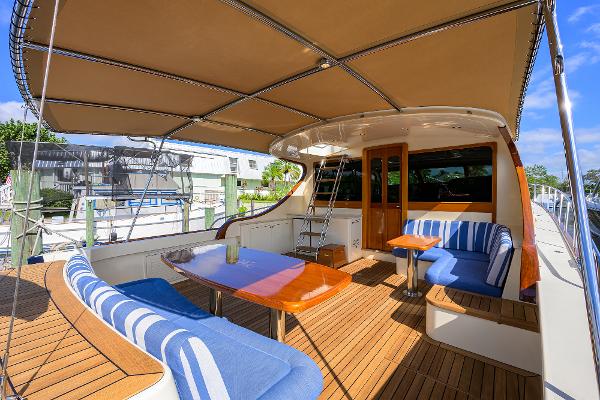

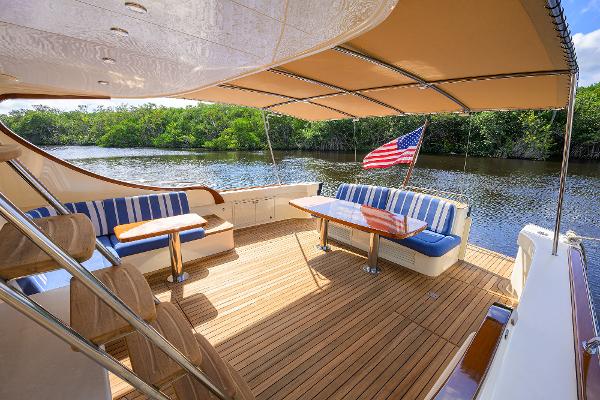

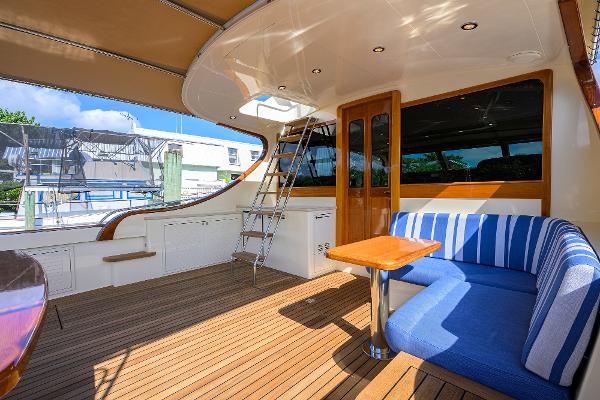

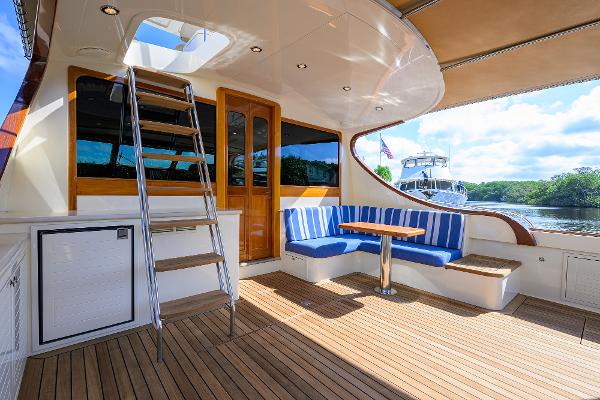

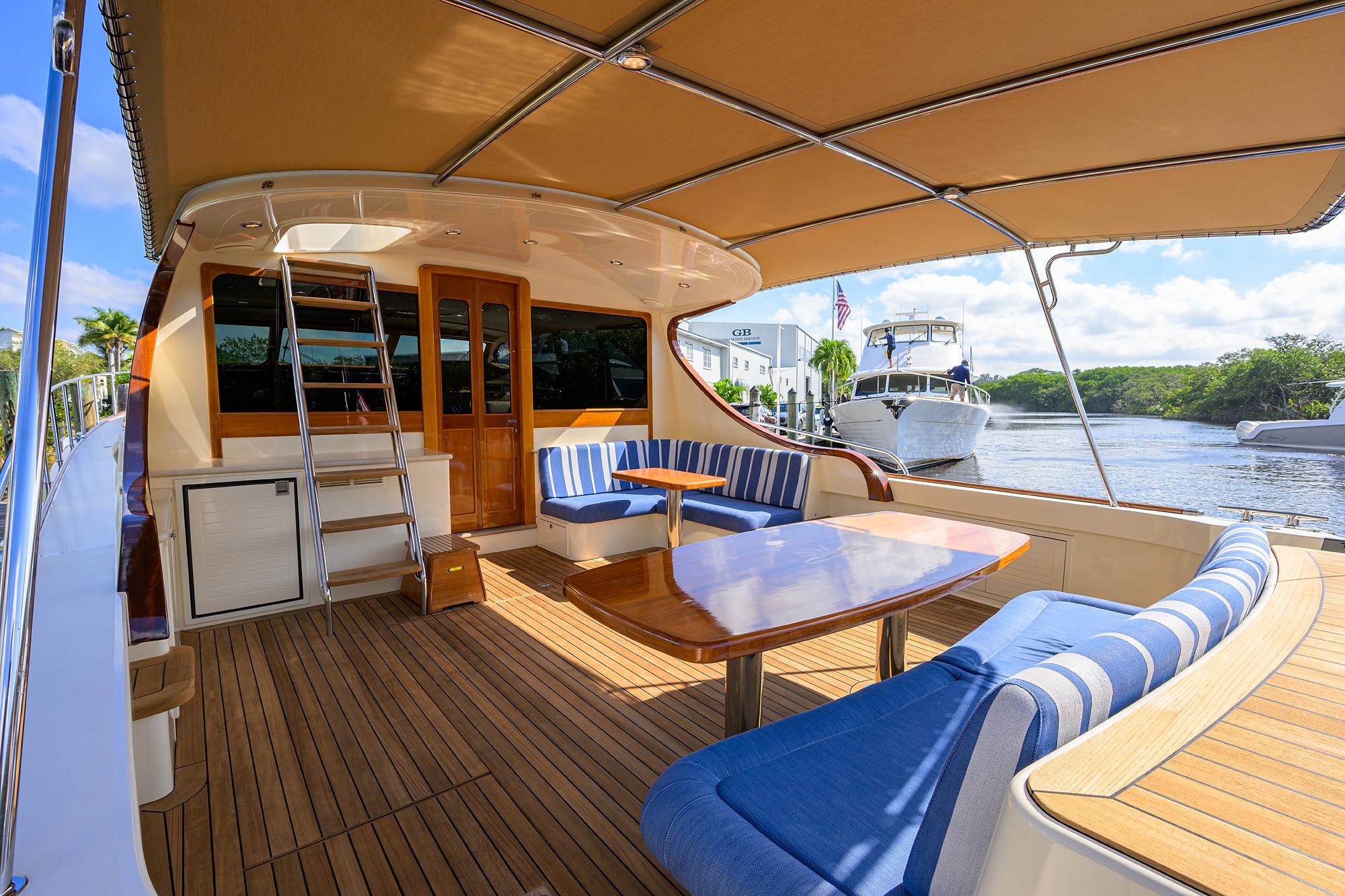

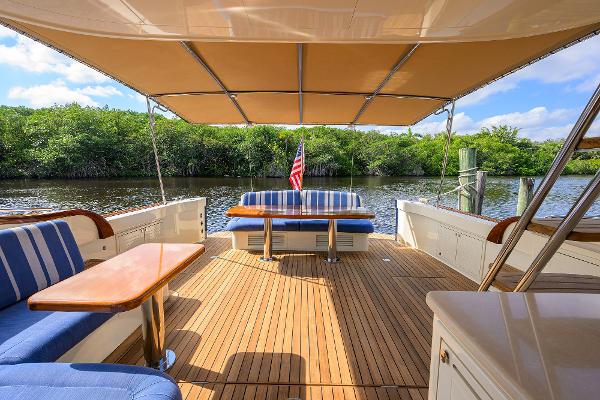

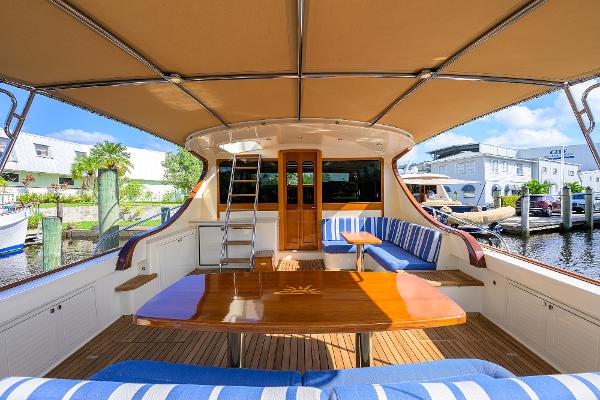

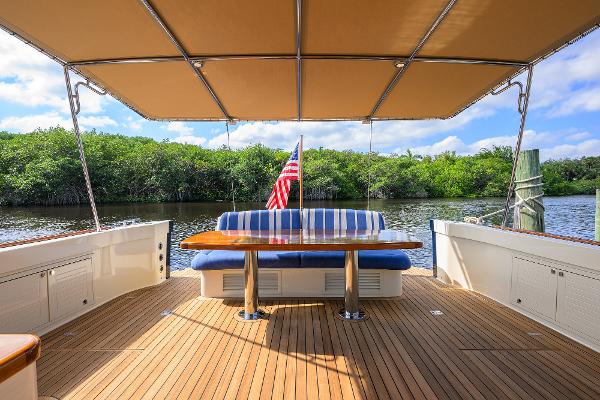

Aft Deck / Cockpit

(4) Deck Chairs, Upgrade (2) Gemlux Bluewater Rod Holders, Upgrade Awning, Fixed with Lights, Upgrade Sunshade, Removable, Drop-Down at Aft, attached to Fixed Awning, fabric “Mesh Textile”, Upgrade Cockpit courtesy lights Cockpit cover Cockpit shower with fresh hot/cold water Silestone countertop with AC/DC refrigerator & Vitrifrigo IM-Classic icemaker, Upgrade Cockpit port cabinet, slim along wall with step, Upgrade L-Settee at stbd with small teak table fwd, Upgrade Cockpit Table with Custom “Sun” Inlay finished in high gloss varnish, Upgrade Teak cockpit floor & teak swim platform Swim Platform SS Safety Rail with Removable BBQ Grill, Upgrade Cockpit Sunbrella canvas covers Window Covers, Textalene, Upgrade Salon Door Privacy Cover, Upgrade

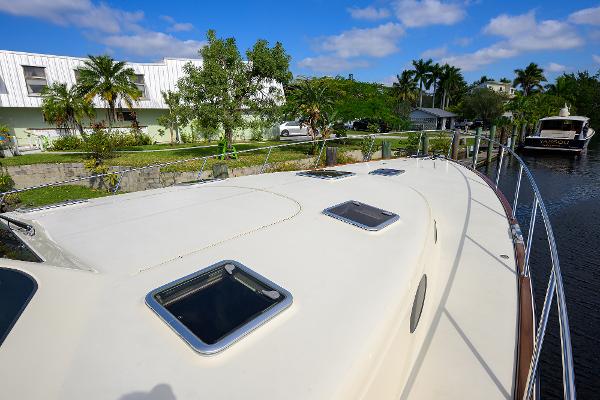

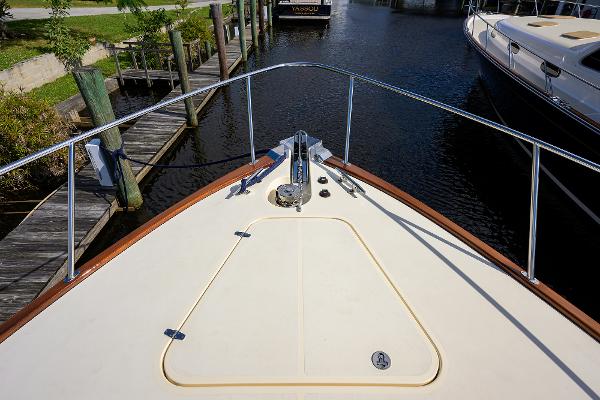

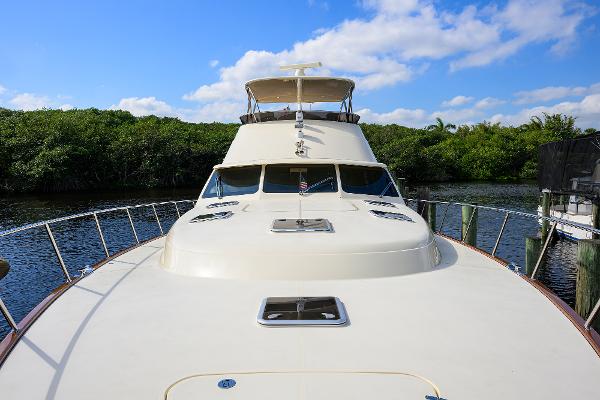

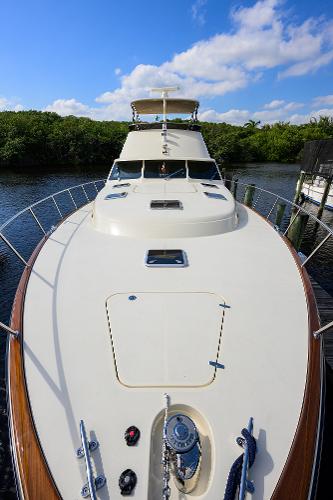

Exterior Equipment

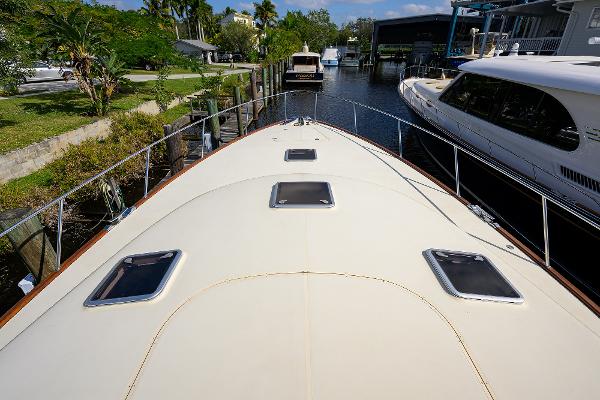

Stainless steel handrails Stainless steel anchor Electric anchor windlass with remote at helm Bow rail, fixed, Upgrade Bow roller, stainless steel - self launching Additional Skylight Hatch at foredeck, above fwd cabin berth, Upgrade Transom flag with varnished flagpole Dock lines (6) and fenders (3) with covers Extended teak swim platform Large anchor locker Fresh water washdown (bow) Gas struts on all deck hatches Hatch and windscreen covers Mooring cleats stainless steel—aft quarter, mid, & bow Tender garage with AB 10AL Inflatable 10’ 6” tender with NEW Yamaha 15hp outboard motor w/electric start, Upgrade Navigational mast

Safety Equipment

(2) fire extinguishers Throwable life ring Flare kit First aid kit (8) life jackets (1) boat hook

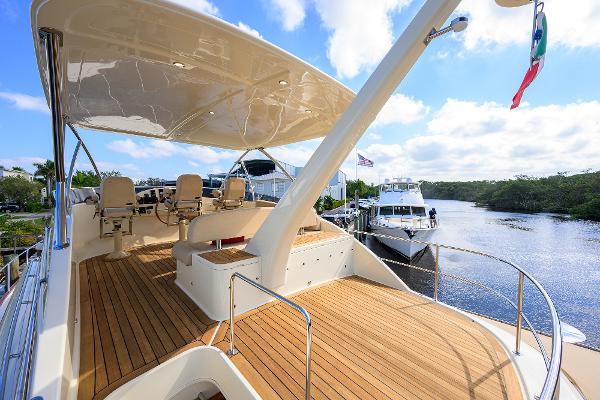

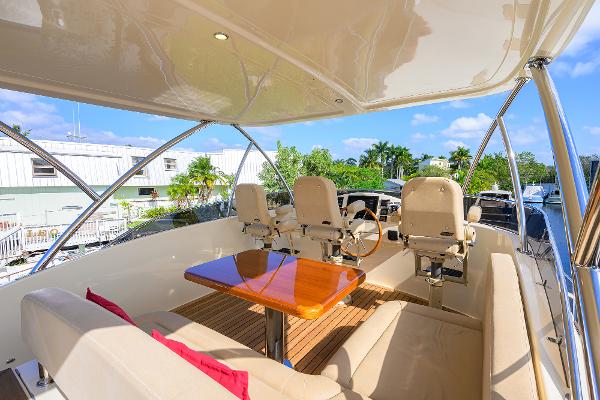

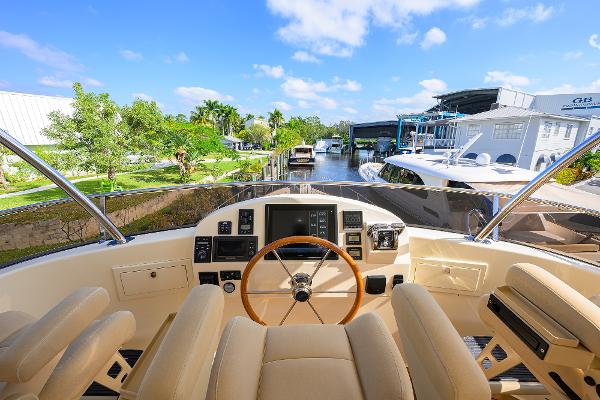

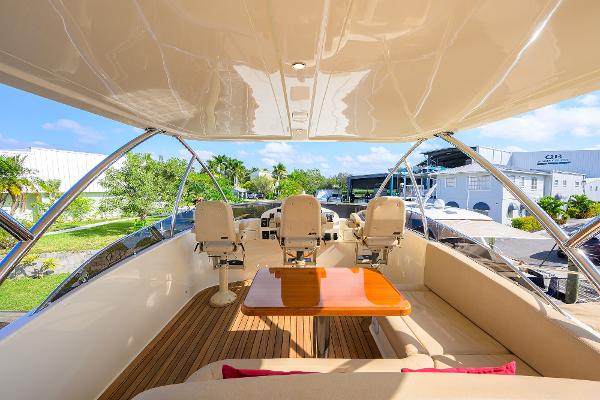

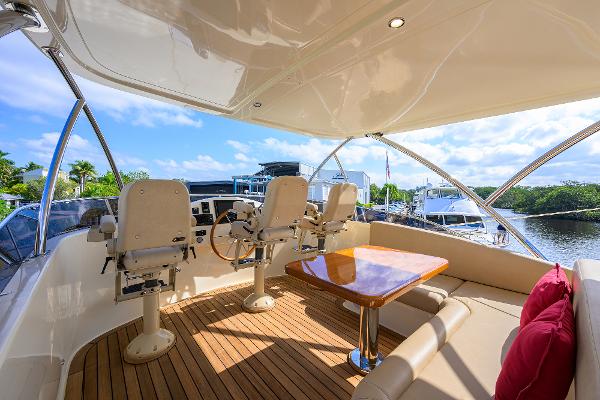

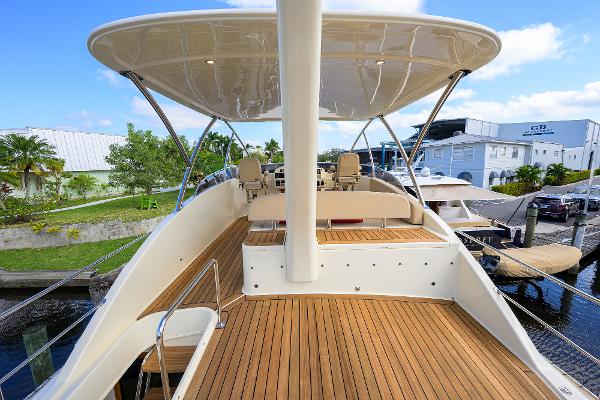

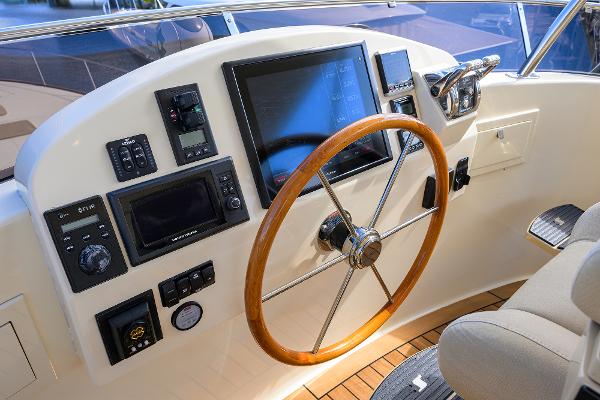

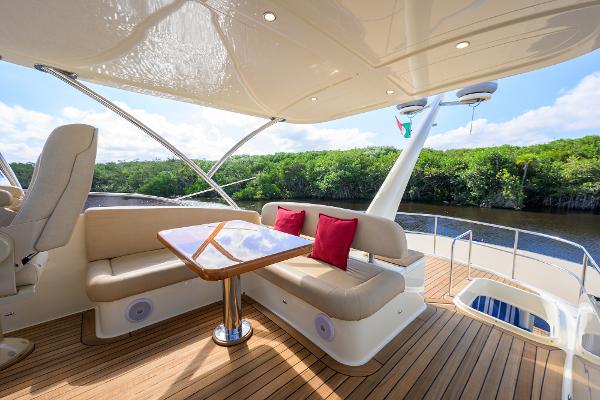

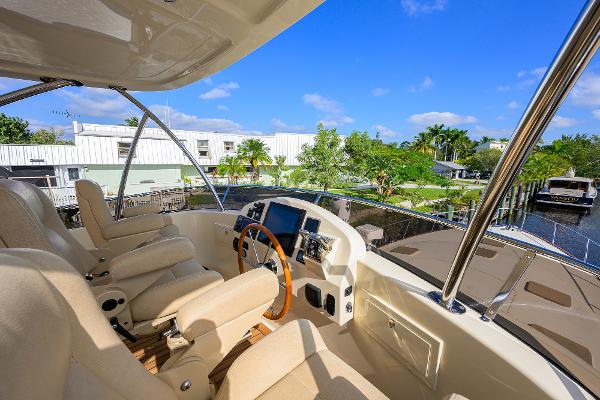

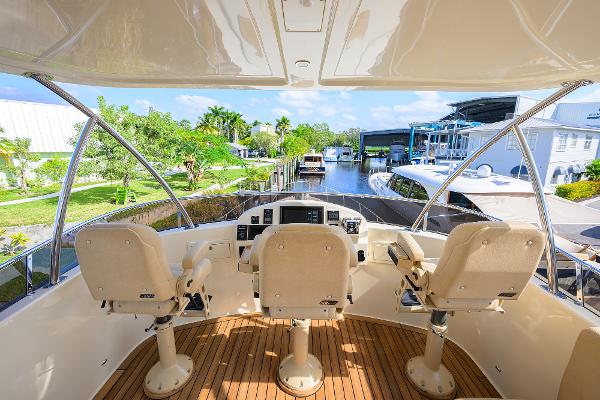

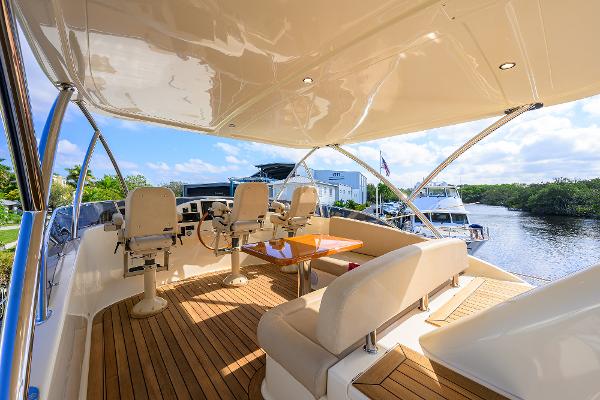

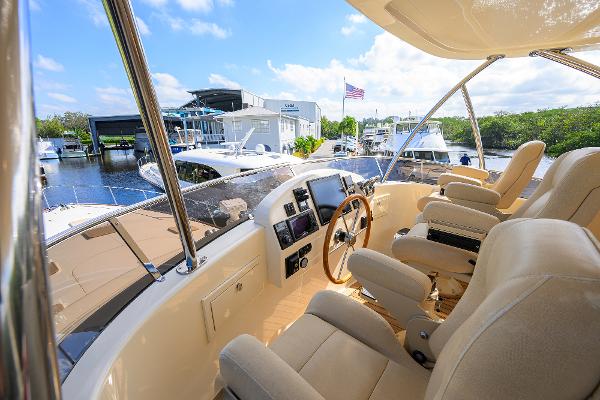

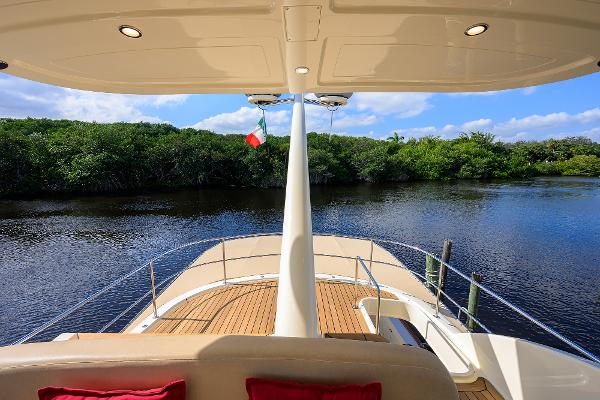

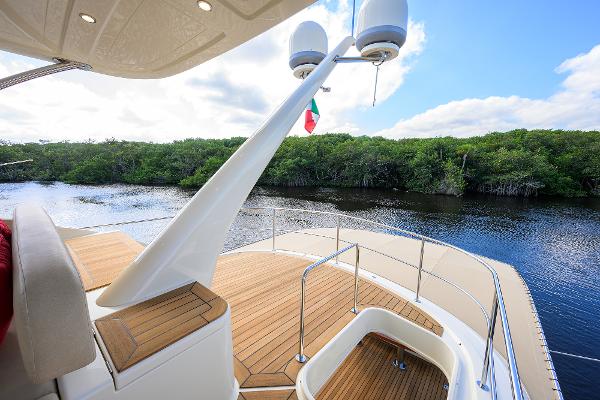

Flybridge

Flybridge fabrication, Upgrade Hardtop, NEW Upgrade Under helm storage with (2) doors, drawers, boxes, watertight, Upgrade Flybridge covers, color “Toast”, Upgrade STIDD Helmseats Slimline 500N, (3) total, Upgrade Flybridge Access Hatch Cover, Sunbrella Cover over FB opening with zipper in middle, color “Toast”, Upgrade Fabrics on STIDD Helmseats and Settees, finished in UltraFabrics High UV Brisa Distressed "Chamois", Upgrade Two (2) underseat storage lockers

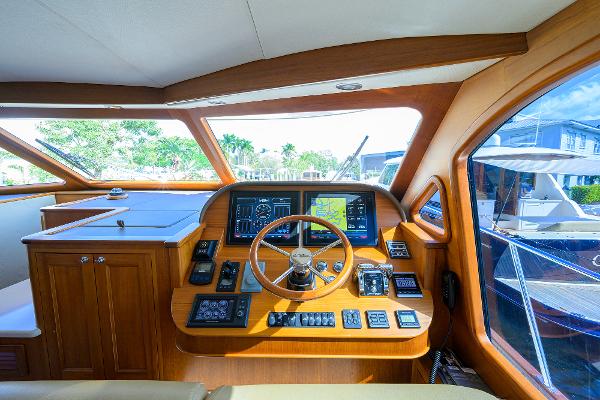

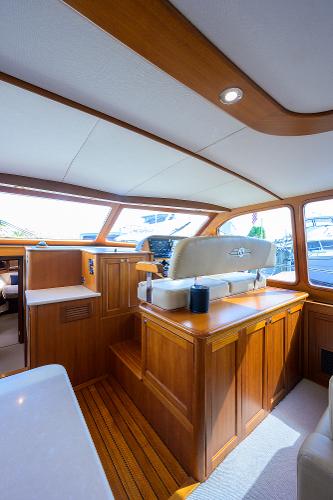

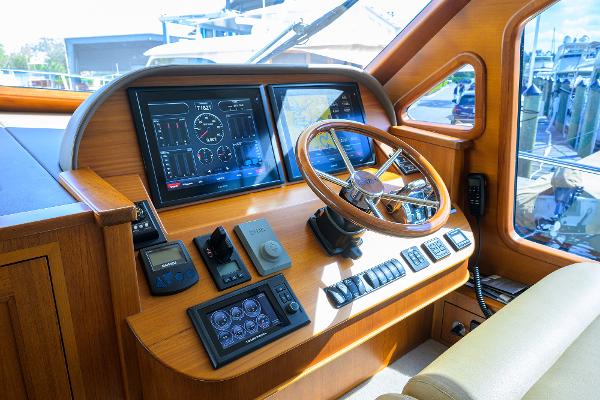

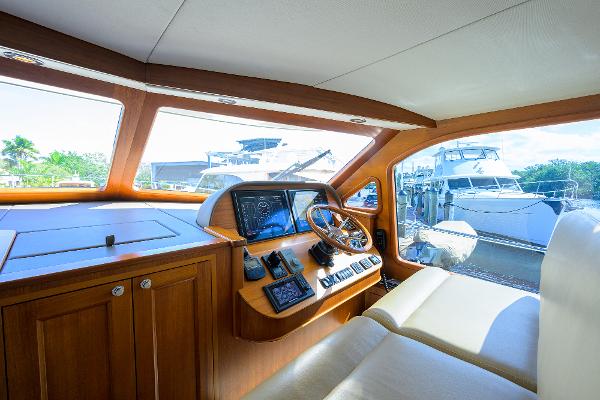

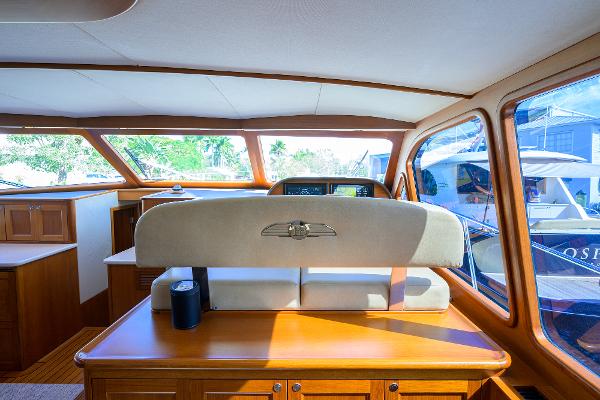

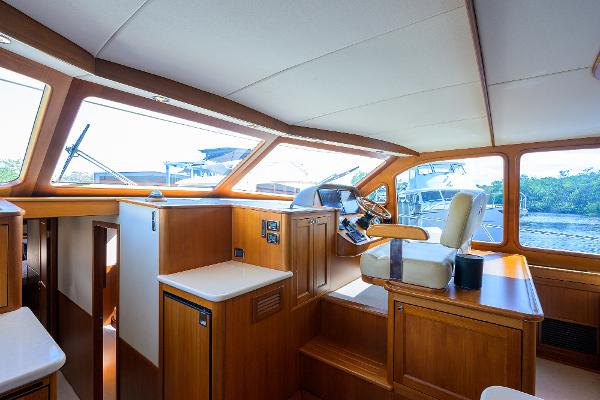

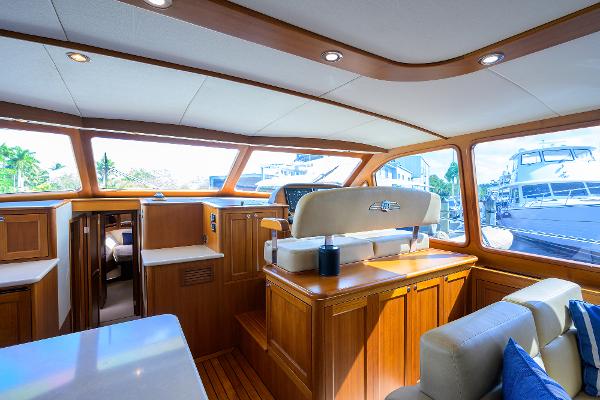

Lower Helm

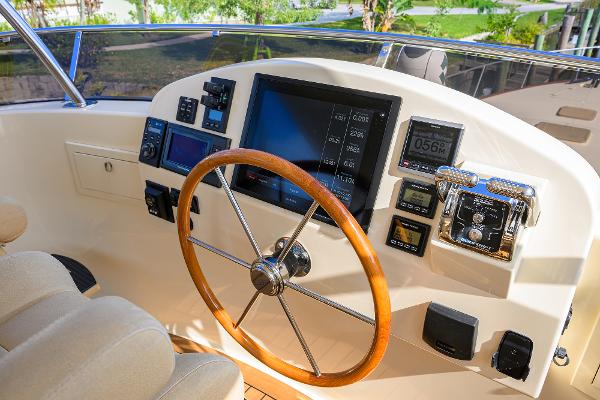

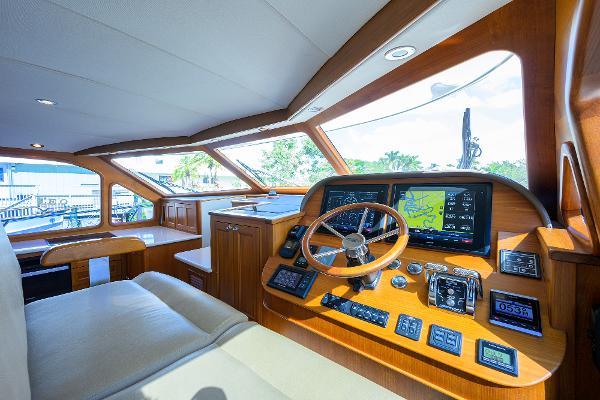

Ergonomically designed helm station, electronic instrument panel, teak steering wheel and custom helm seating Windscreen, clear tempered glass with (3) E-type pantograph wipers, 24V motors with synchronized variable speed control and fresh water washers (2) Garmin 8215 Screens at Lower Helm, Upgrade Storage Cabinet in Aft of helmseat, Upgrade

Electronics

Garmin Electronics Package

(3) 8215 Radar/Plotter, (2) at lower helm and (1) at flybridge GSD 24 Fishfinder/Sounder Garmin Autopilot VHF Radio Open Array Radar Garmin GHC Autopilot Remote Sirius Radio & Weather FLIR Camera, at Flybridge Brow, Upgrade Garmin WiFi Adaptor, Upgrade Wave WiFi

Entertainment

KVH M5 Satellite TV with (2) receivers & (2) remotes, Upgrade Sonos Full Entertainment System including Playbar, Subwoofer, Booster, Amplifier and Speakers, Upgrade Cockpit and saloon split speaker system Slimline LED 50” retractable TV in Salon 40” TV with DirecTV box in Master Stateroom 32” TV and run off Salon DirecTV box in VIP Guest Stateroom

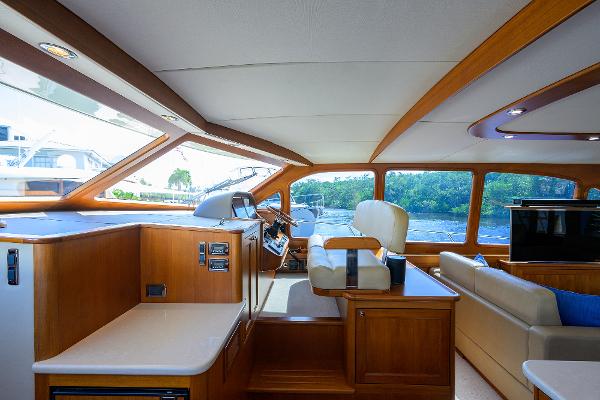

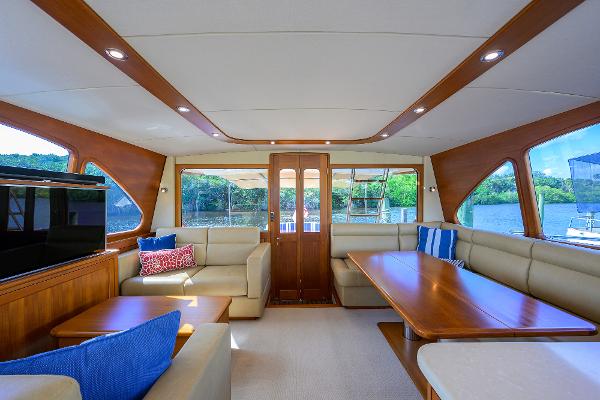

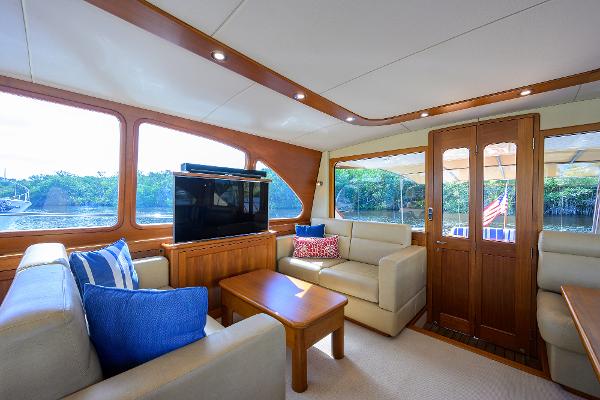

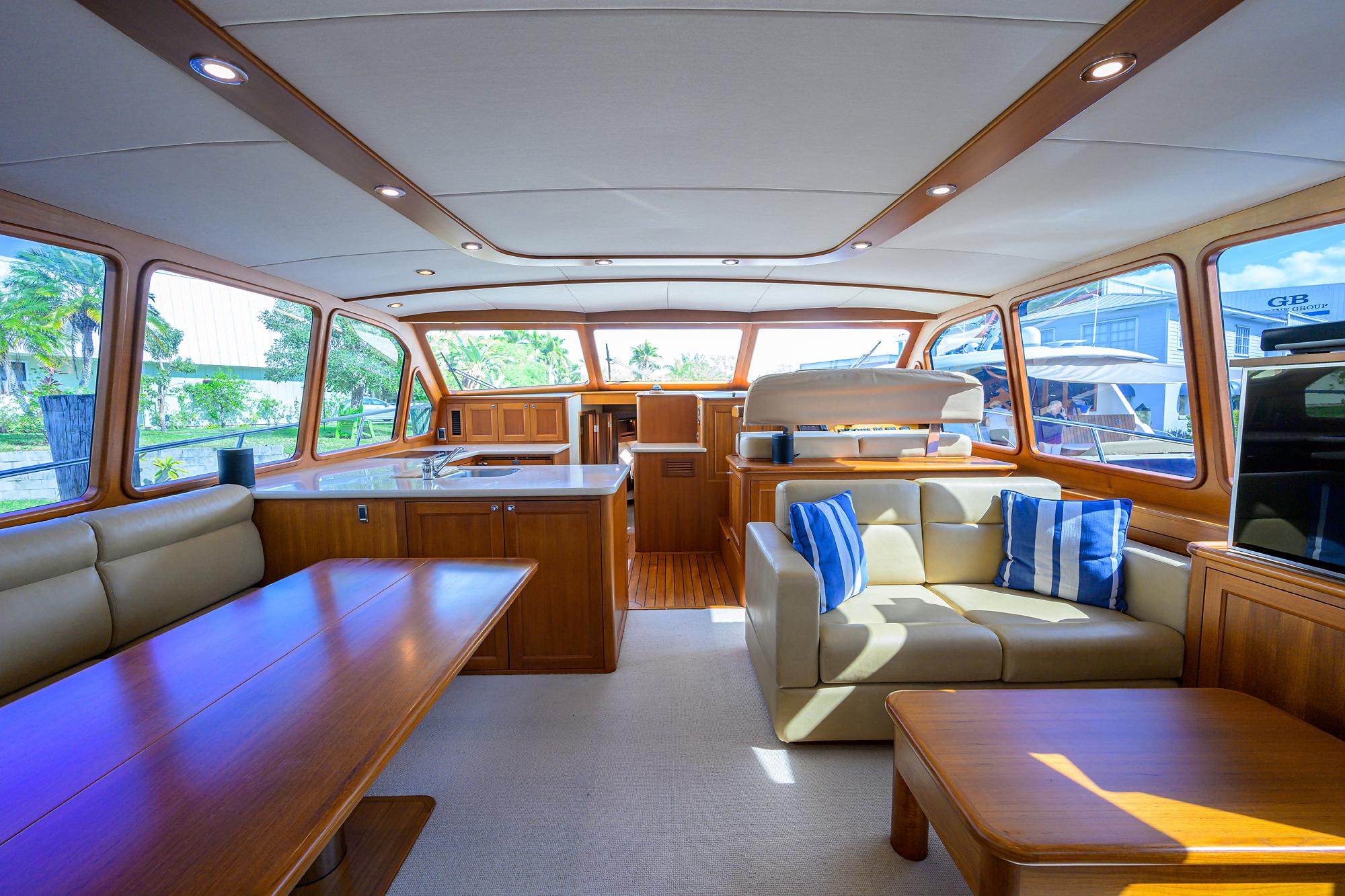

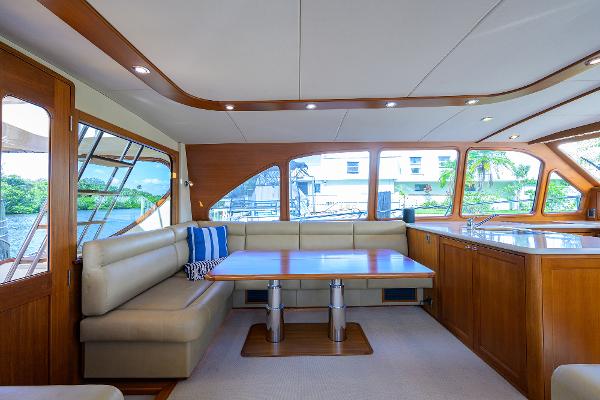

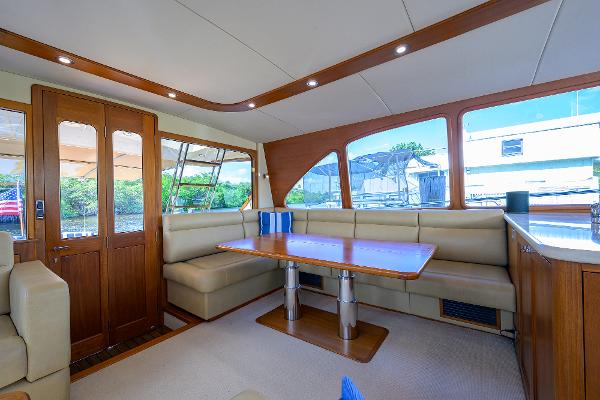

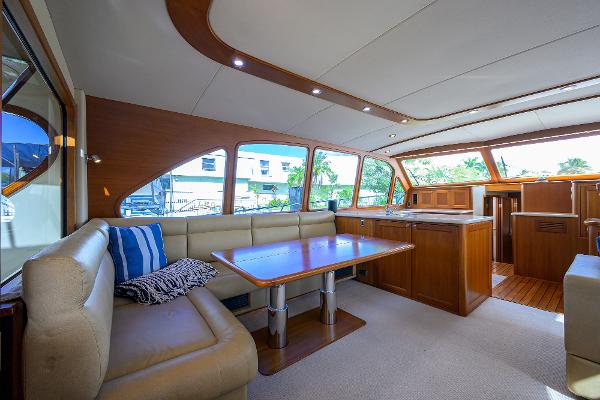

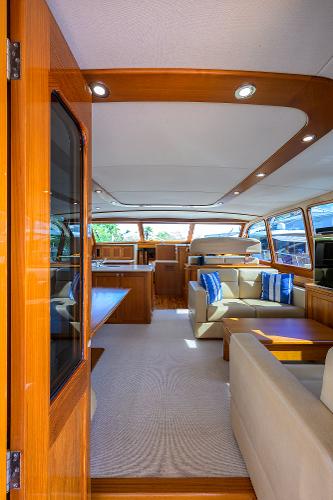

Salon

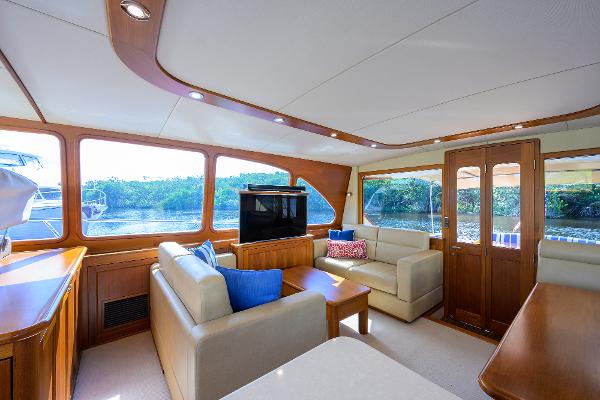

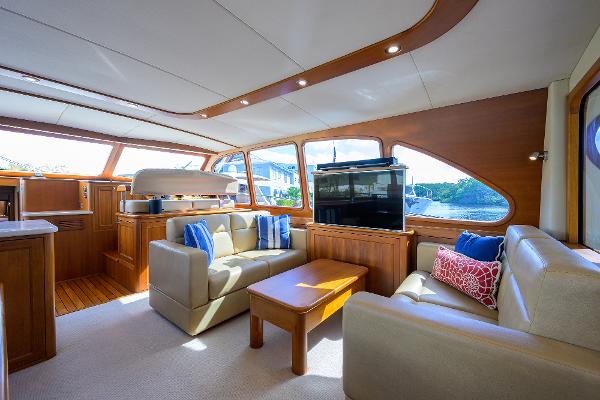

Custom carpeted salon with acoustic underlay Custom Window Curtains with hidden magnets inside window frames, Upgrade Custom Ultraleather upholstery Bottle Storage behind helmseat locker, stbd with teak fiddles at bottom, Upgrade Plates/Bowls Storage behind helmseat locker, stbd with stopper, Upgrade LED overhead lights Solid teak cabinetry with satin finish Storage lockers positive locking hardware Table, teak with high-gloss varnish, foldable, to stbd Coffee Table, teak with storage & high-gloss varnish, movable, to port Slimline LED 50” retractable TV on lift mechanism at stbd side between settees, Upgrade V-Kool on all windows, Upgrade

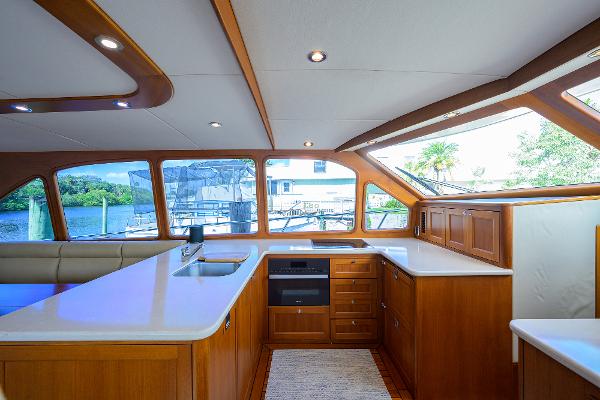

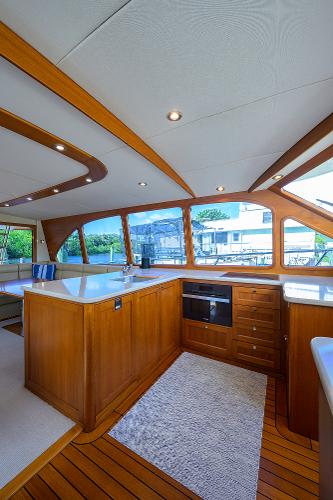

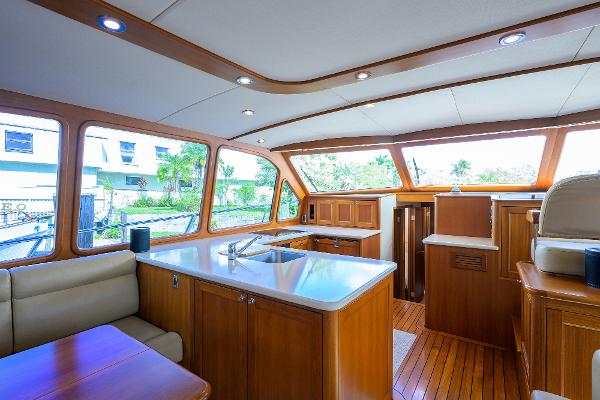

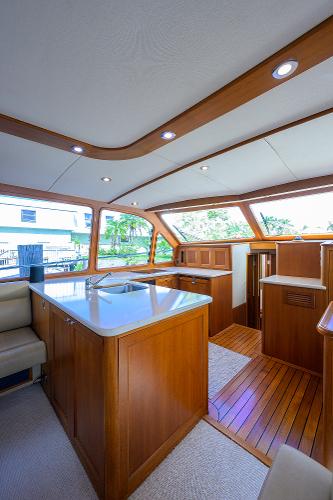

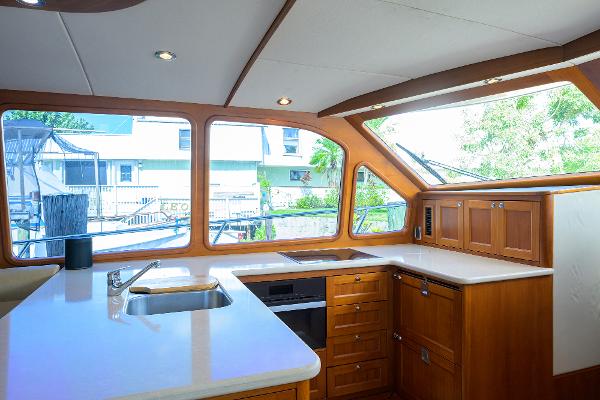

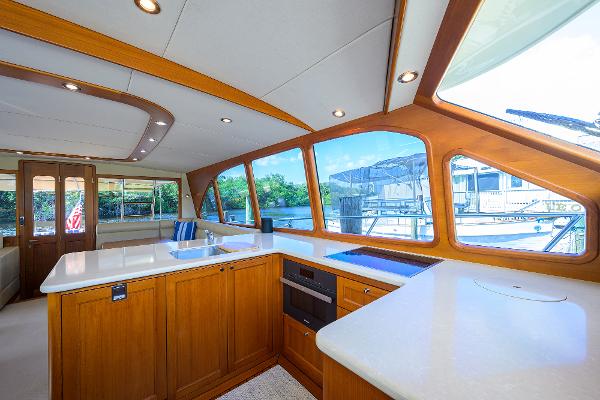

Galley, Up

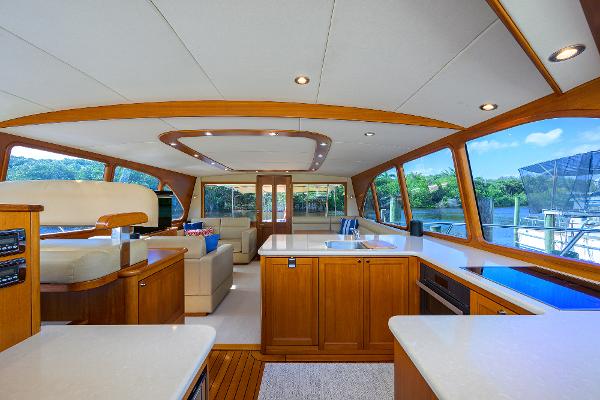

Miele 4-burner Induction cooktop, Upgrade Miele H6800 BM Speed Oven, Upgrade Stainless steel microwave/convection oven LED overhead lighting Isotherm CR130 Refrigerator, Upgrade Vitrifrigo, Fridge & Freezer Drawers DW180, Upgrade Under-bench recessed disposal bin with Silestone cover Solid Silestone bench top Sink: Abey Brisbane Undermount Double Sink, Upgrade Miele G4580 SCVi Dishwasher, Upgrade Plate rack with cupholders Water purification system

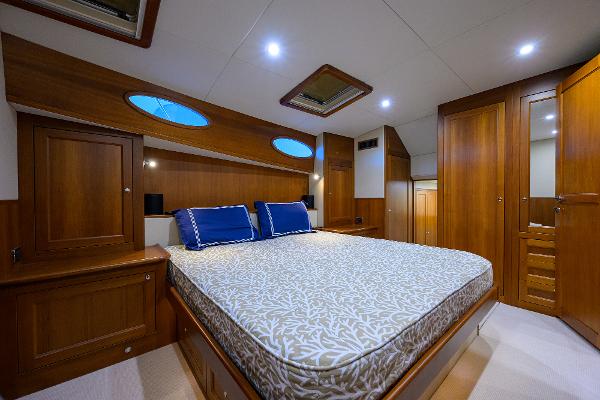

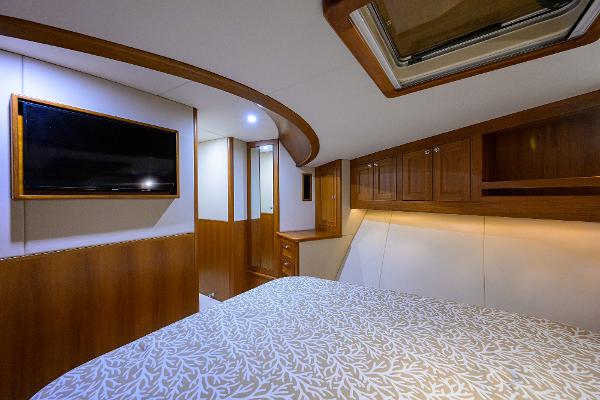

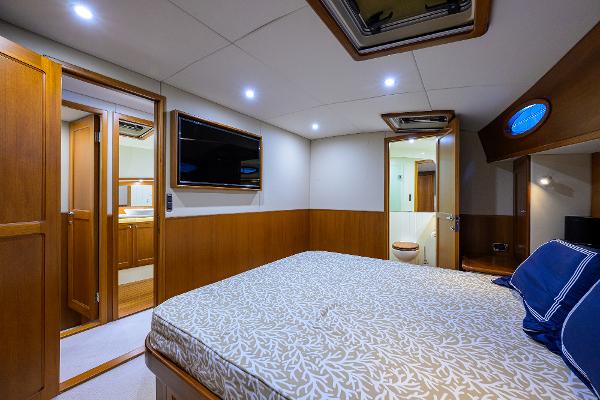

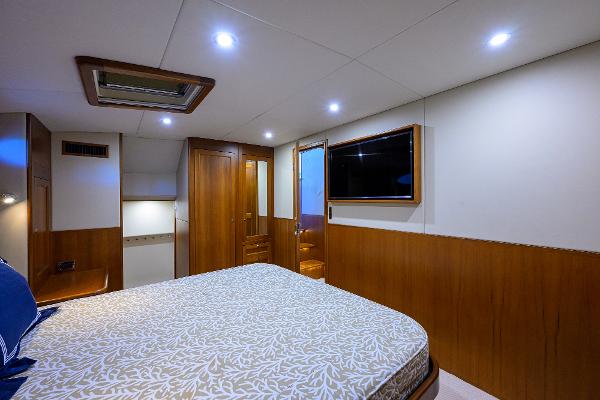

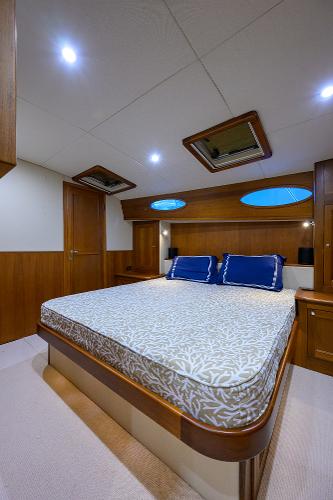

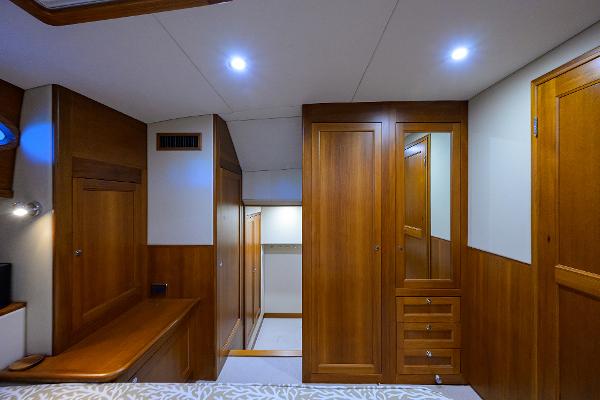

Master Stateroom, Aft

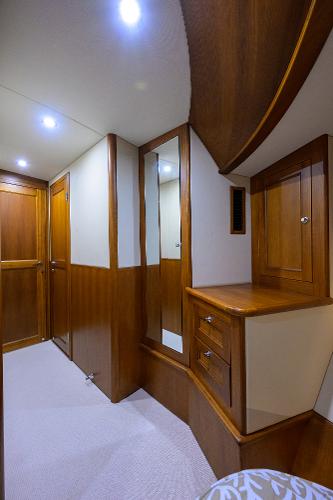

Custom island berth with foam mattress Custom carpet with acoustic underlay Walk-In Closet, Upgrade Hanging locker with storage and mirrors LED overhead lighting Premium quality custom upholstery Reading lights Solid teak cabinetry with satin finish (2) Overhead hatches with privacy blinds and screens Storage lockers with positive locking hardware Under berth storage drawers

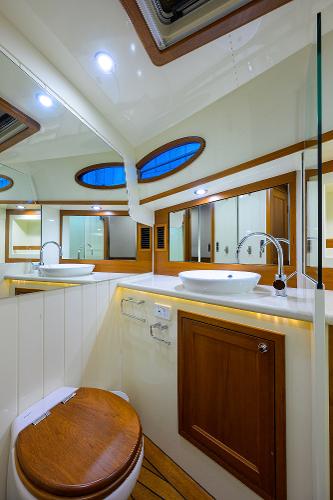

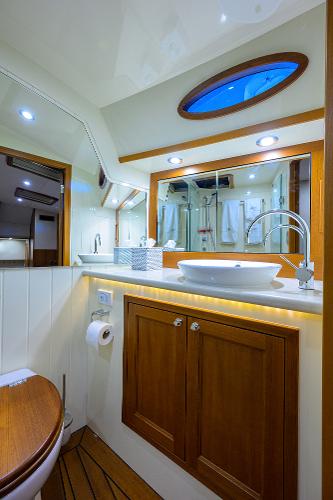

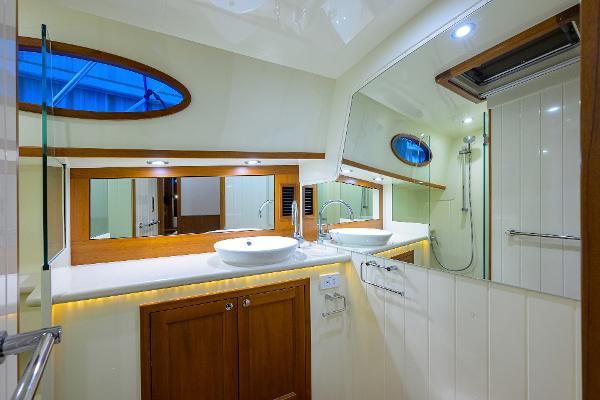

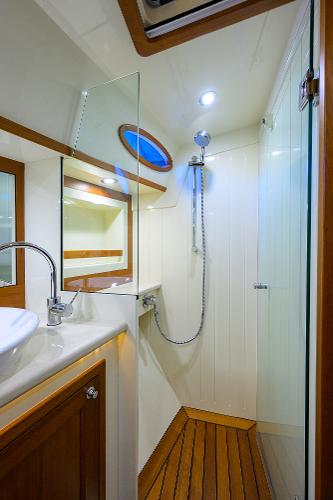

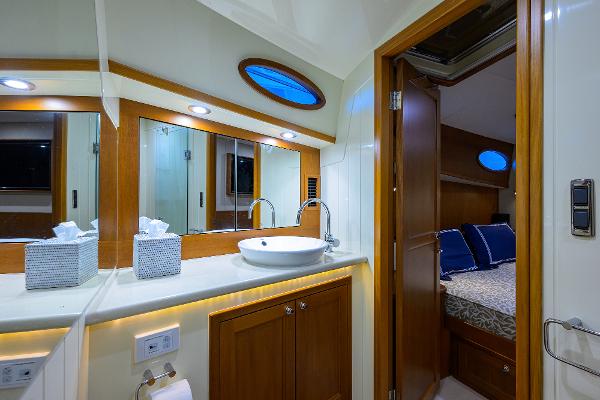

Master Head

En suite, fully enclosed comprising of a shower stall with glass partition, frameless glass door and teak flooring. Vanity cabinet incorporates a solid Silestone top, mirror, storage, custom Silestone above counter basin and designer faucet.

Macerating toilet with teak seat (1) Chrome towel rail

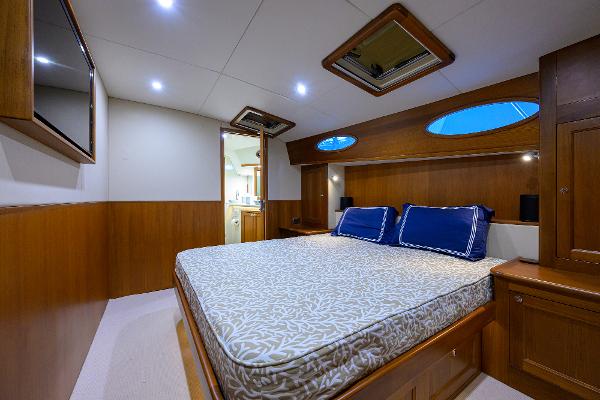

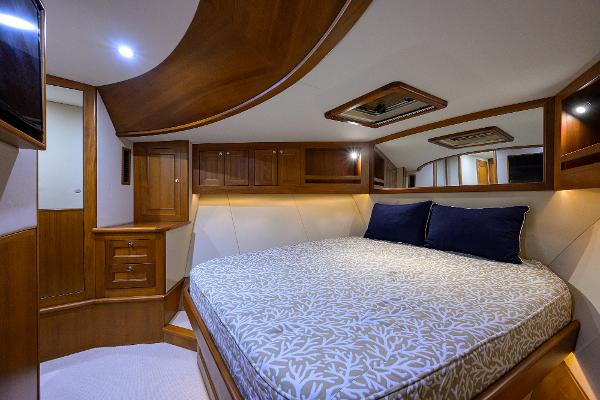

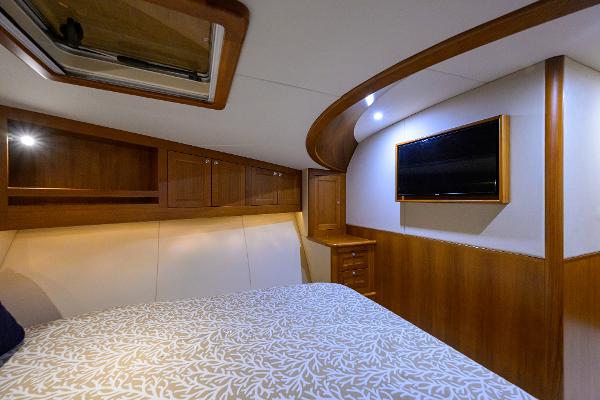

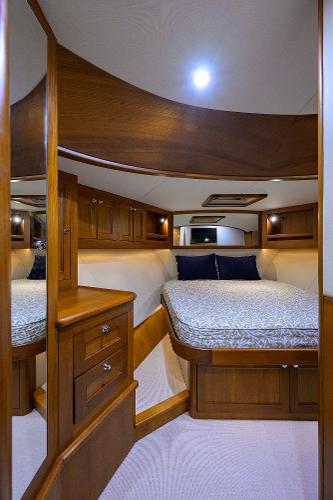

VIP Guest Stateroom

Berth Custom carpet with acoustic underlay Dressing cabinets and mirrors LED overhead lighting Premium quality custom upholstery Reading lights Custom portholes Solid teak cabinetry with satin finish (2) Square Lewmar overhead hatches Storage lockers with positive locking hardware

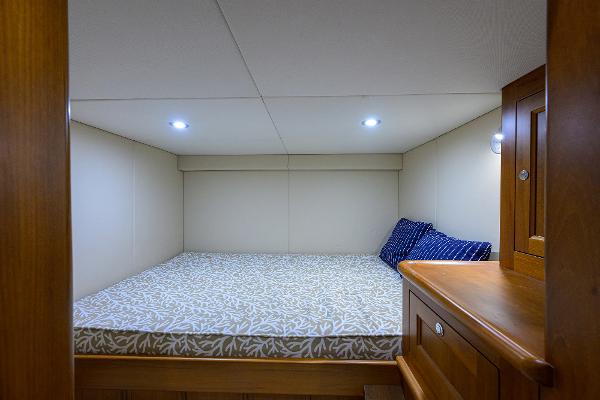

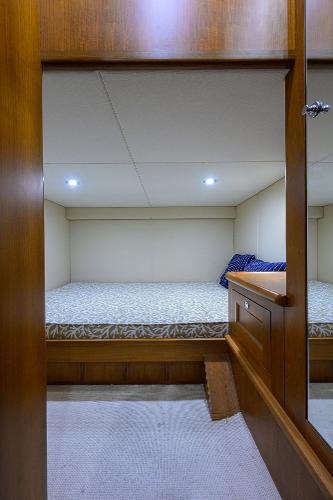

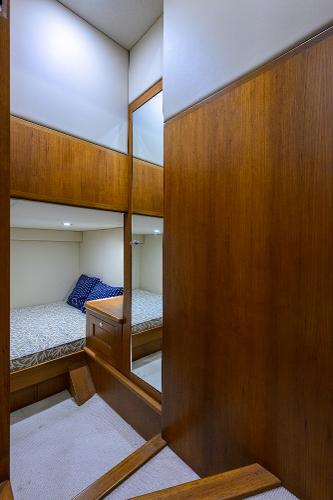

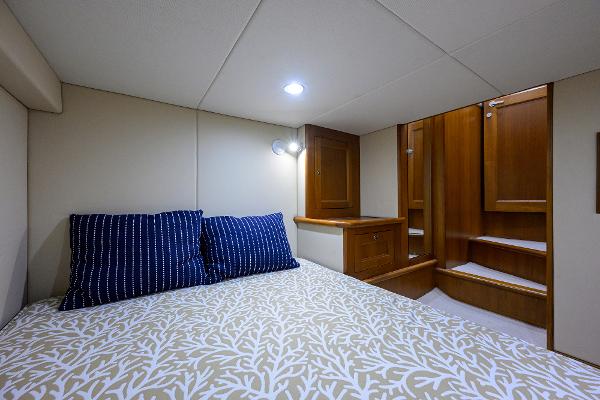

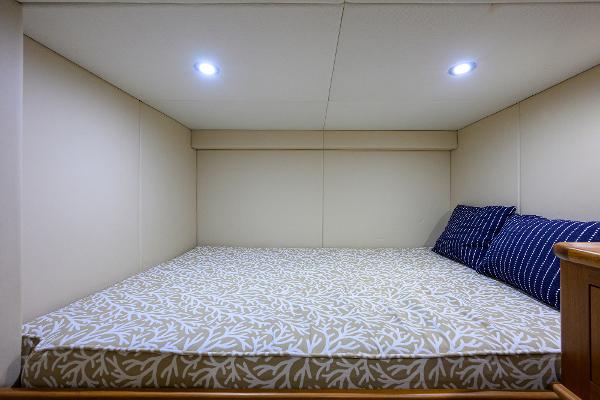

3rd Guest Stateroom

Double Berth Layout, Upgrade Dressing cabinets and mirrors Hanging Locker LED overhead lighting Premium quality custom upholstery Reading lights Custom portholes Solid teak cabinetry with satin finish Storage lockers with positive locking hardware

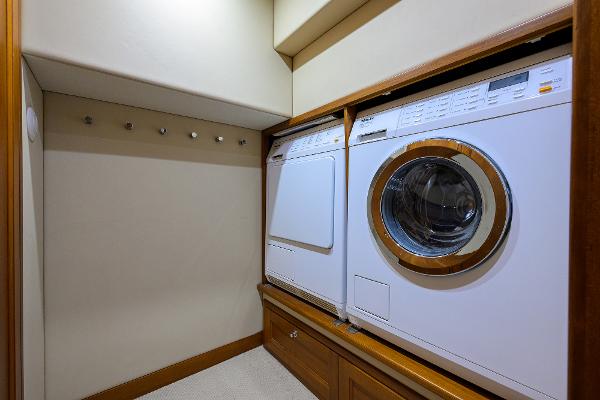

Utility Room

Additional AC outlet at port outboard for use of portable fridge, Upgrade Washer/Dryer, Miele, separate units, Upgrade Storage Cabinets, additional, Upgrade

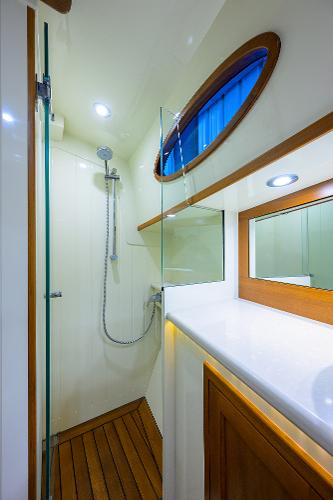

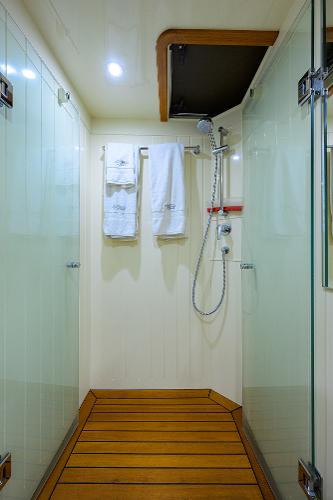

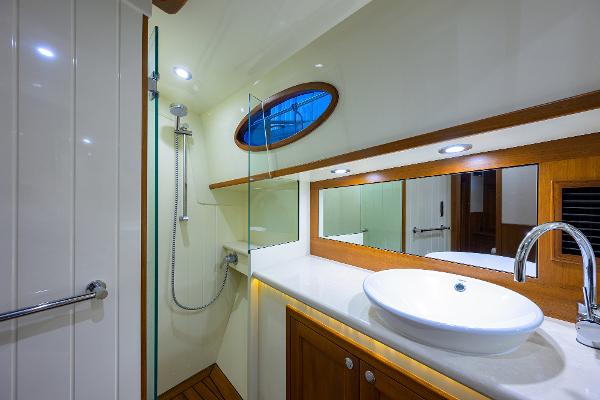

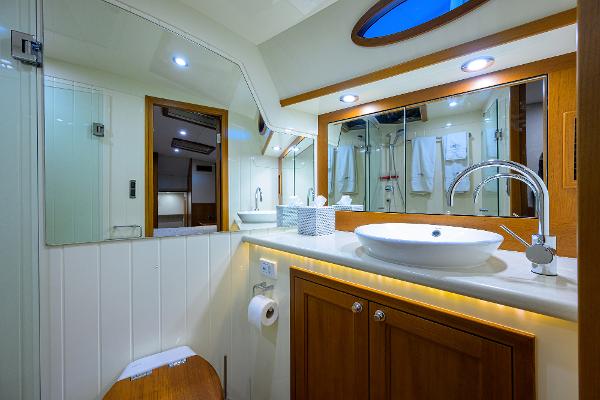

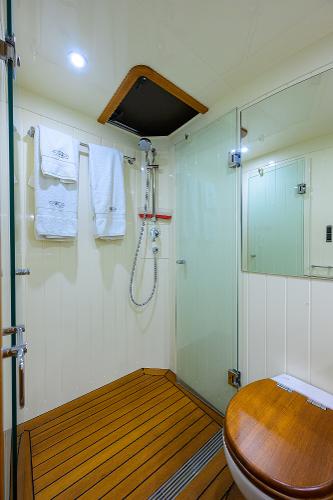

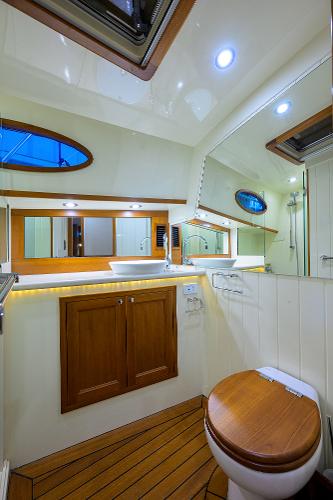

Guest Heads

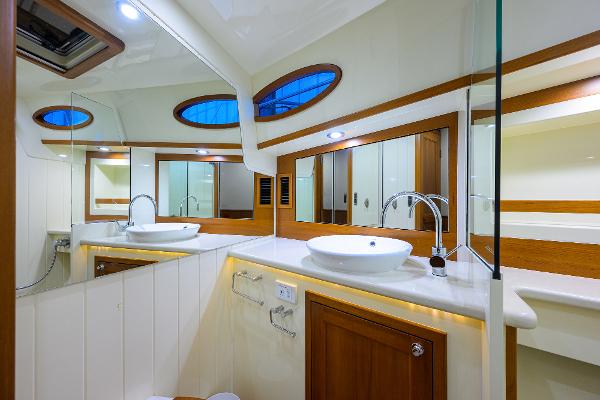

Fully enclosed, traditional in design with contemporary finishes incorporating a solid Silestone vanity top, stainless steel above counter basin and designer faucet.

Mirror LED overhead lighting Shower stall with glass partition, frameless glass door and automatic sump pump Teak flooring Solid teak cabinetry with satin finish Square Lewmar overhead tinted hatch Storage lockers positive locking hardware Macerating porcelain toilet with teak seat Toilet roll holder, accessories and wall-mounted brush holder (2) Towel rails, chrome

Interior Throughout

Fit-Out Teak, Upgrade Companionway & Master Stateroom Bulkheads finished in half teak & half fabric (on top), Upgrade Countertops, Silestone “Tigris Sand” in Galley, Heads and Cockpit Lockers, Upgrade Salon Settee & Helm Bench Seat finished in UltraFabrics High UV Brisa Distressed “Buckskin”, Upgrade Porthole Covers with Suction Cups, Upgrade

Exclusions

Owner’s personal belongings. A complete list will be provided upon request.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
