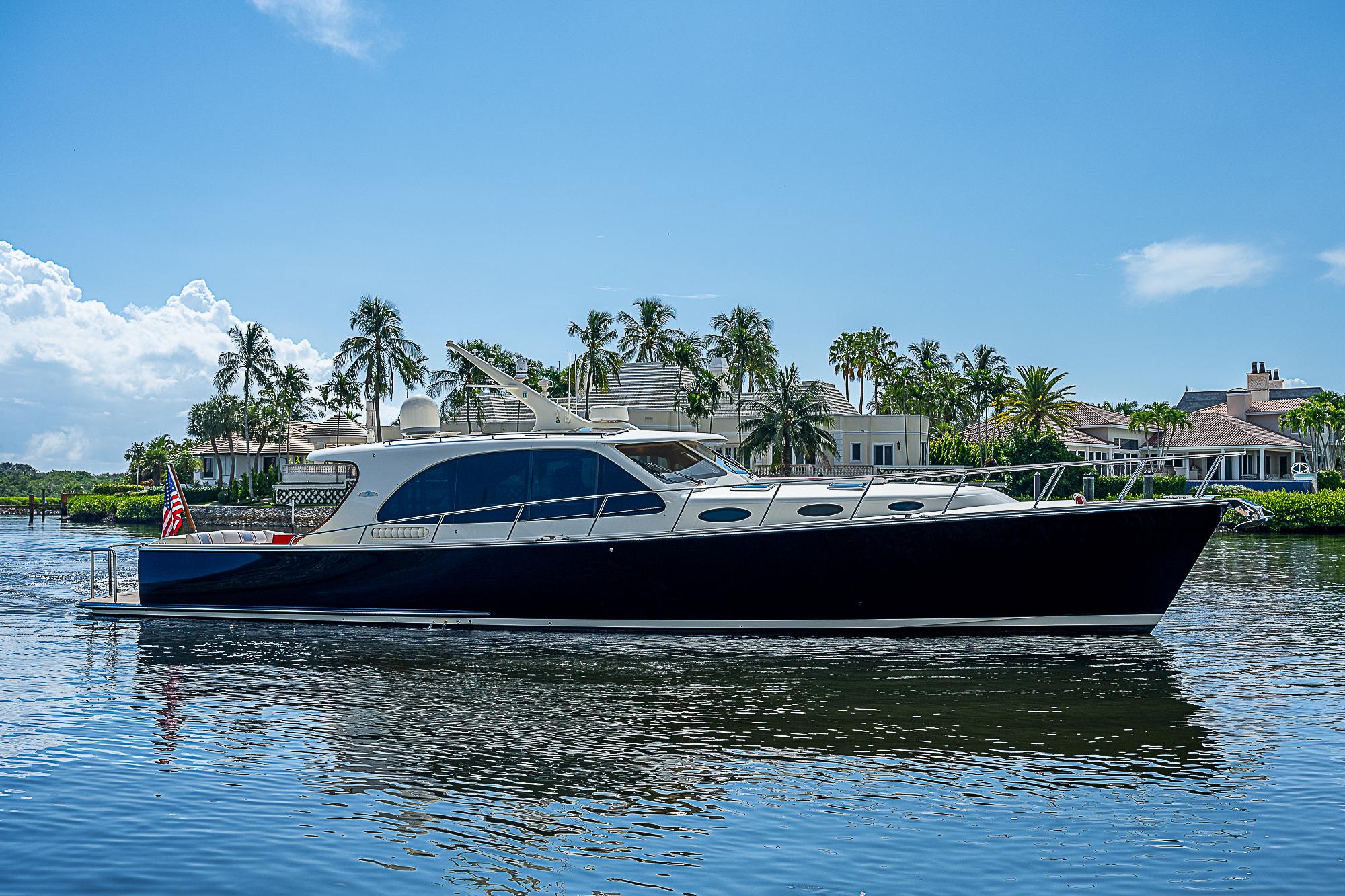

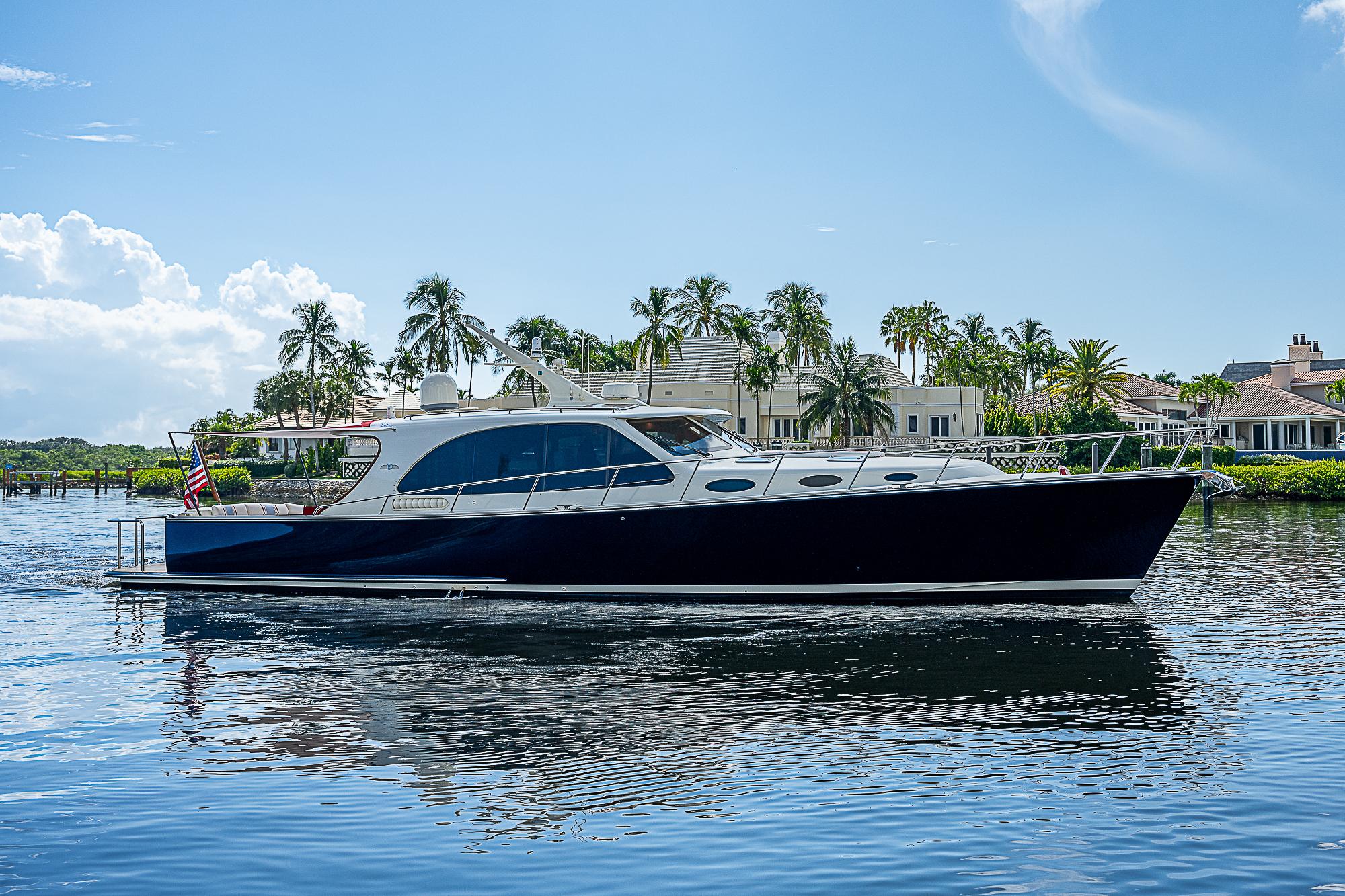

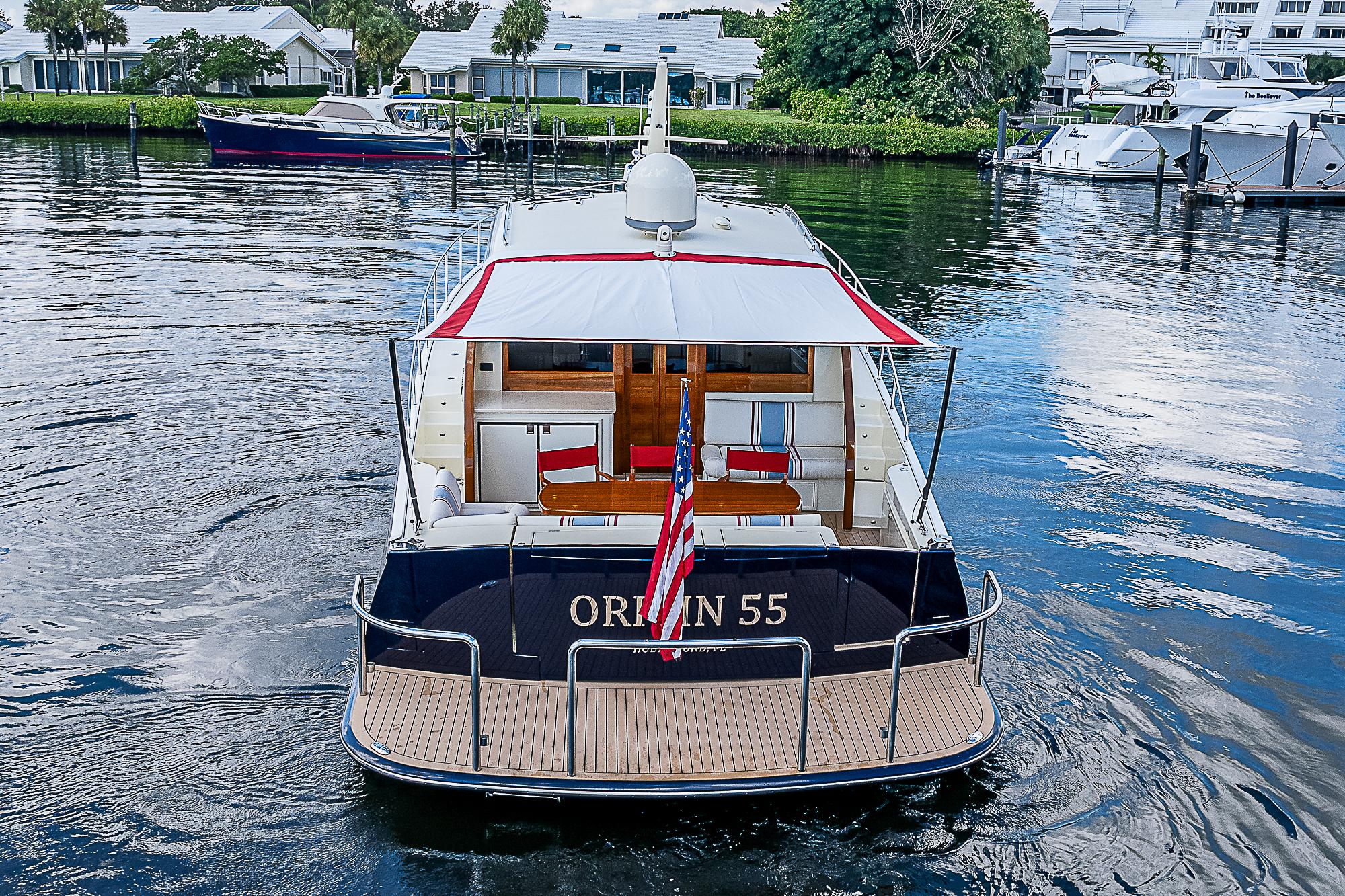

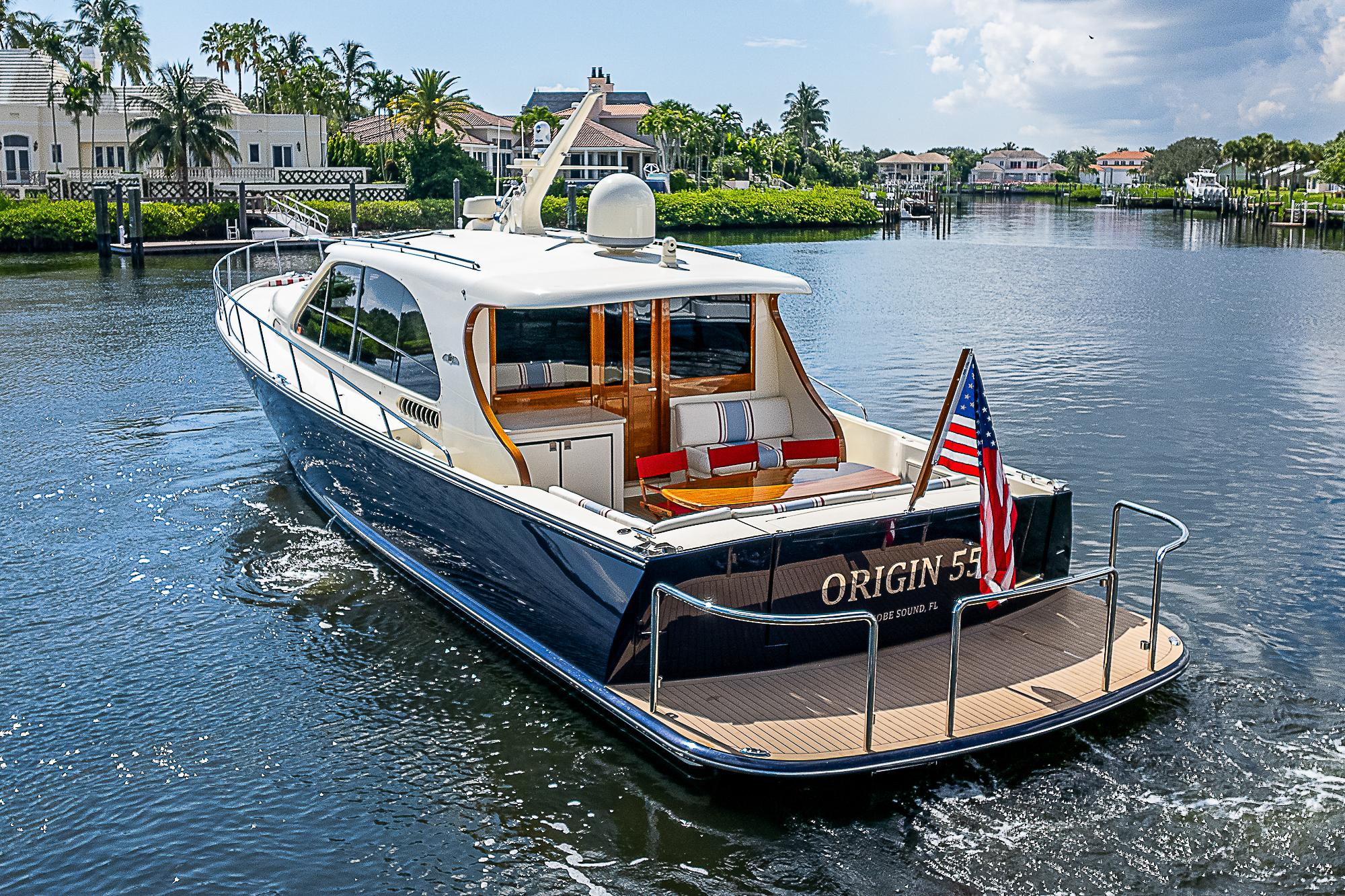

ORIGIN 55 Specifications

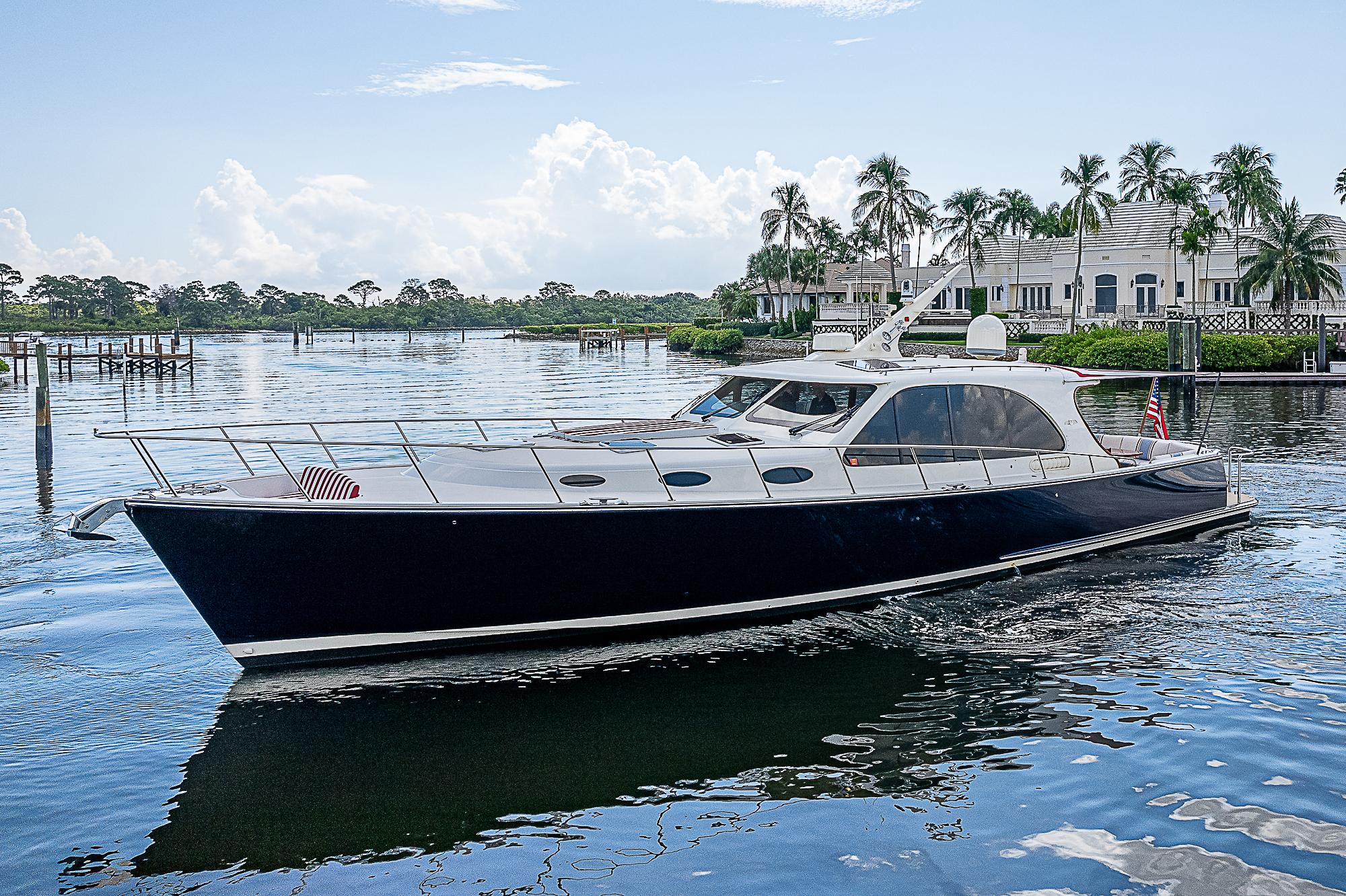

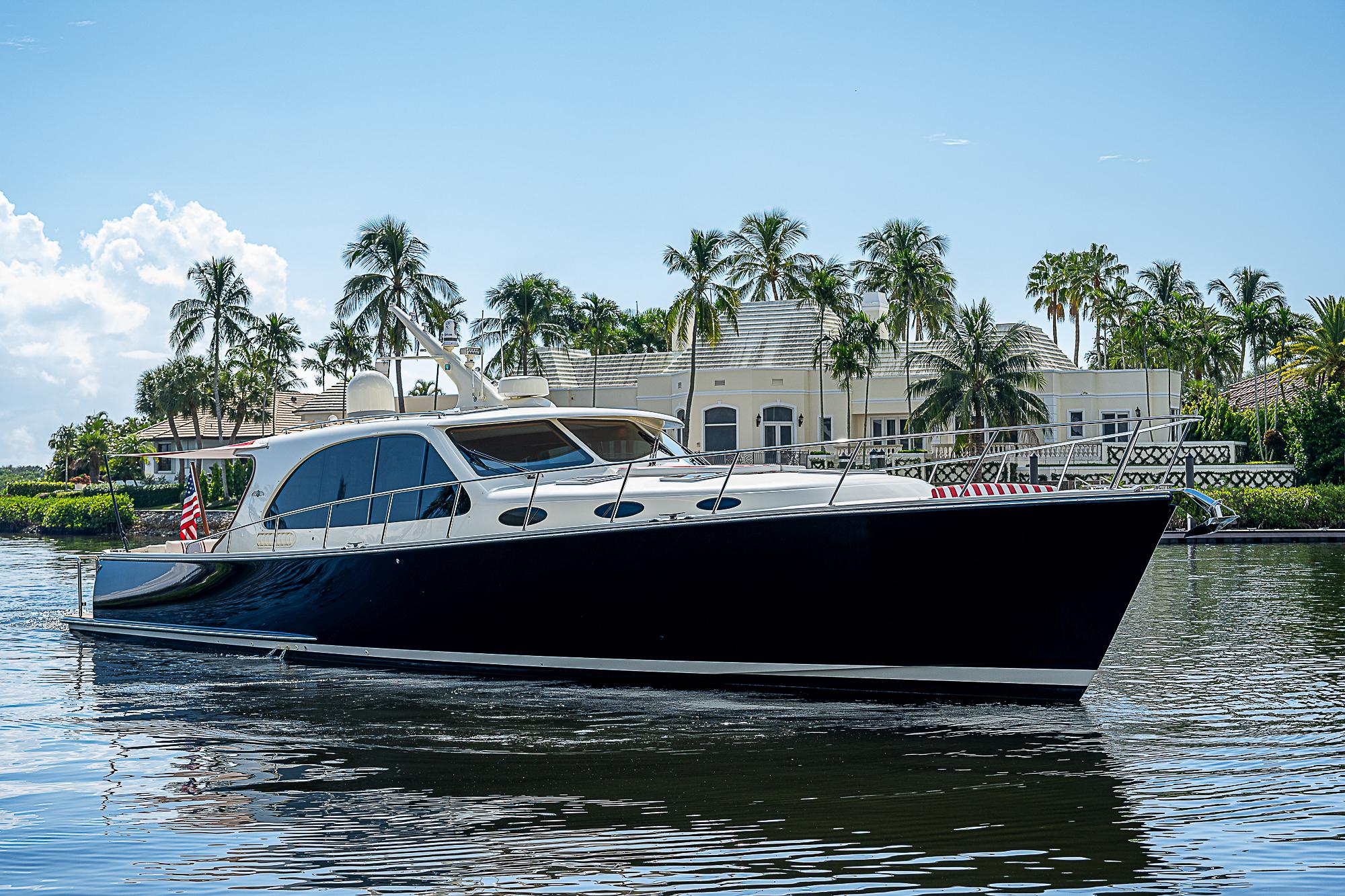

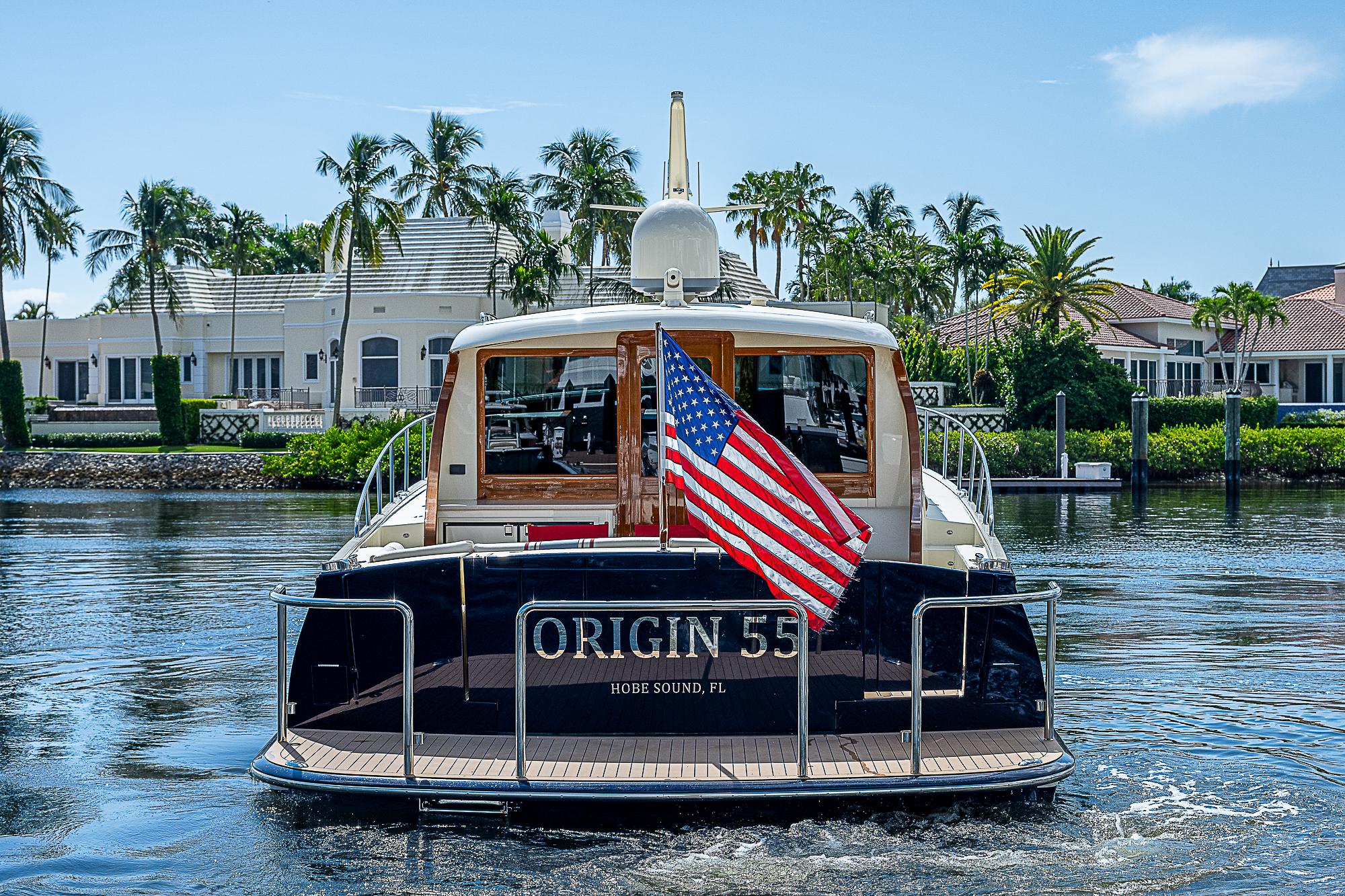

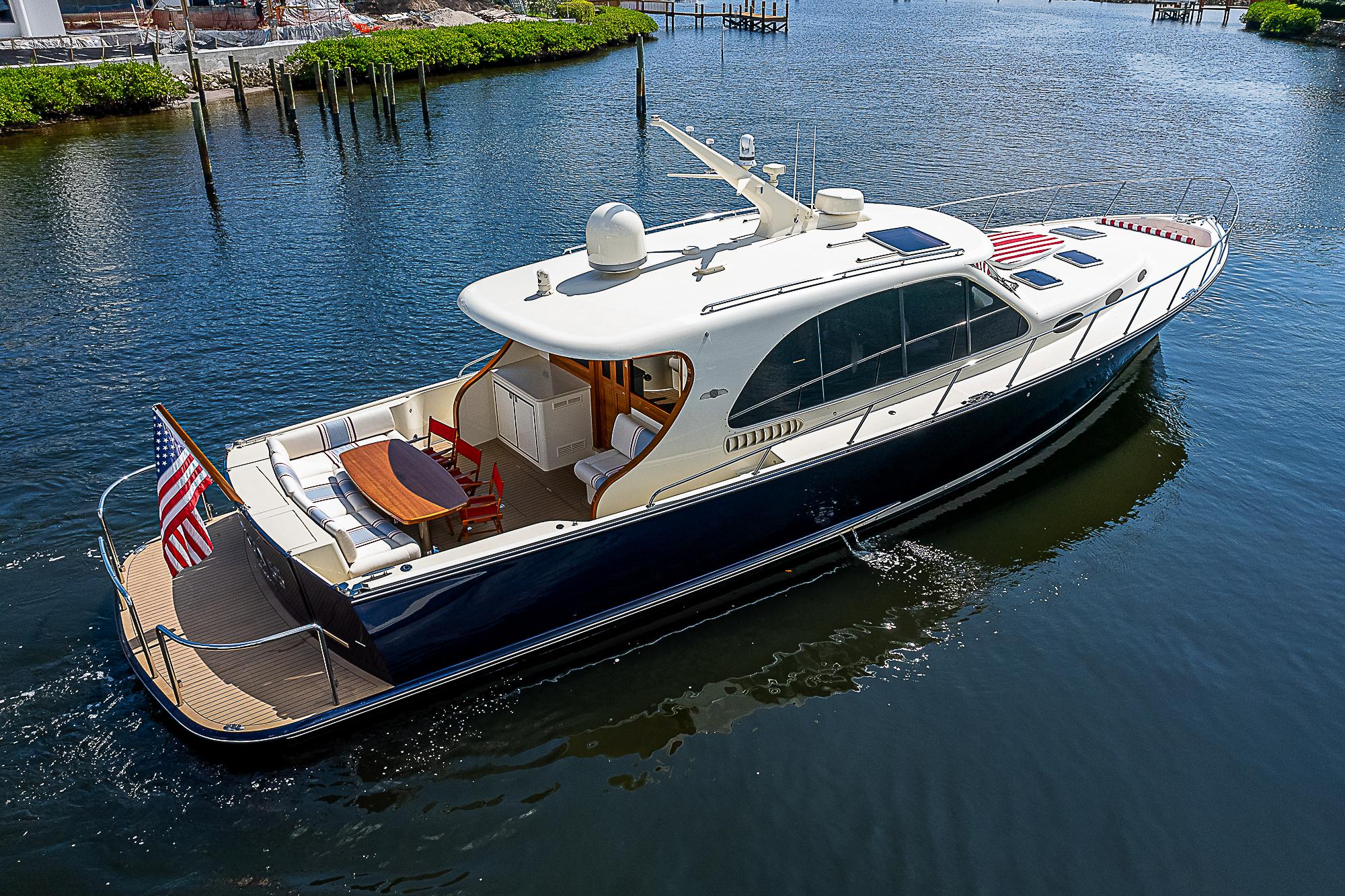

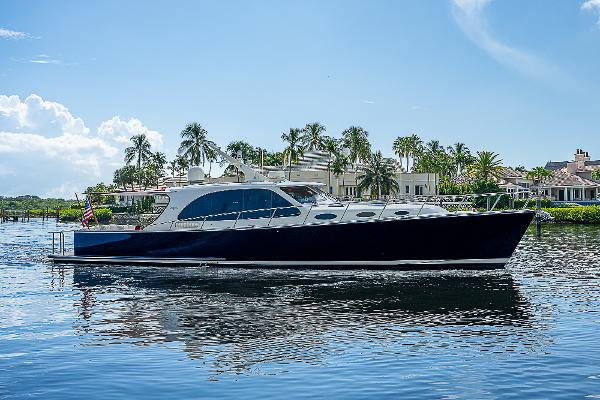

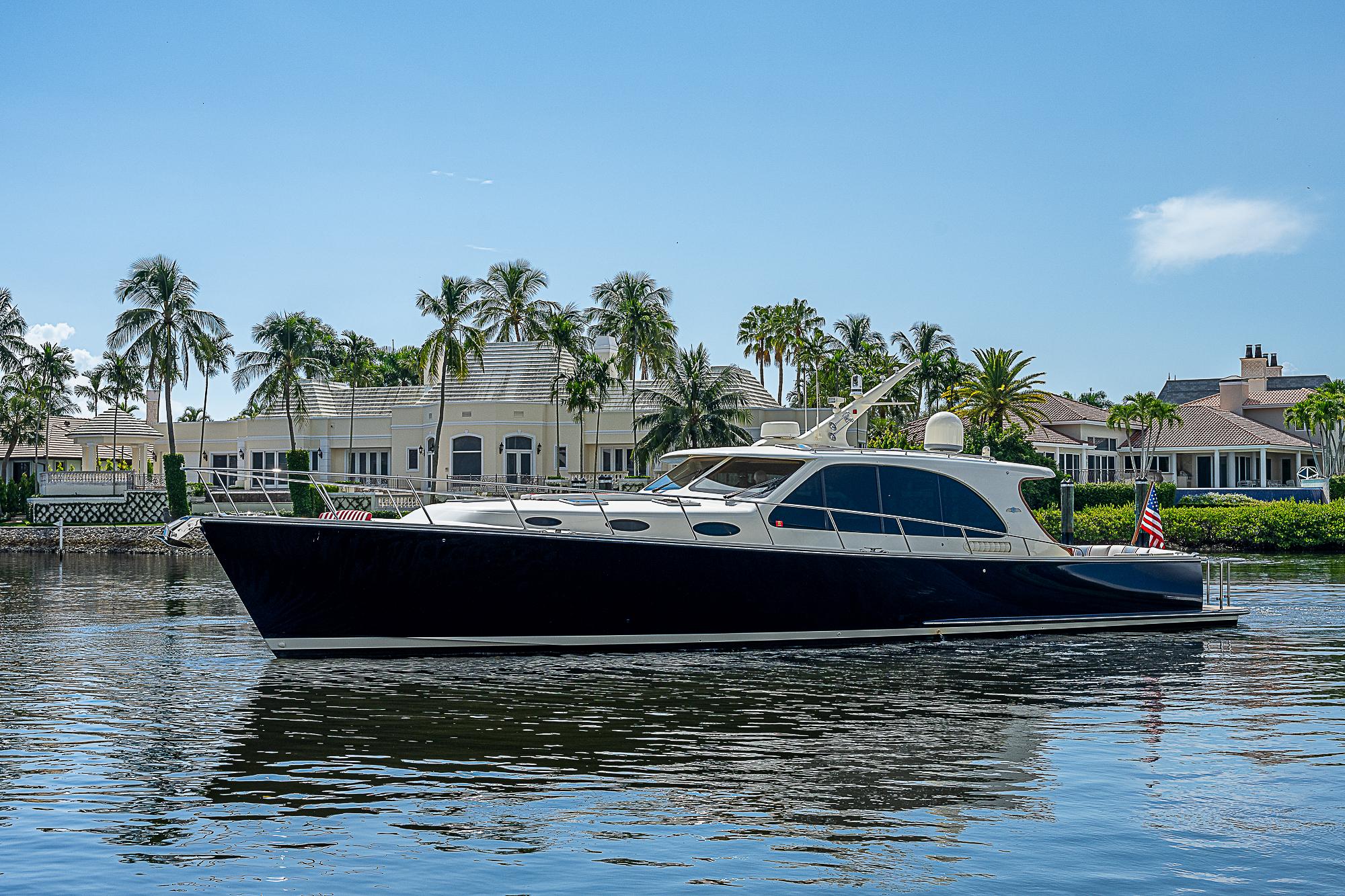

ORIGIN 55 is fully equipped and in As New condition!

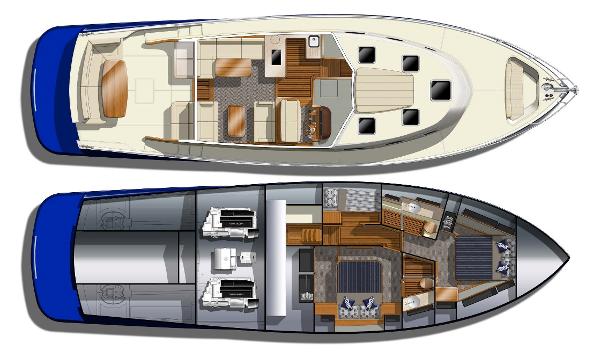

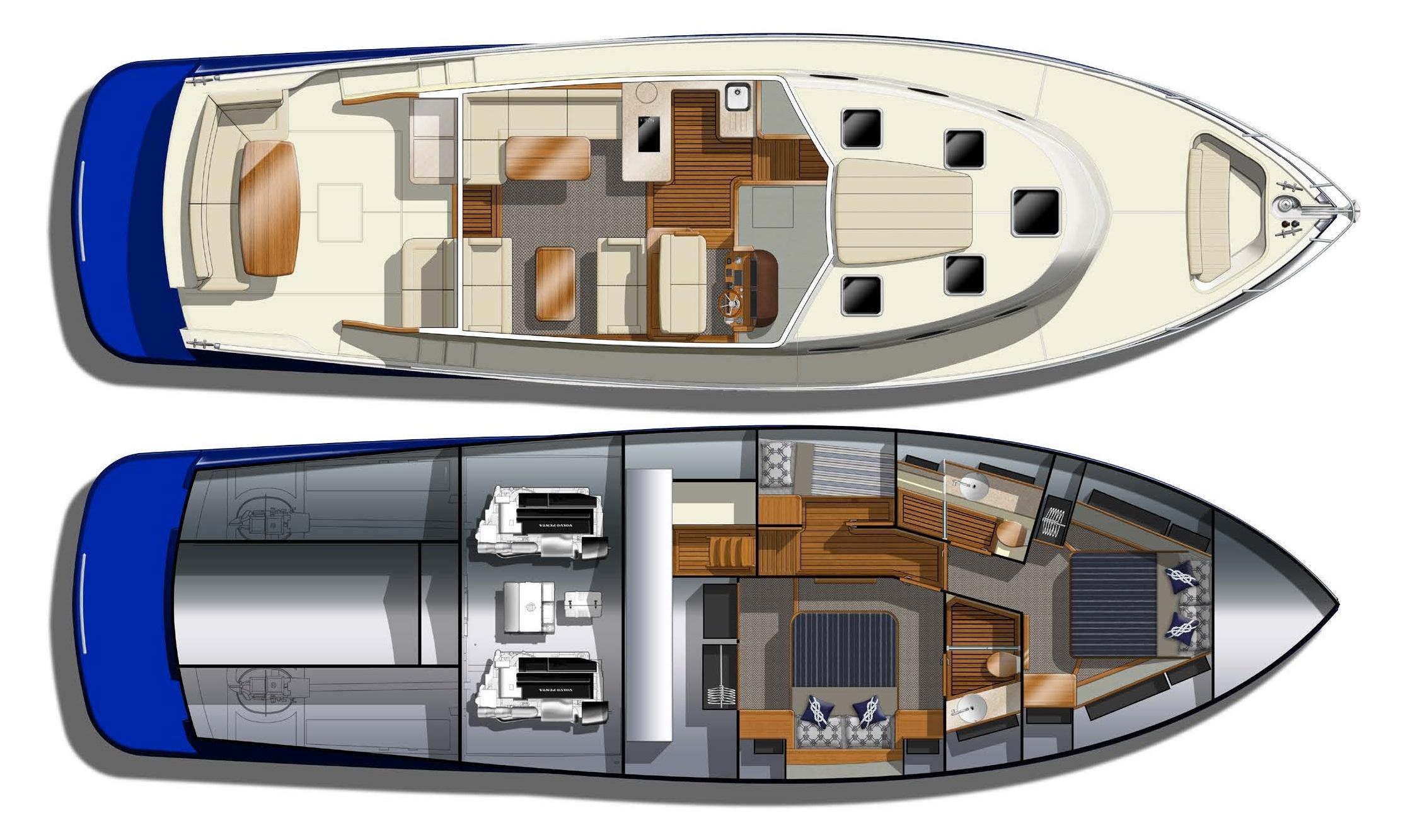

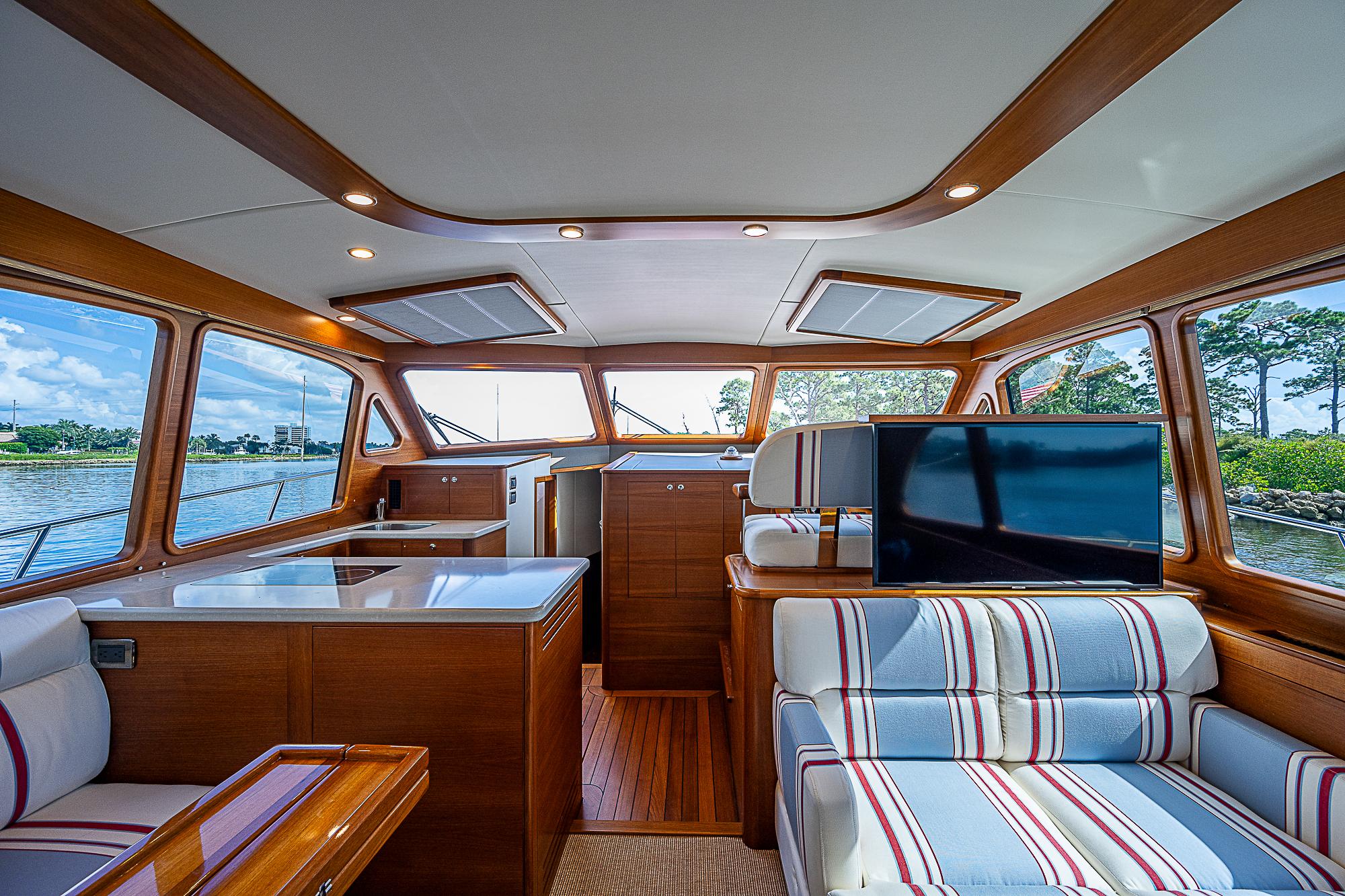

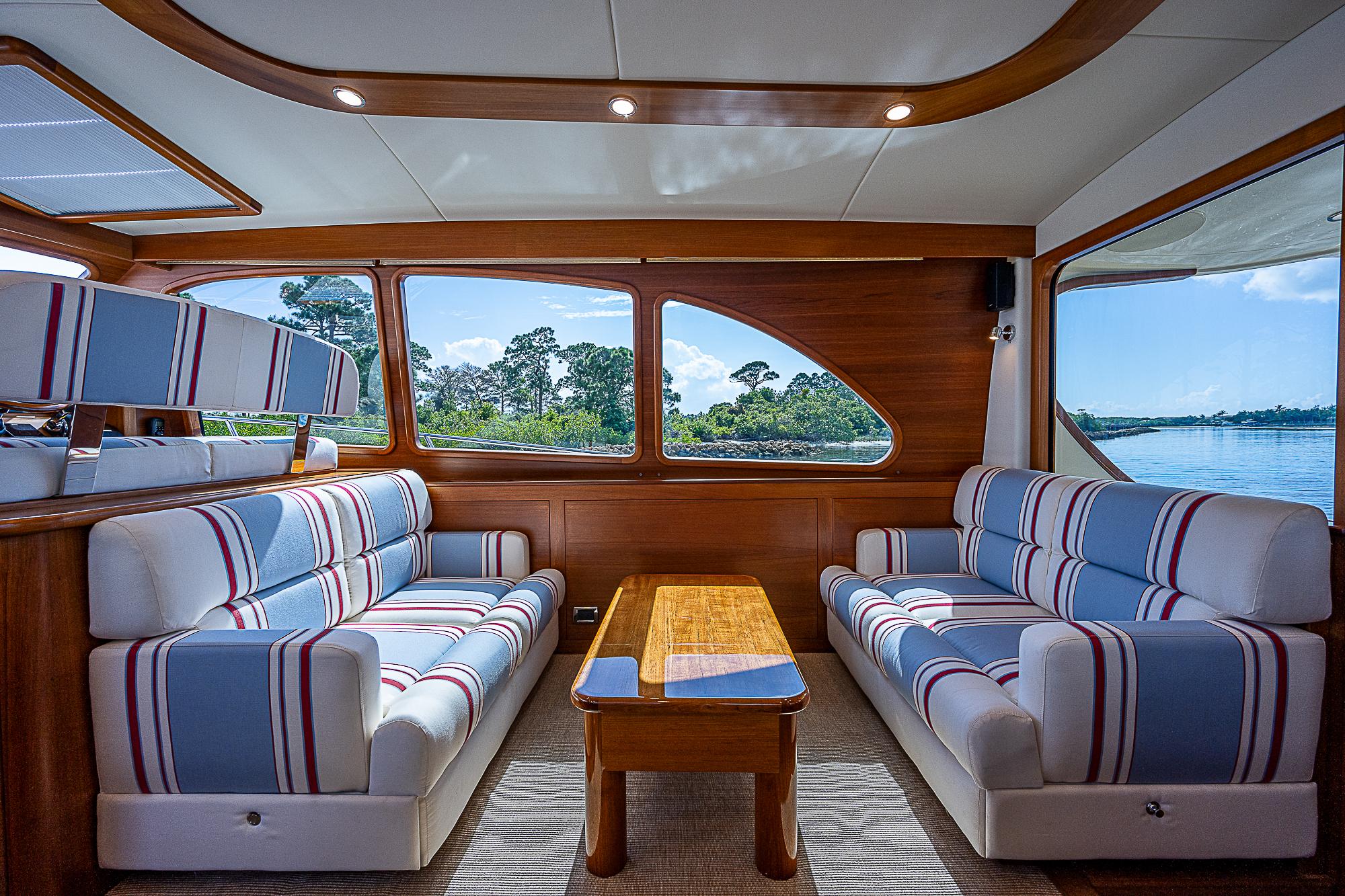

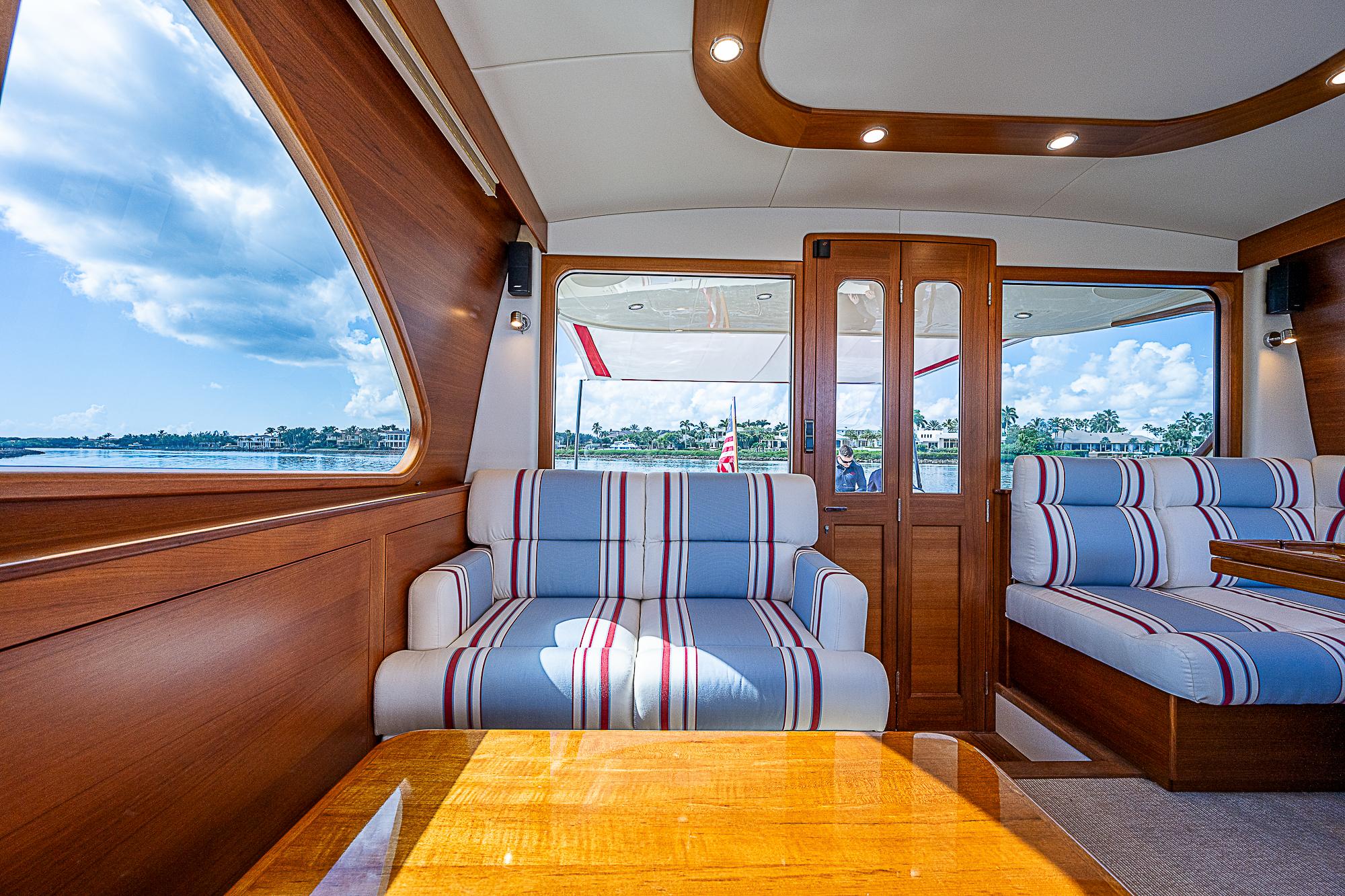

She features a midship master stateroom with full walkaround berth and en suite private head with separate stall shower. There is a forward VIP stateroom with an Island queen berth and a third single berth stateroom on the port side. There is a second head with separate stall shower on the port side as well. The salon features a large L-settee to port, a Palm Beach lounge area to starboard feature opposing settees with a coffee table in between, fully outfitted galley forward port, helm to starboard, opening windows port and starboard, and much more.

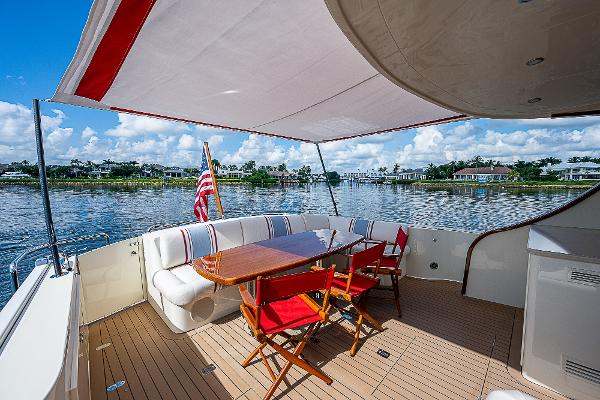

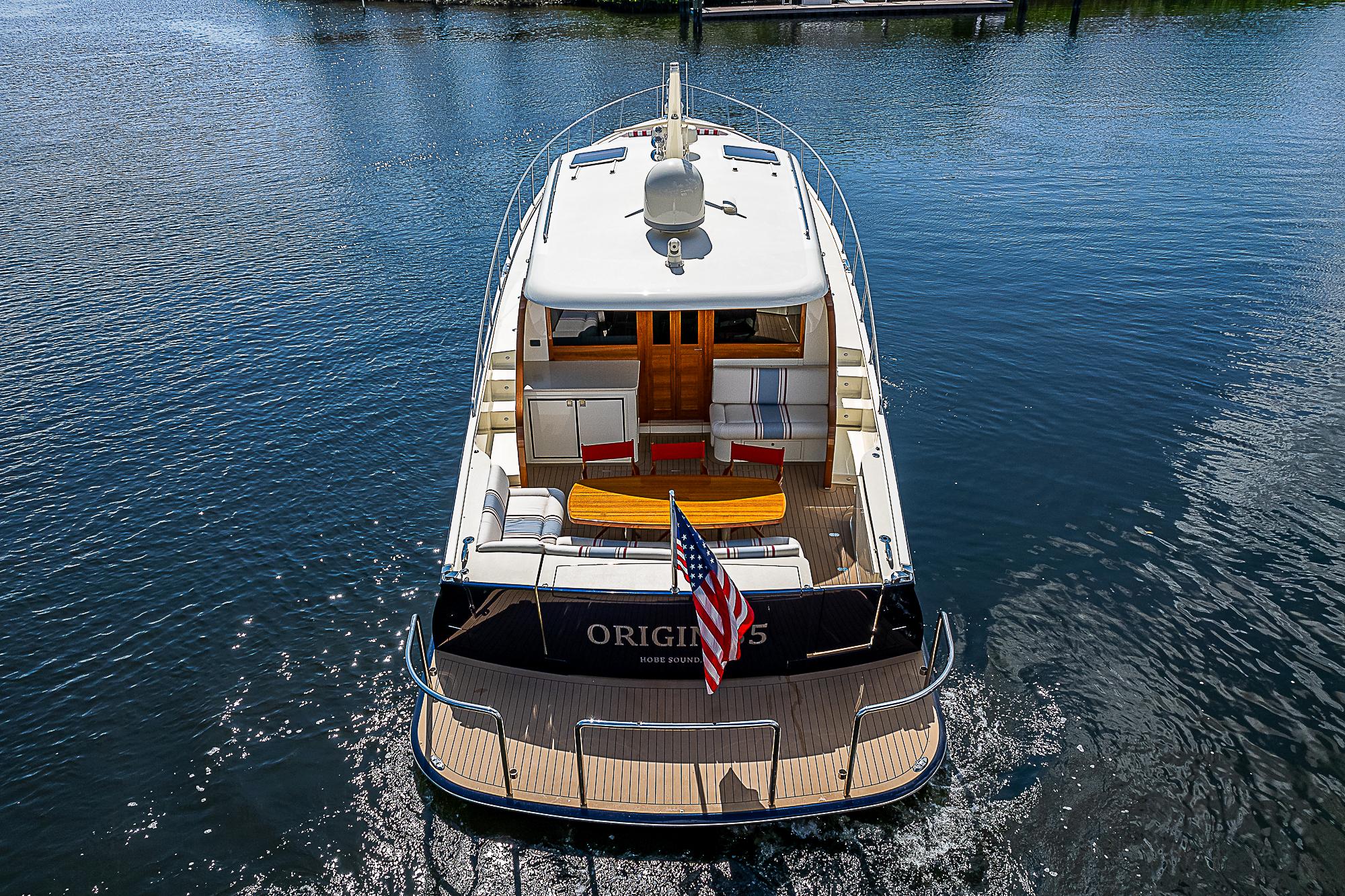

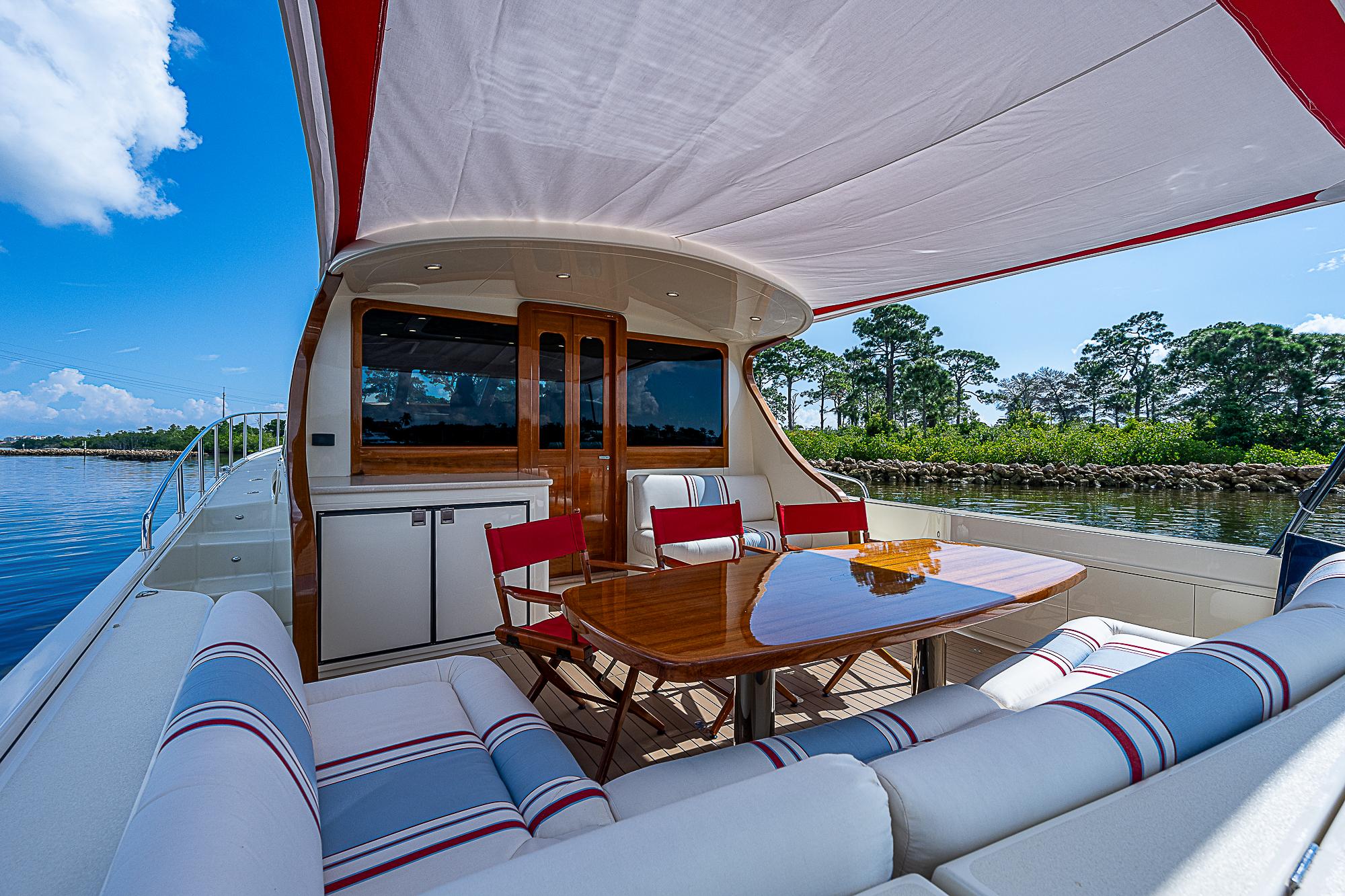

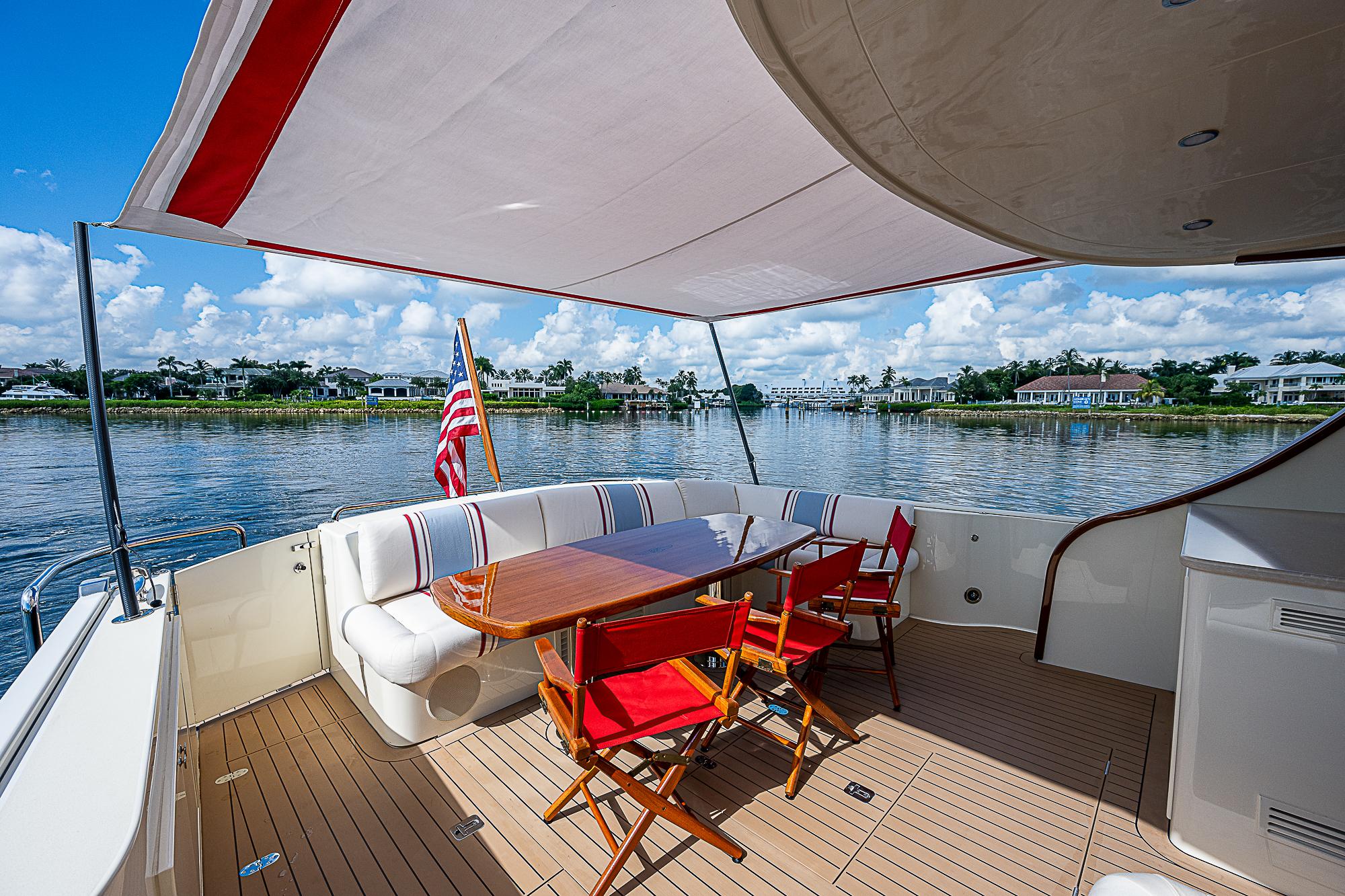

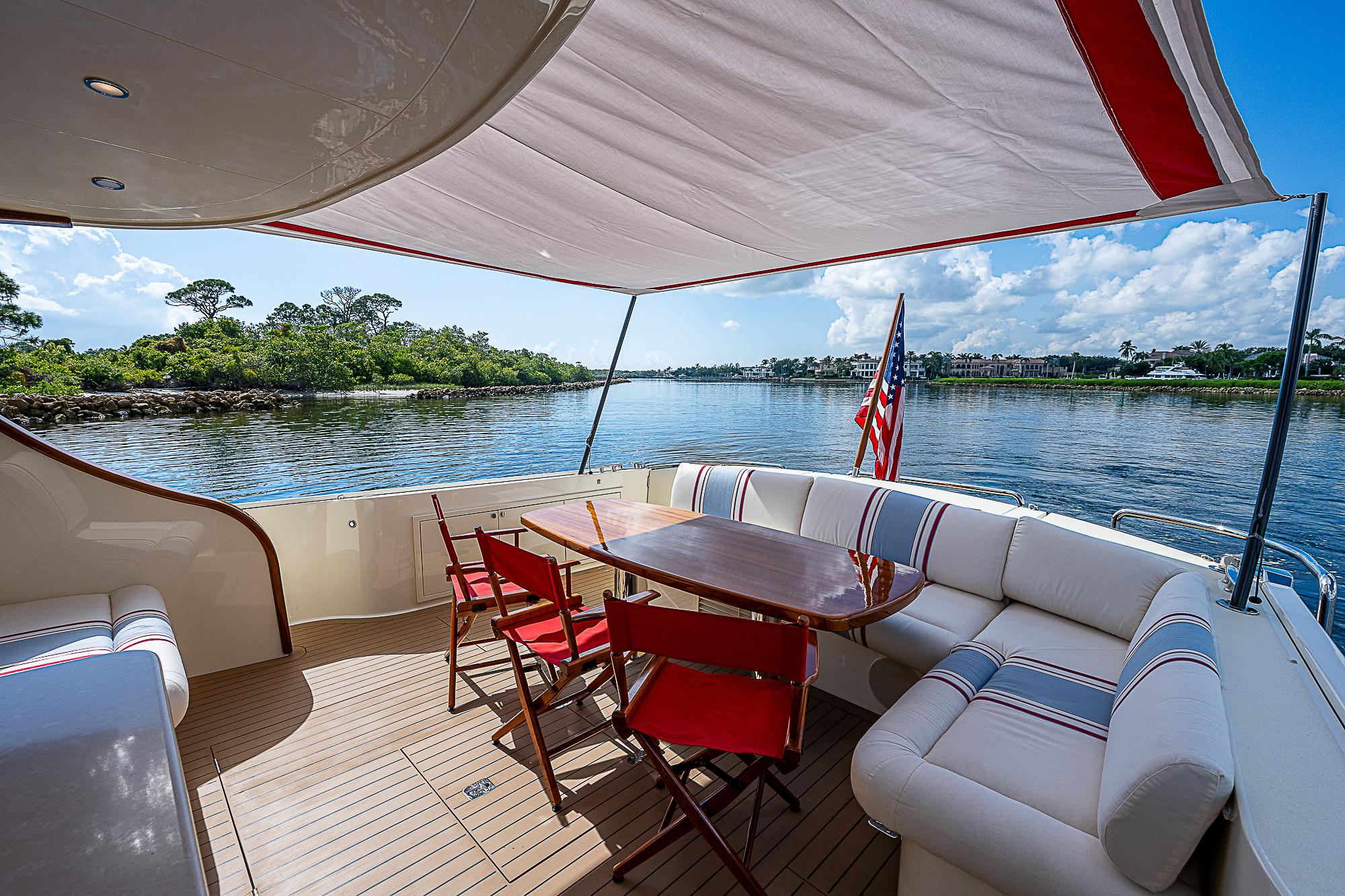

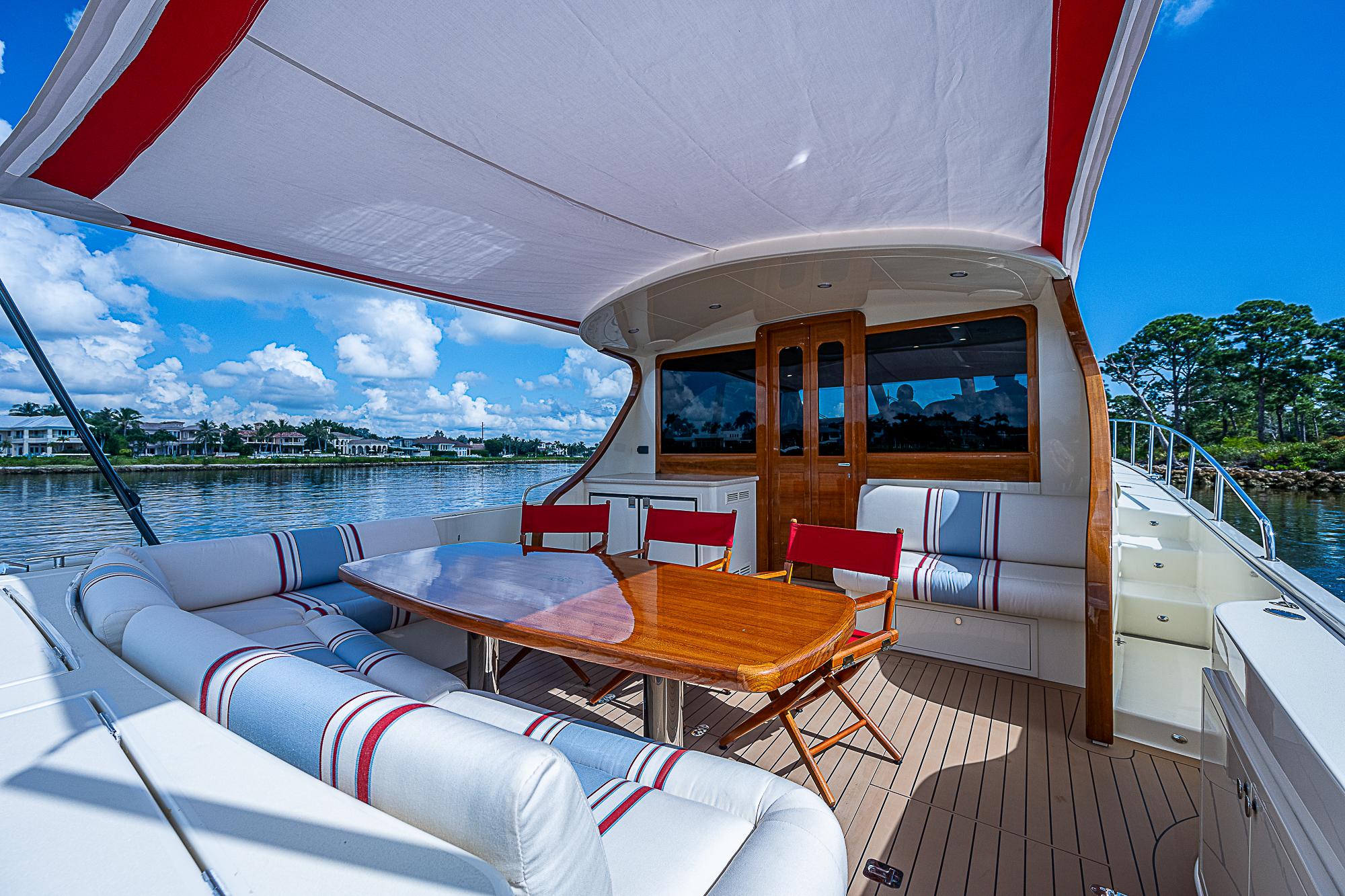

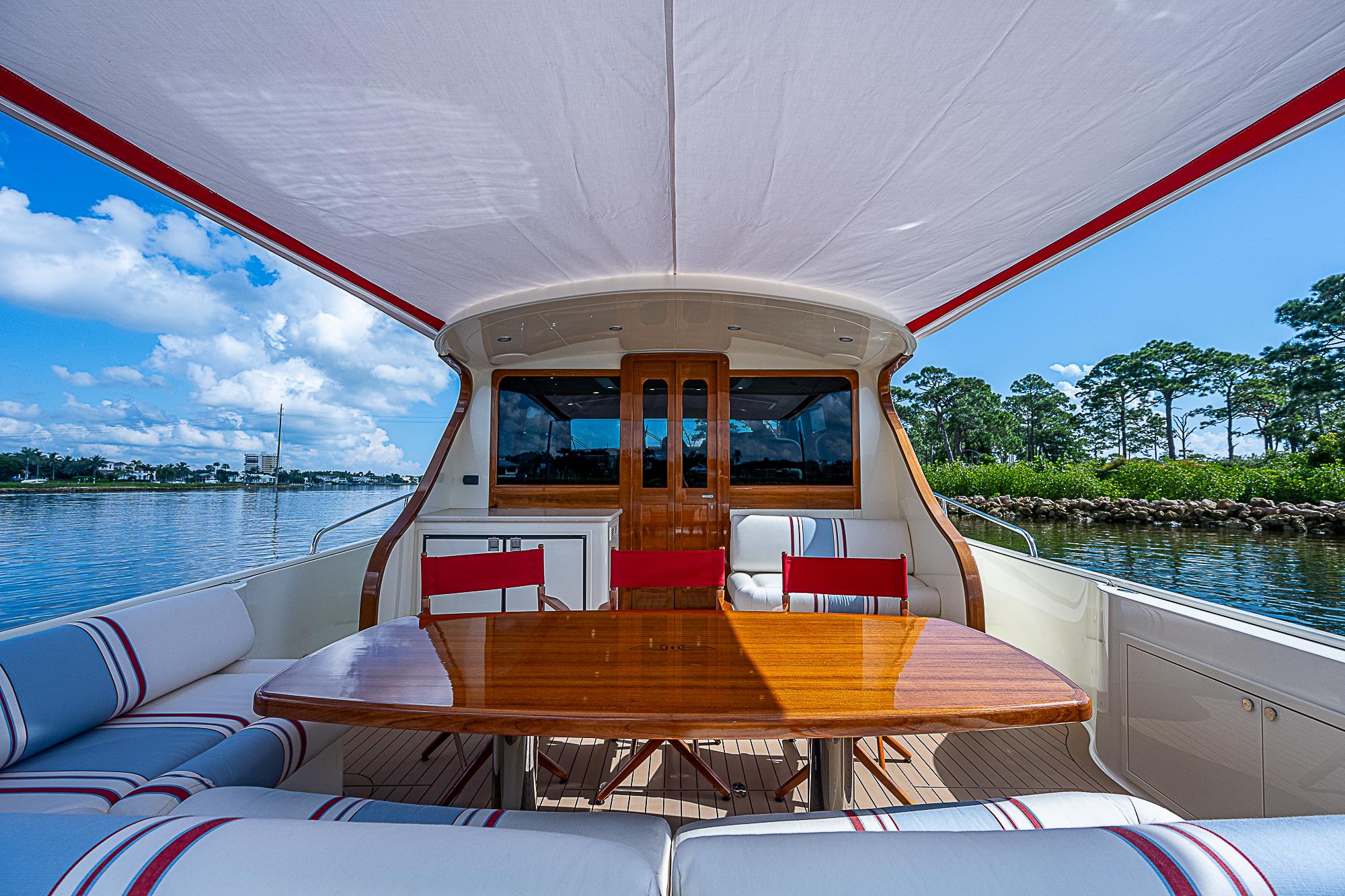

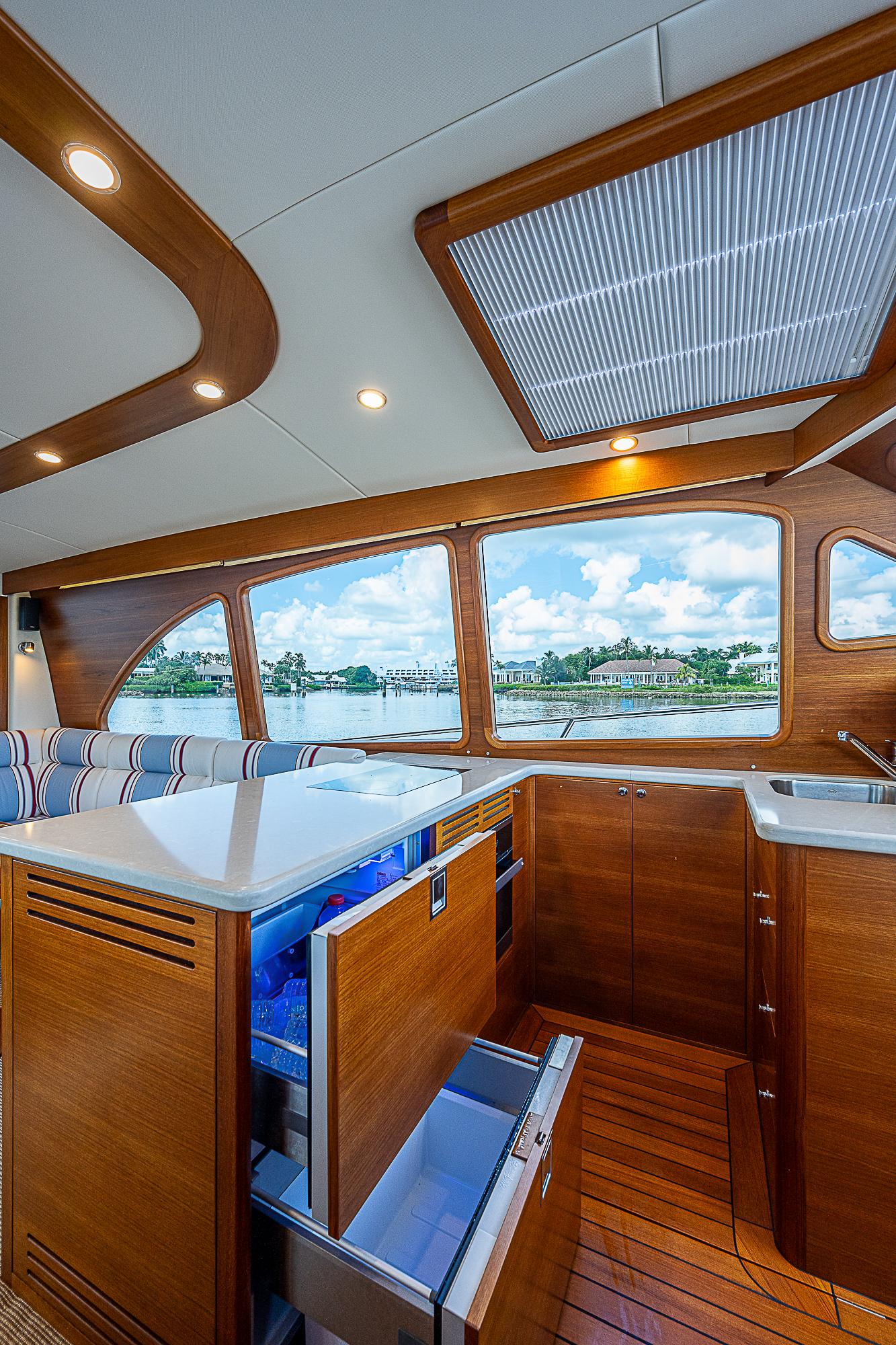

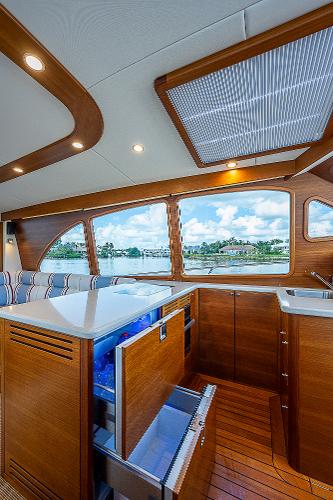

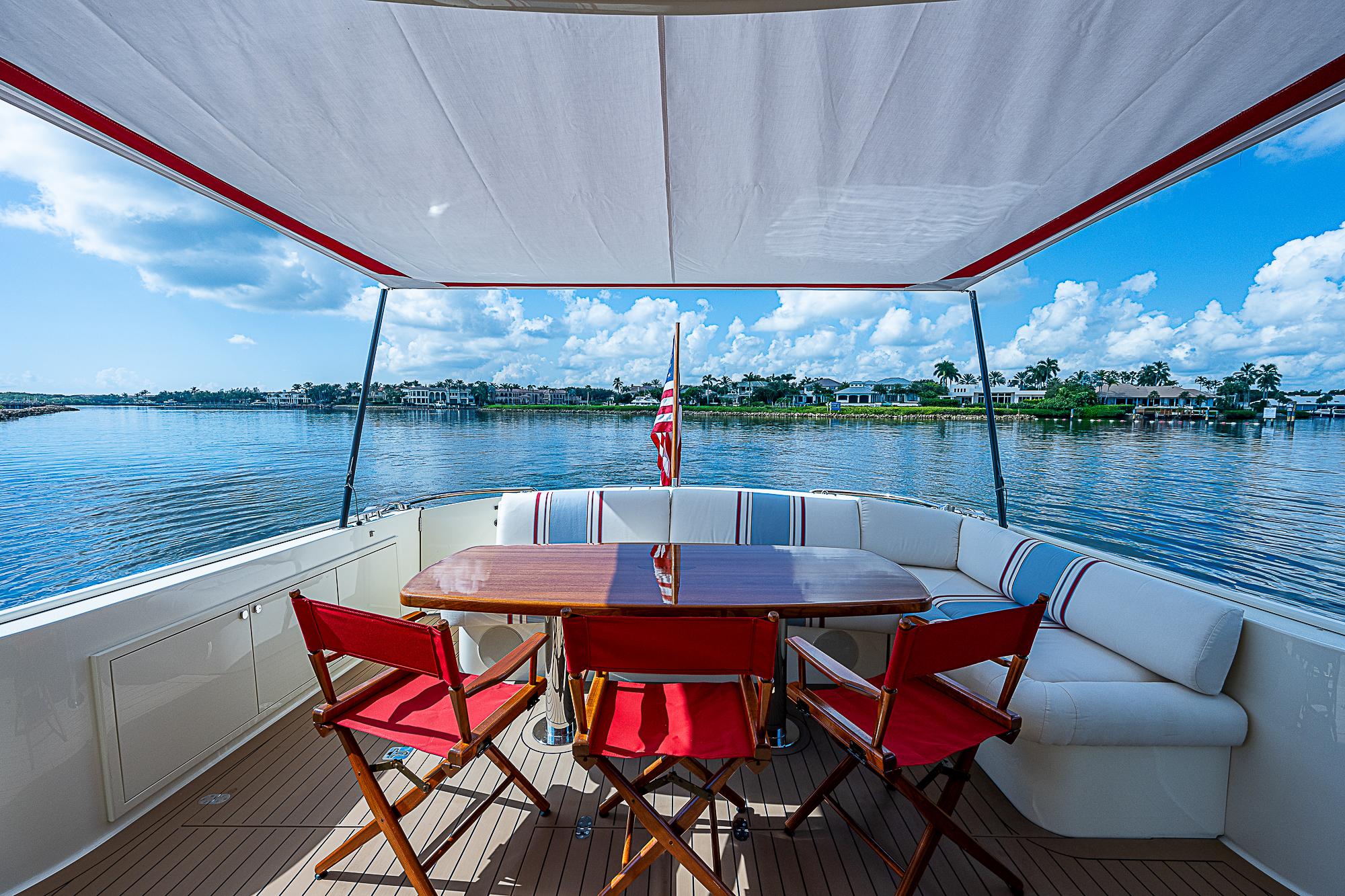

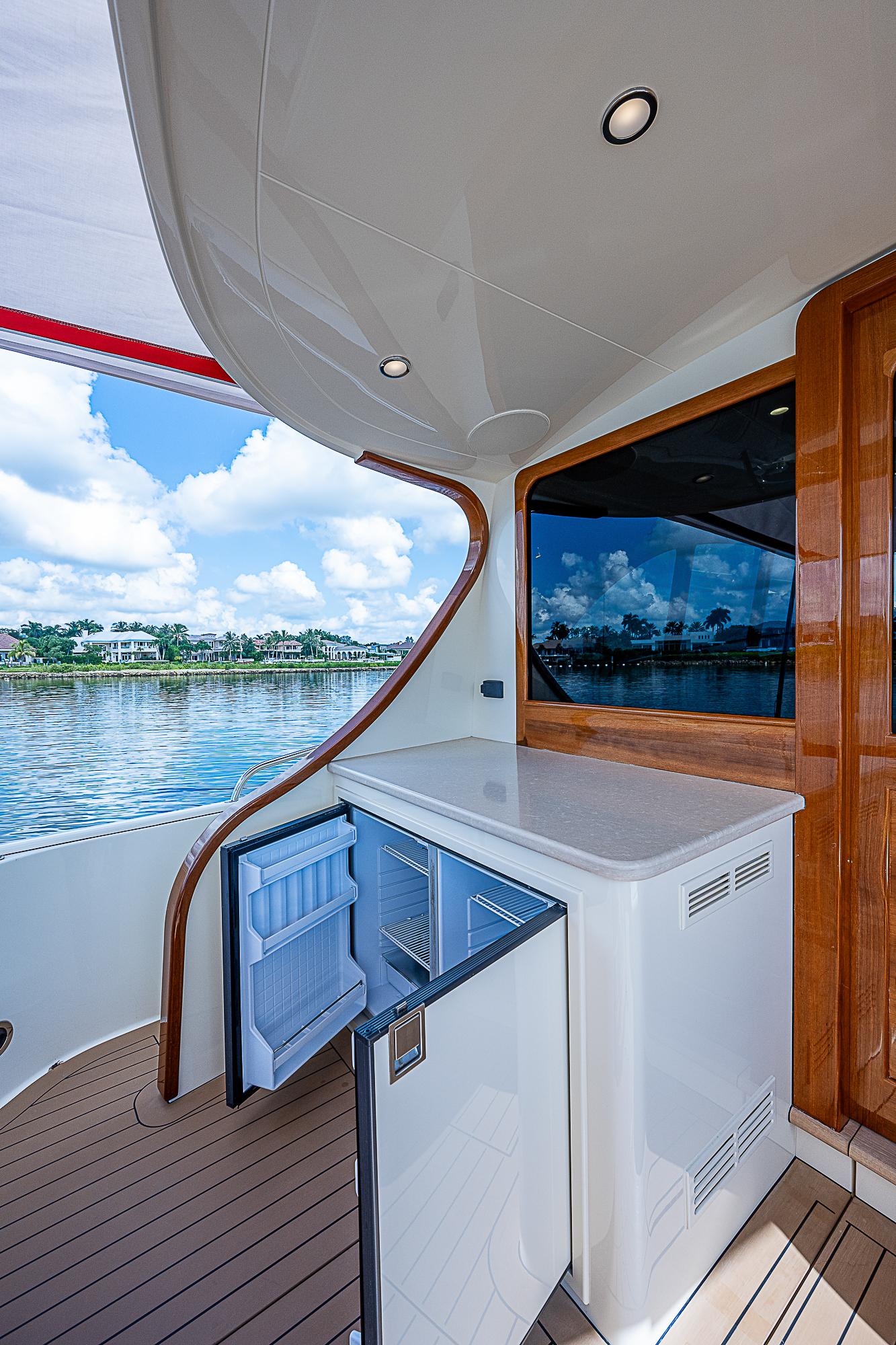

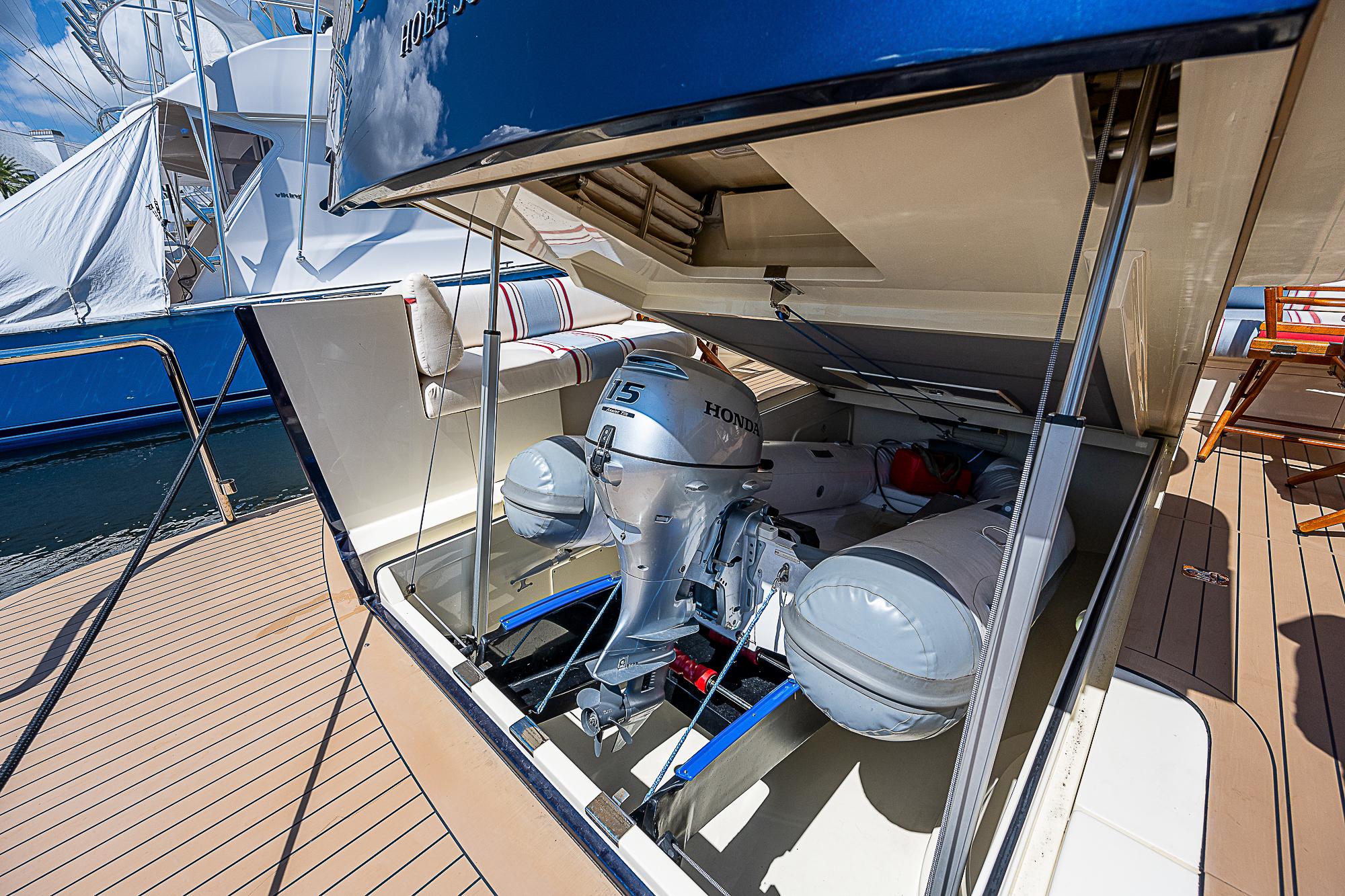

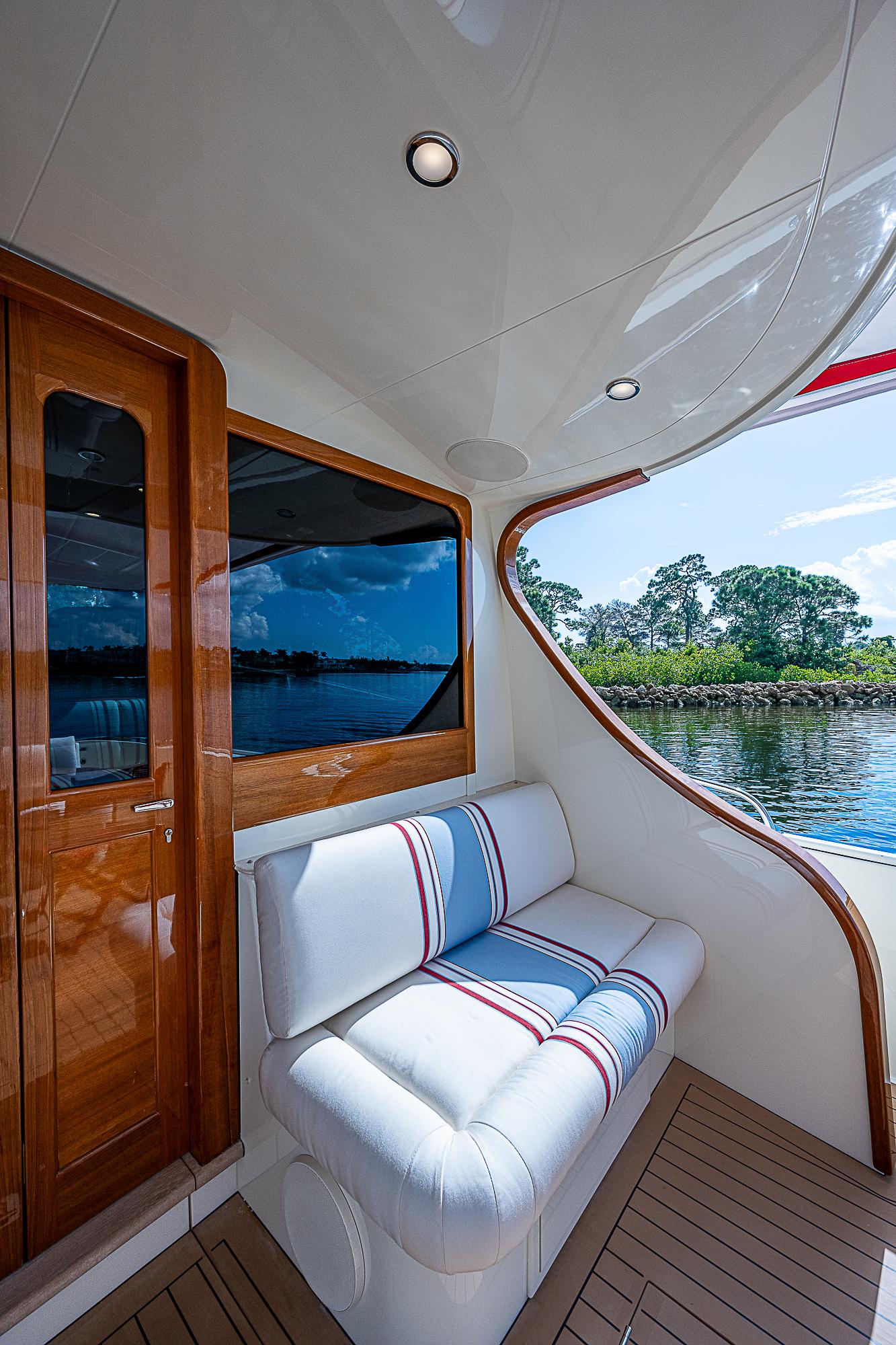

Her cockpit boasts an extended L-settee aft to port and an aft-facing settee forward to starboard. Forward to port are two large refrigerators and a quartz counter with 2 large fully opening windows that open to the salon. She has a tender garage under the cockpit housing a 10’ 3” Sirocco RIB-FG 310 tender with electric start  Honda outboard. The tender garage opens hydraulically via remote control and has a self-launching system for launching, retrieving and stowing the tender.

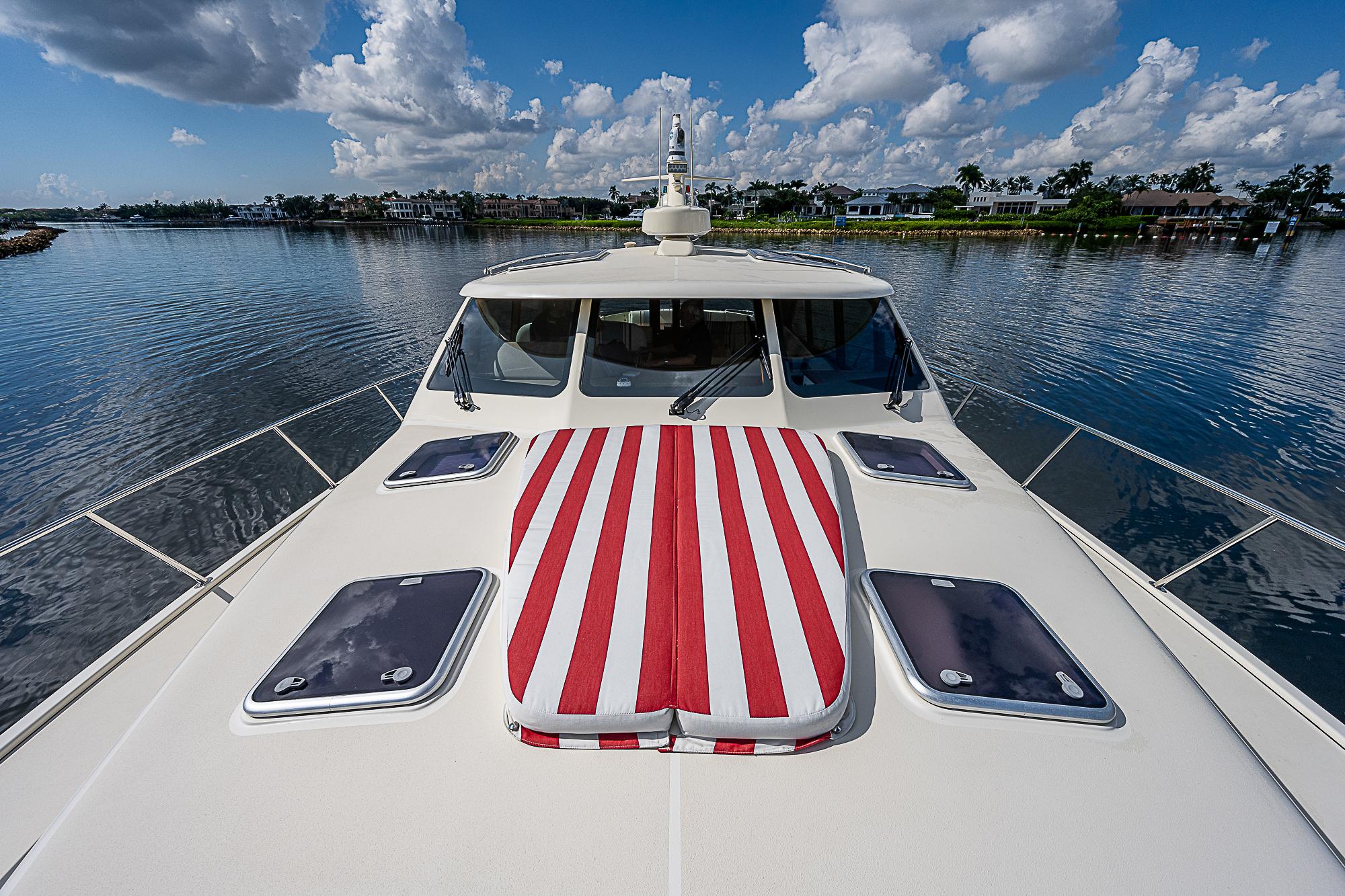

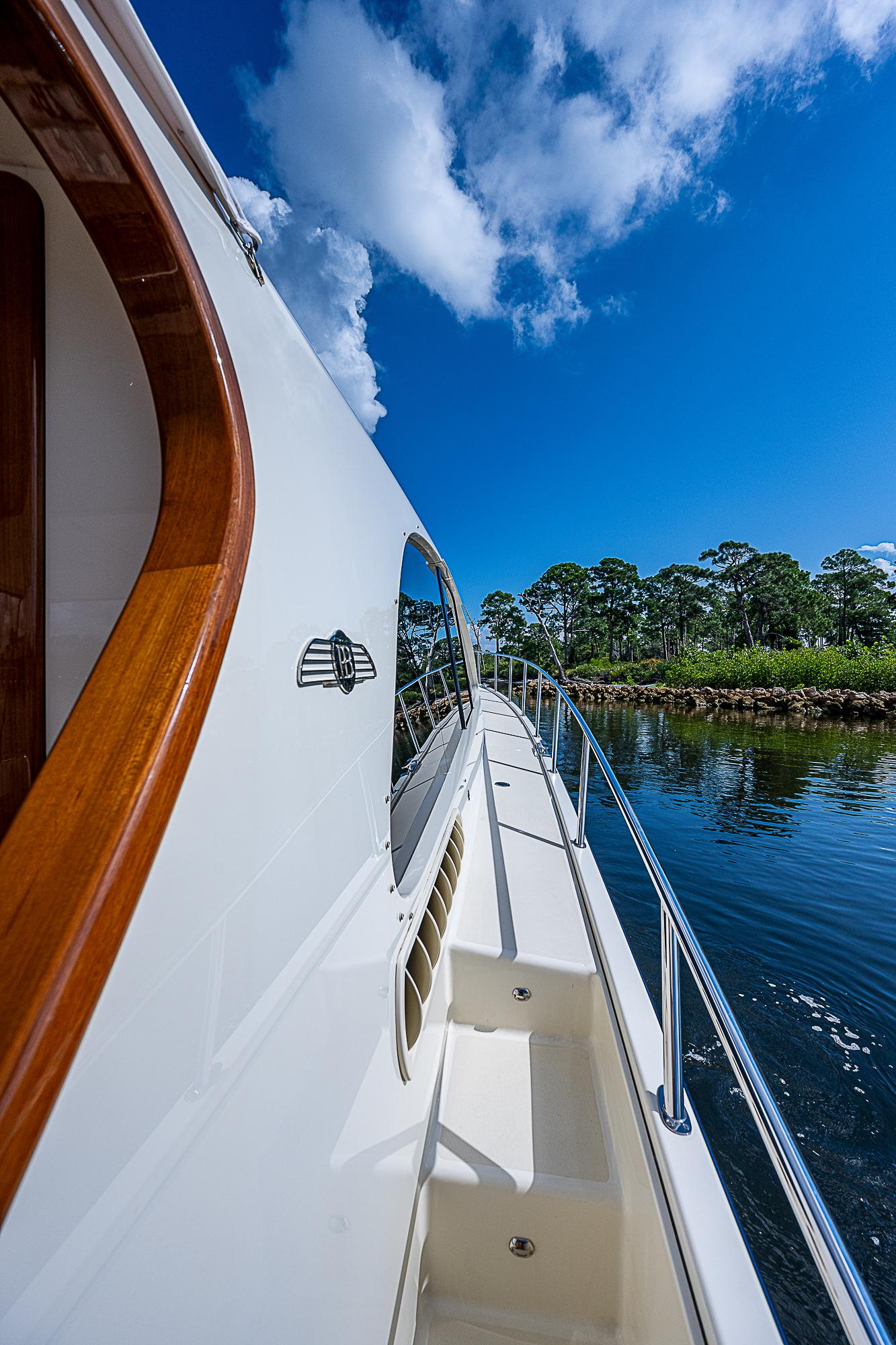

She is powered by low 280 hour twin Volvo IPS 950's with joystick control and dynamic positioning. Two (2) Garmin 8617 screens at her helm with radar, sounder, AIS, WiFi and more. The sidedecks on the Palm Beach 55 are fully walkaround, so when you start from the cockpit you go up a few steps gradually with hand rails port and starboard. At the bow area, she features our custom bow rider seating option with removable awning which is a really nice additional seating area as well as a foredeck sunpad on the cabin top. She has interior custom blinds in the salon, standard canvas covers for all exterior seating areas, windows, a full cockpit cover, a removable awning with carbon fiber poles and much more.

CONSTRUCTION

Hull is vacuum-infused E-Glass with carbon fiber in structural areas, cored with Corcell and Airex foam, stitched multi-axial fabric, and vinylester and epoxy resins. The deck and superstructure are fully-infused carbon fiber. All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity. All exterior strength steel fittings are 316 marine grade stainless steel.

Enclosed hardtop - infused carbon fiber with electric sliding windows (port, starboard & aft) using toughened glass Burmese teak interior Hull color: Rolls Royce Peacock Blue, Optional Upgrade Deck color: PB Cream Watertight collision bulkhead located in the bow Grounding skeg, Optional upgrade

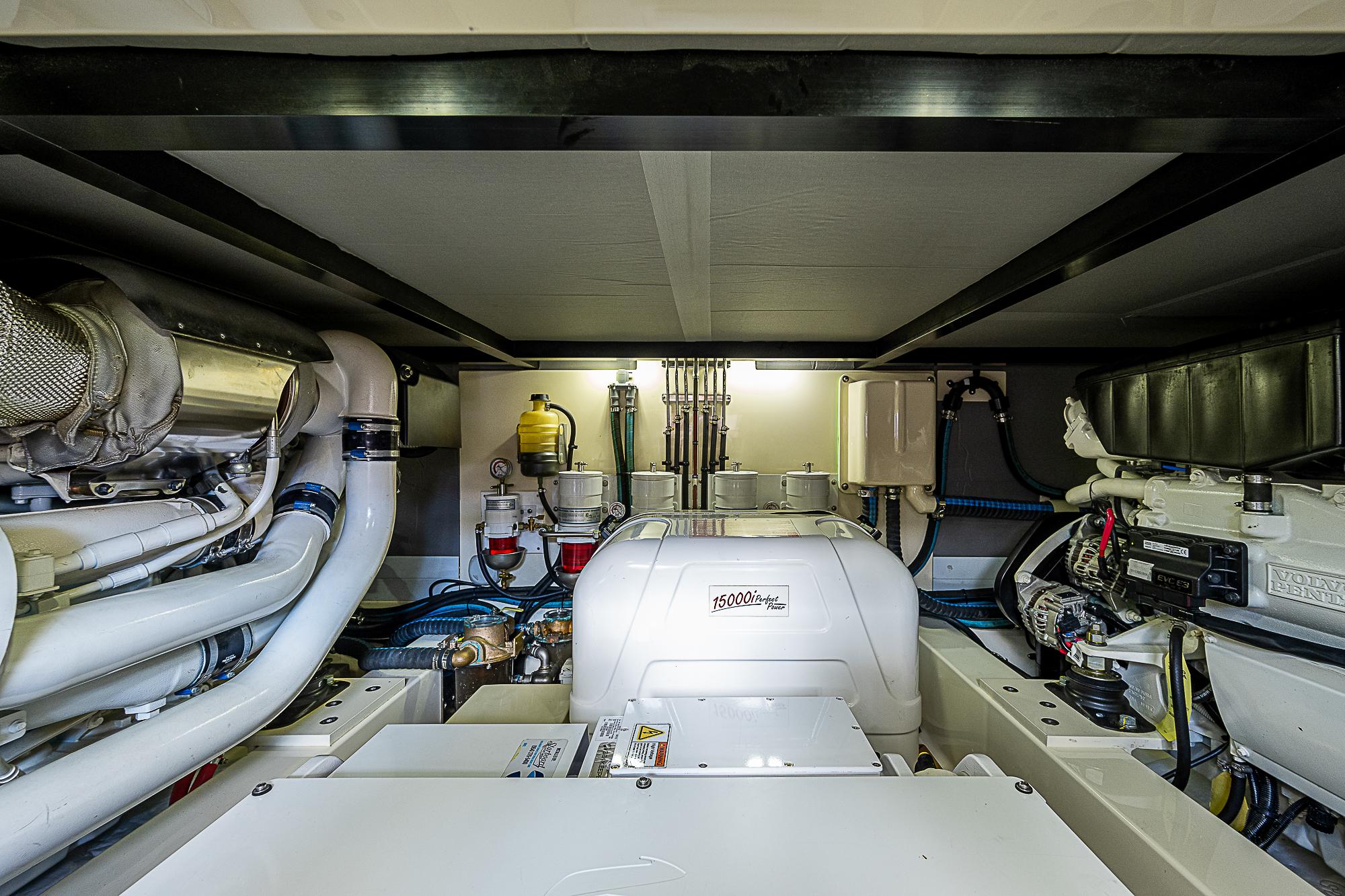

ENGINE & MECHANICAL

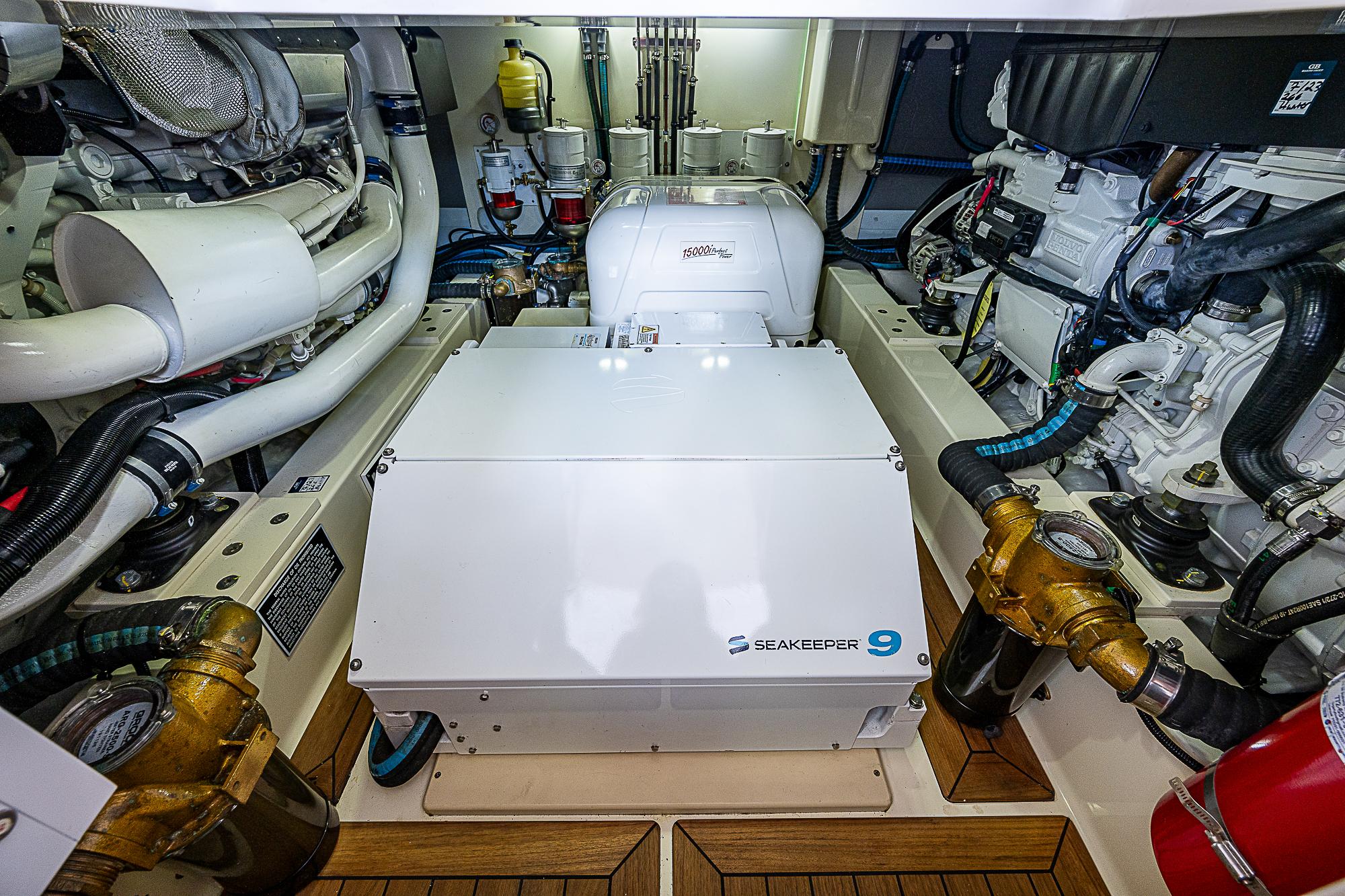

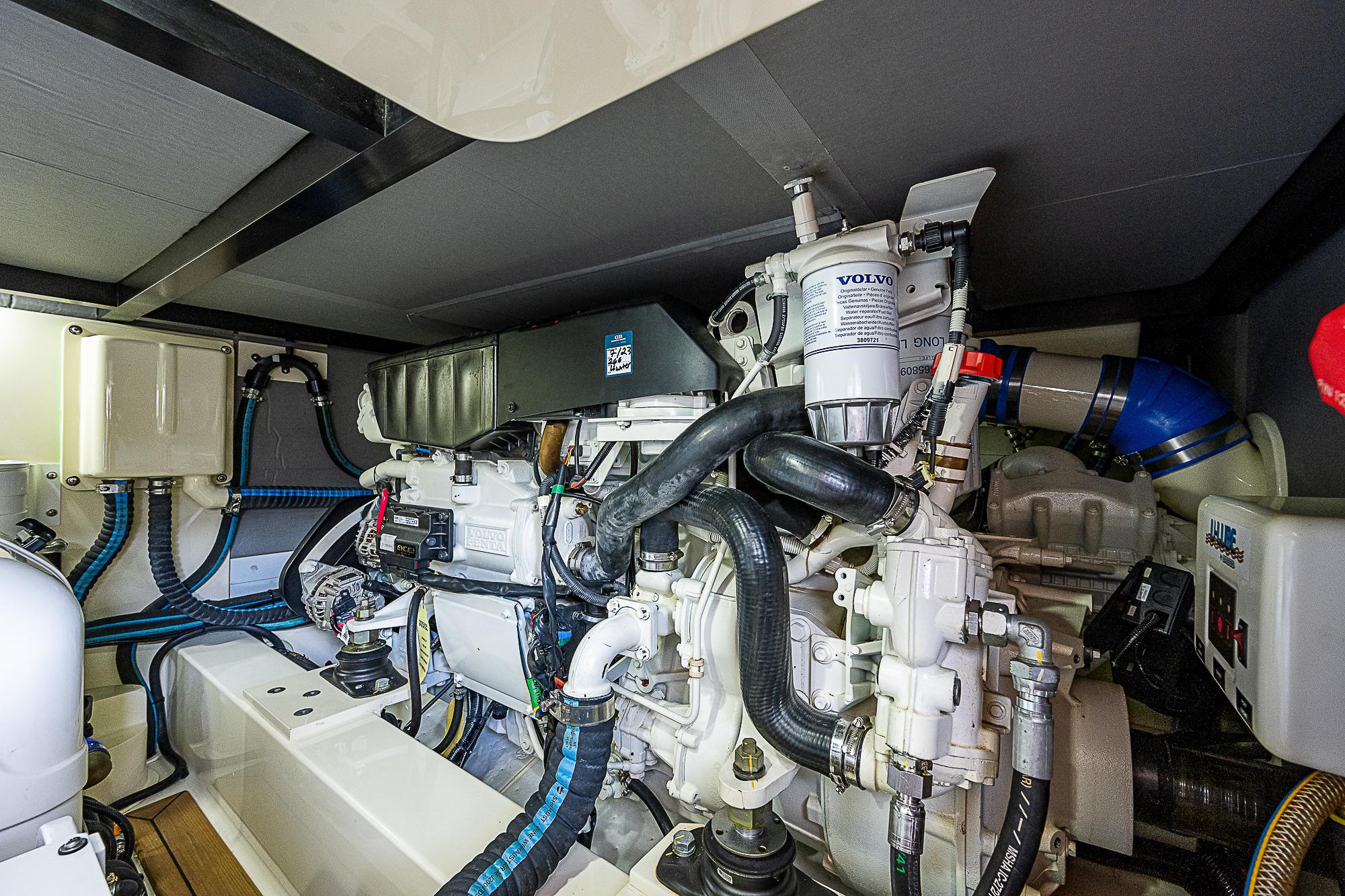

Twin Volvo IPS 950's @ 725hp each, with approximately 280 hours as of 9-12-23  VOLVO 5-YEAR OR 2,000 HOUR EXTENDED WARRANTY - ENGINES AND PODS; effective thru 06/30/2026 or 2,000 hours Dynamic Positioning System (DPS), Optional Upgrade Seakeeper 9 Stabilizer, Optional Upgrade Bow Thruster, Sleipner Side-Power SEP170/250TDC Acoustic engine sound shield Air conditioning units: 2x 27,000 BTU self-contained Anti-vibration mounts on engine supports Bilge Pump: Automatic 100L/min with manual override (4) Composite skin fittings & ball valves, double clamped on all through hull fittings on or below the waterline Electric trim tabs with indicators Fuel tank, integral composite with gauge at helm Internal seawater strainers for main engines, generators and air conditioning intakes Fuel shut off valves Holding tank with macerator and dockside discharge Horn, Dual Kahlenberg #D-OA Pressurized fresh water system (24V) Hot/Cold Dual Racor 75/900MAX fuel/water separator for each engine, Optional Upgrade Fresh water sanitation system (2x 24V toilet) Hot water heater 50L Seafire Fire Suppression System Water Filter/Purification: 3M Water Filtration BEV-140 for Galley & Icemaker

ELECTRICAL EQUIPMENT

Air-Conditioning Raw Water Intake Marine Growth Prevention - Electrosea Clearline 430 #CL-430-N1.0, Optional Upgrade Custom Strainer: i. Air Cond - (1) APHS-2000; ii. Engine - (1) APHS-3000

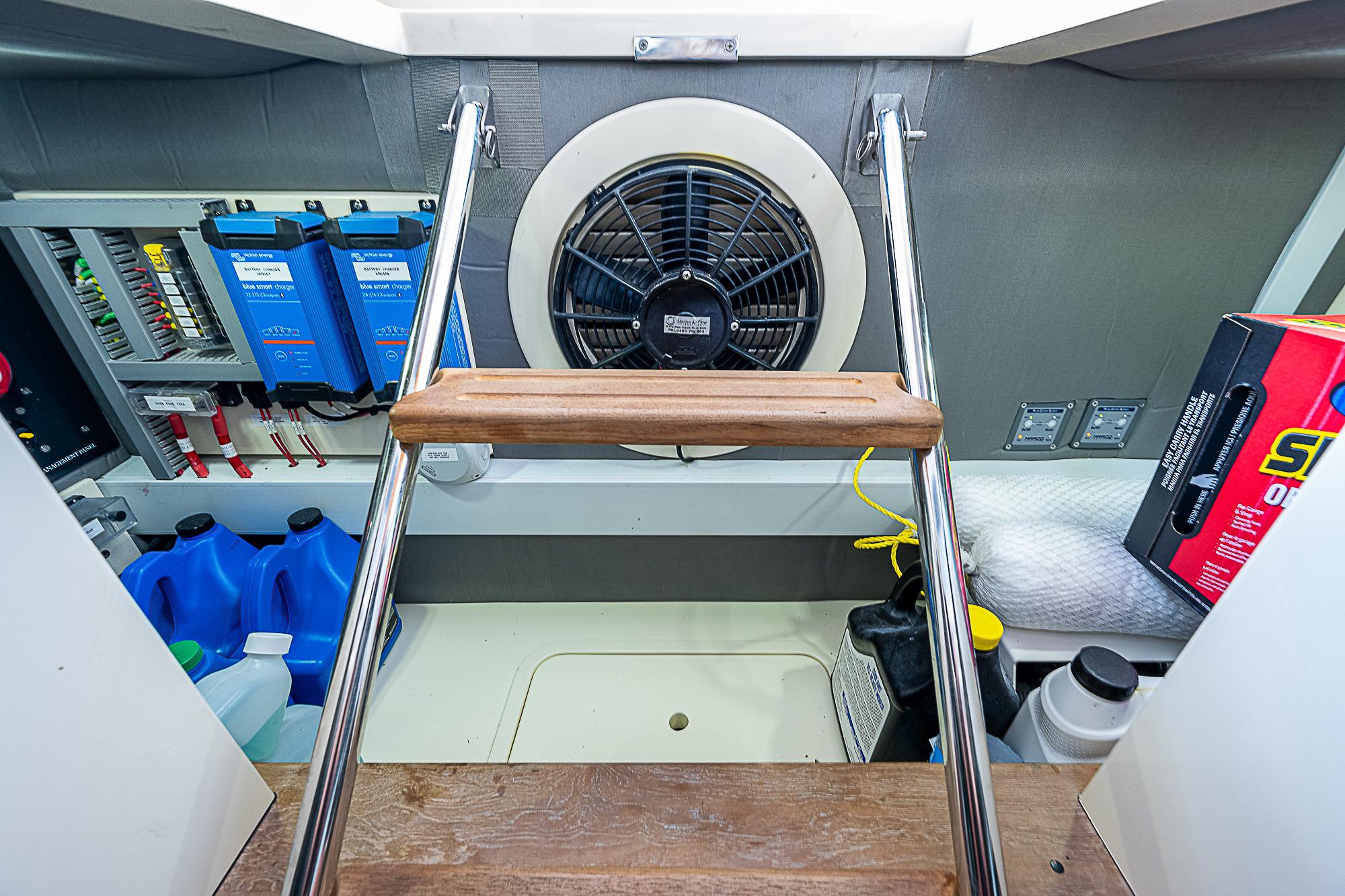

AC outlets Custom 24V and 240V 110V distribution panels with amp and volt meters House batteries: deep cycle lithium, 300AH Engine start batteries: AGM Battery paralleling system for emergency engine starting Battery switches electronic isolators Genset start battery: AGM Shore power inlets: (1) 50A/240V, Glendinning Hosemaster-M 05510-24-50 with retractable hose Freshwater washdown at aft Dockside shore water connection and reducer at cockpit/transom Generator, Fischer Panda 15,000i mounted on subframe and installed with gas water separator for noise reduction 5-YEAR EXTENDED WARRANTY - GENERATOR DC battery charger 16amp 24V Inverter, 8,000 watt / charger 100amp 24V Engine monitors including instrumentation, alarms & hour meters LED overhead lights

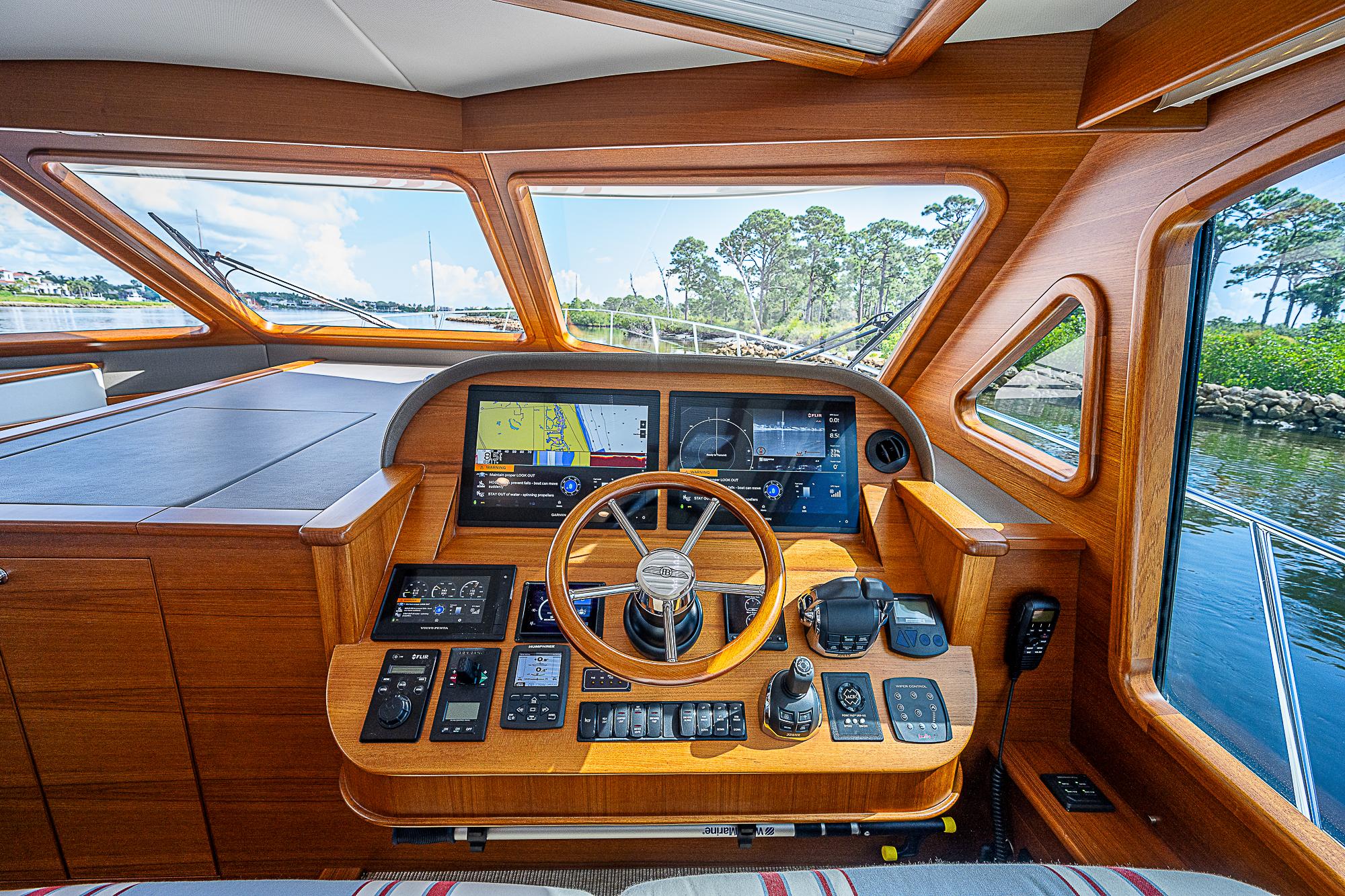

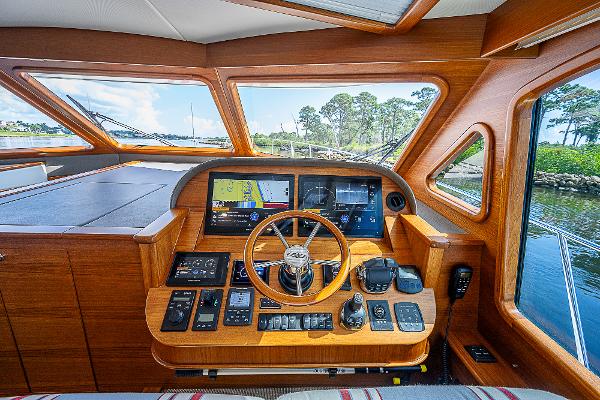

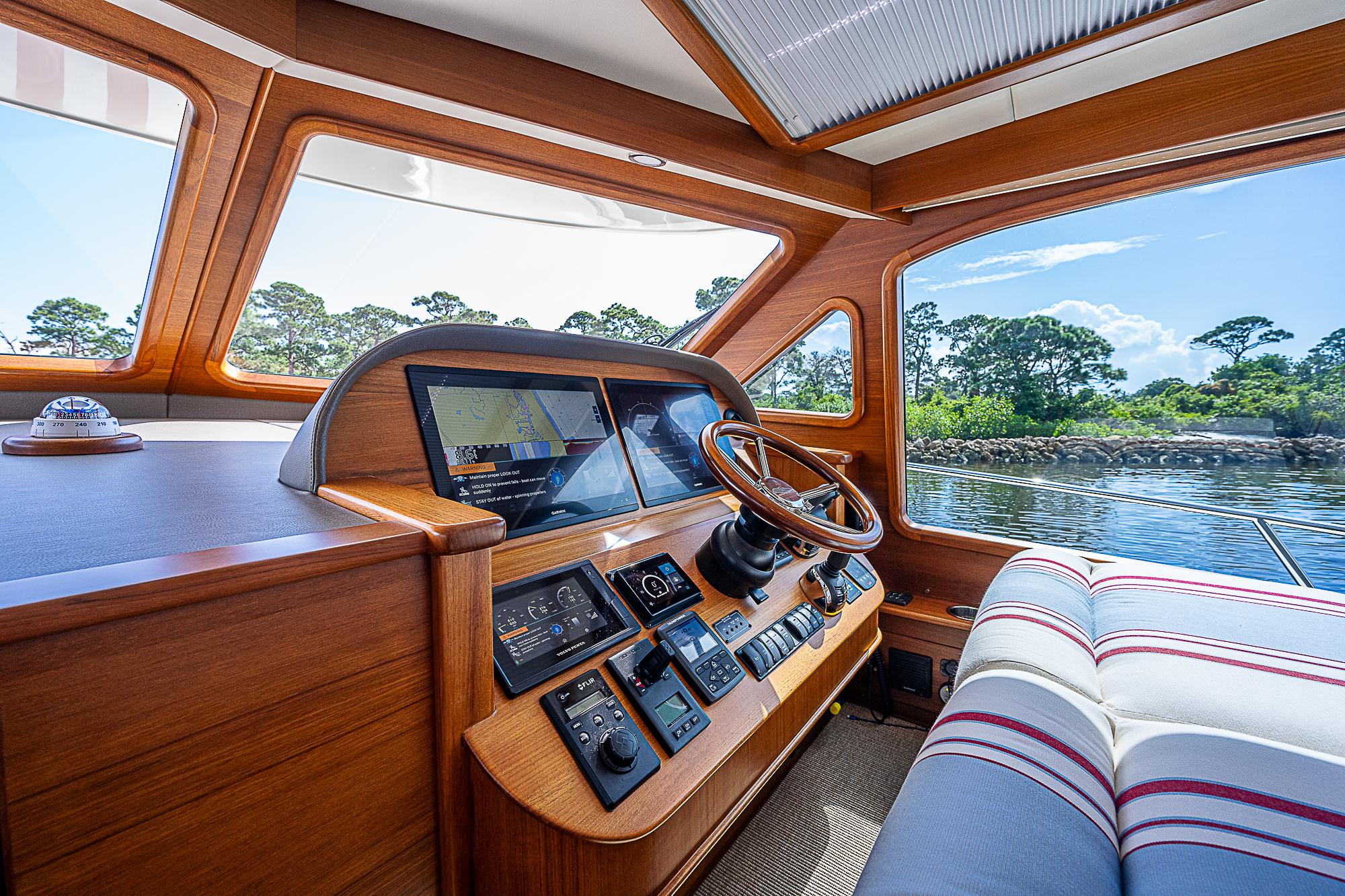

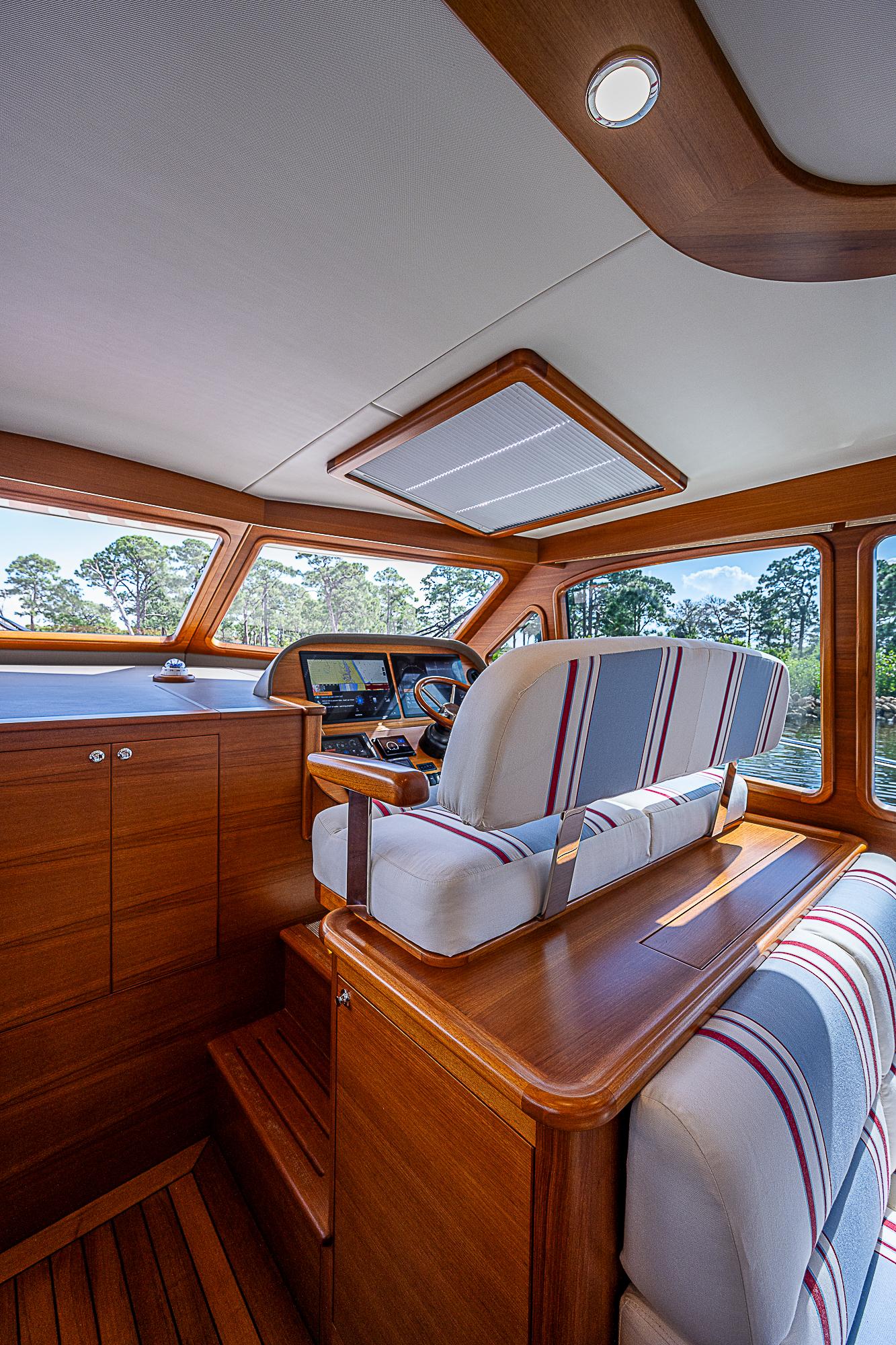

HELM

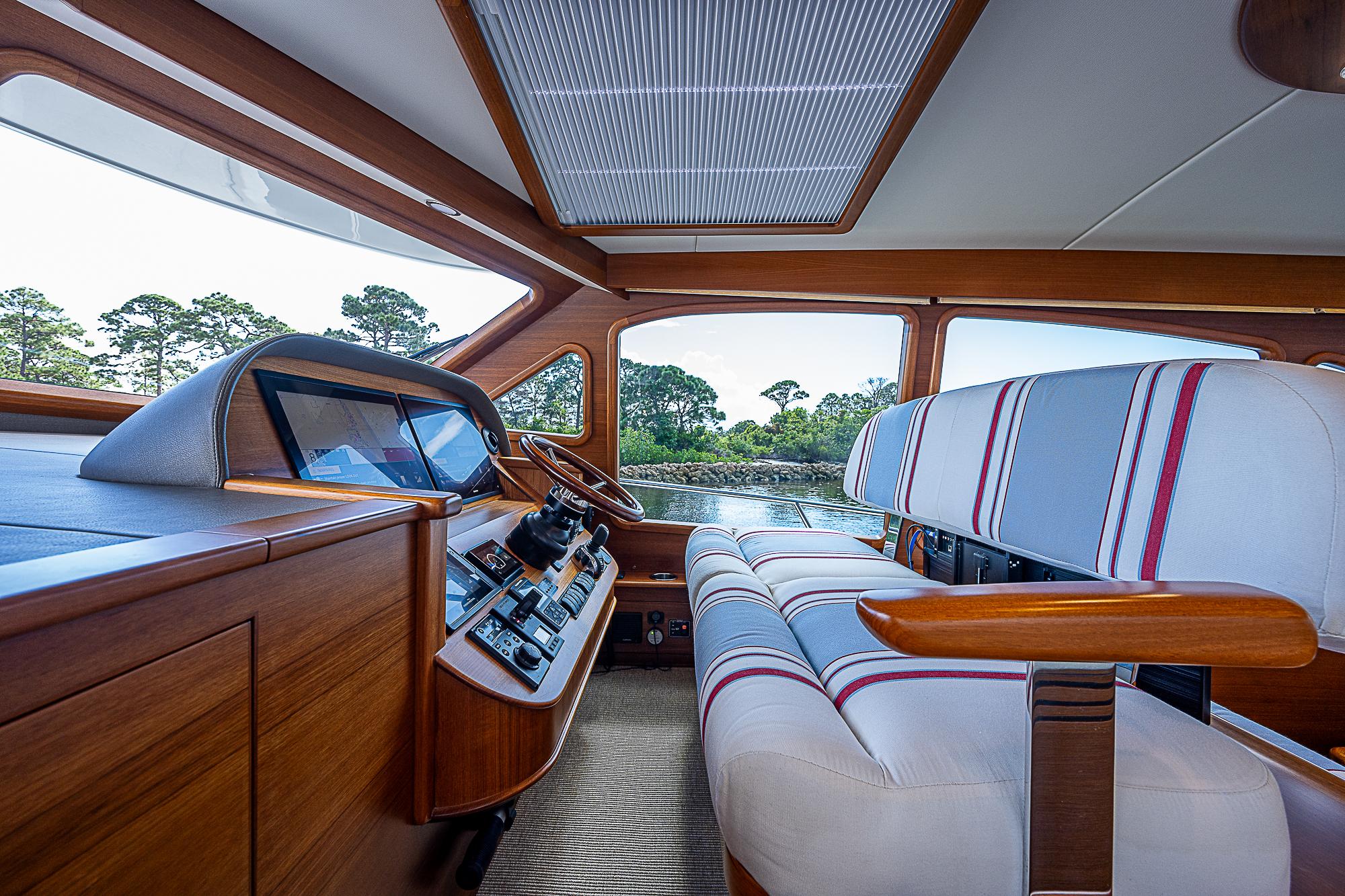

Ergonomically designed helm station, electronic instrument panel, teak steering wheel and custom helm seating Windscreen, clear tempered glass with (3) E-type pantograph wipers, 24V motors with synchronized variable speed control and fresh water washers

ELECTRONICS

GARMIN ELECTRONIC PACKAGE:

(2) 8617 Radar/Plotter Volvo 7" Display with Sonar Module Function Autopilot Garmin GMR Fantom 24” Garmin 315 Marine VHF Radio AIS 800 Garmin WiFi Night Vision/Thermal Camera - FLIR M625CS, Optional Upgrade

Rear-Facing Thermal PTZ Camera: Omn-Micro Thermal PTZ/Ulysses micro High-Performance compact marine thermal camera/night vision system, Optional Upgrade

(2) IRIS090 SS Wide Angle Camera for Engine Room (Inboard), Optional Upgrade Premium Forward-looking Sonar PANOPTIX PS51-TH, Optional Upgrade Additional Garmin GMI20 Instrument Display in Master Stateroom (on aft bulkhead), Optional Upgrade Spot/Searchlight: ACR ARTEX RCL-100 LED Cell or Wifi System: with Router/Modem Peplink Industrial-Grade 5G/4G LTE-A Cellular with two SIM cards in one modem. You can connect to Peplink to 2.4Ghz and or 5Ghz from the marina or get cellular internet from either sim card if no WiFi is available; Peplink White Quad element 5G cellular dual element dual band IP67 Omni 7-in-1 4X4 Mimo LTE 2x Wifi/GPS SMA, Optional Upgrade

Siren Marine Monitoring System: ultimate smart boating experience keeps you connected to your boat 24/7 with following features: GPS Position/Geofence Tracking, NMEA 2000, Automated light switching (underwater lights), Main Battery monitoring & switching, Shorepower monitoring, Engine status monitoring, Bilge Pump monitoring (engine, midship, forward & aft), Fuel Level monitoring, Freshwater monitoring, Black Water monitoring, and Security (Rear Door Entry monitoring), Optional Upgrade

ENTERTAINMENT

Salon: Fusion Apollo MS-RA770 Stereo system with Bose Acoustimass 5 Cockpit: Fusion MS-NRX300 with marine amplifier, Fusion subwoofer, Bowers & Wilkins Marine Speakers Additional High quality marine speakers in cockpit, Optional Upgrade Retractable Samsung 43" HDTV in Salon Samsung 43" HDTV in Master Stateroom Samsung 43" HDTV in Forward VIP Stateroom, Optional Upgrade KVH HD7 Sat TV, Optional upgrade

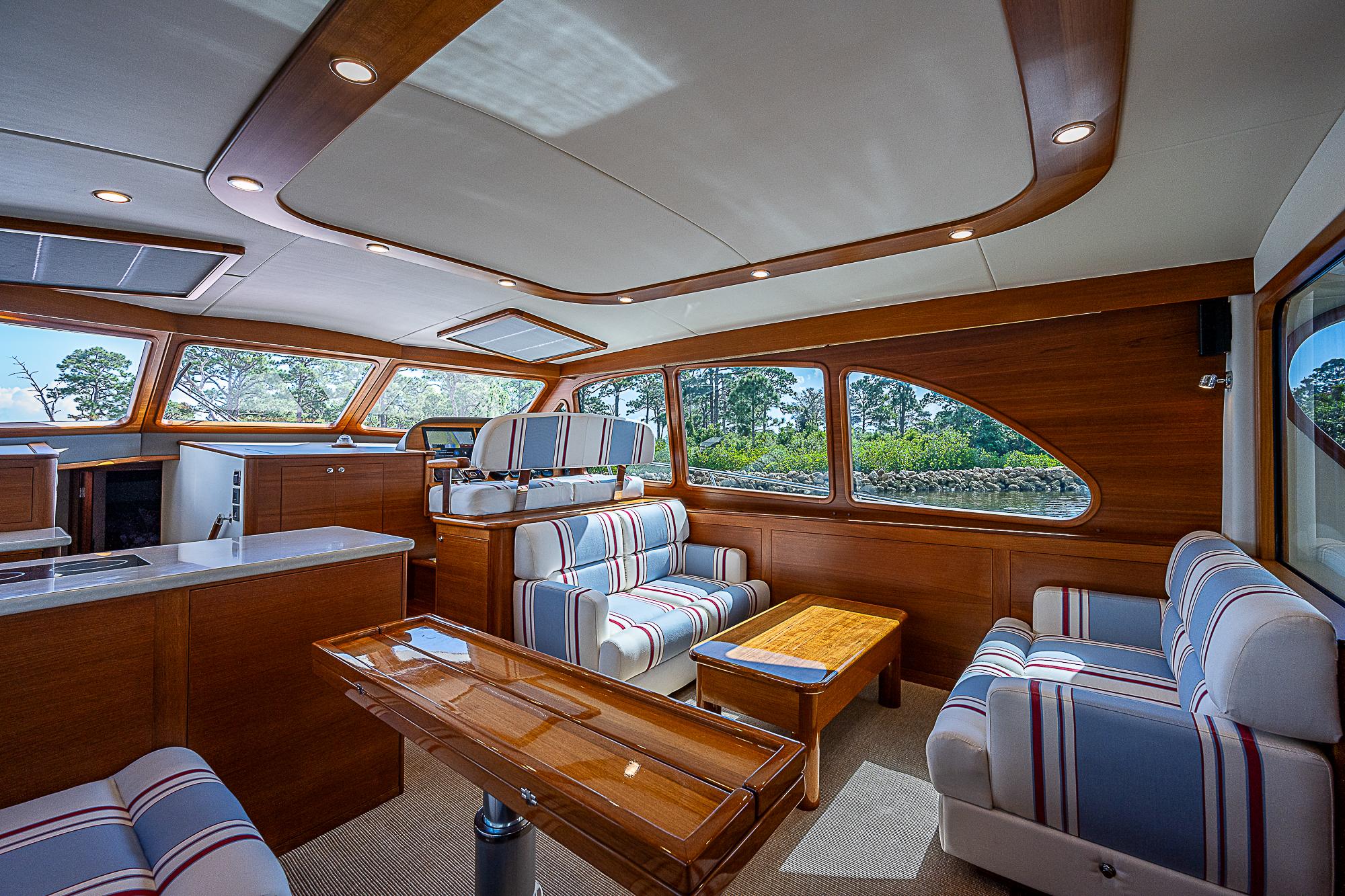

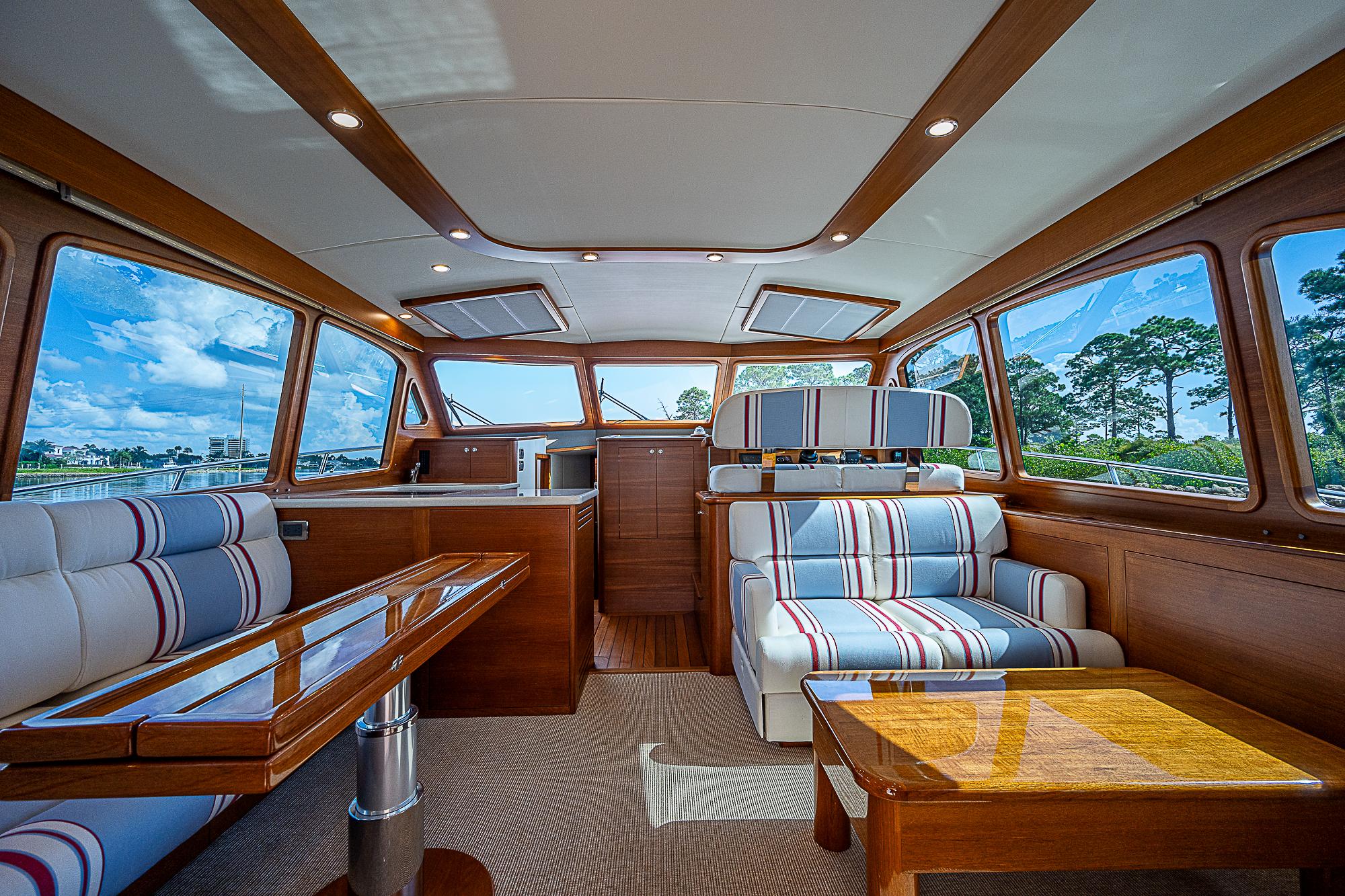

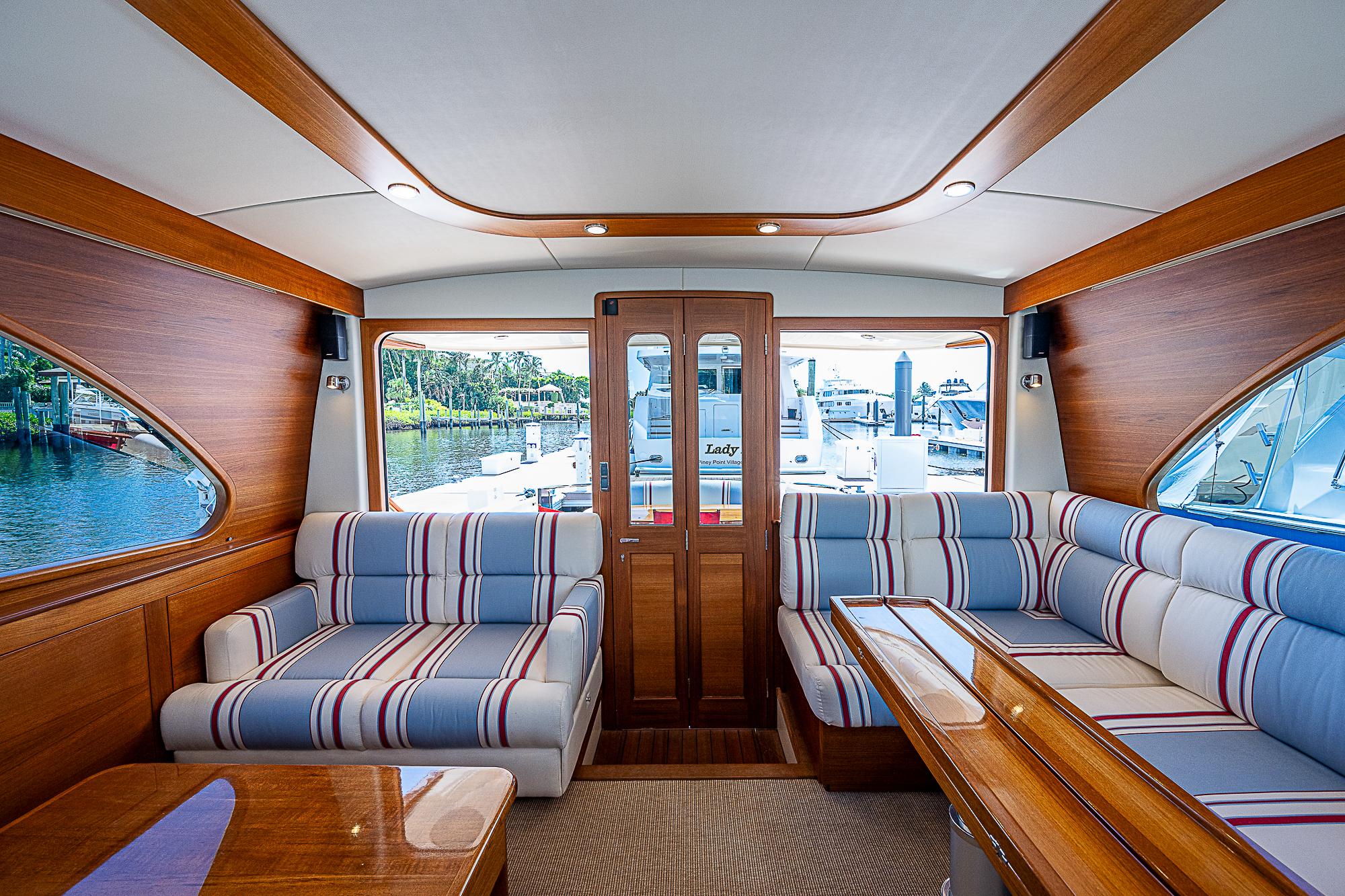

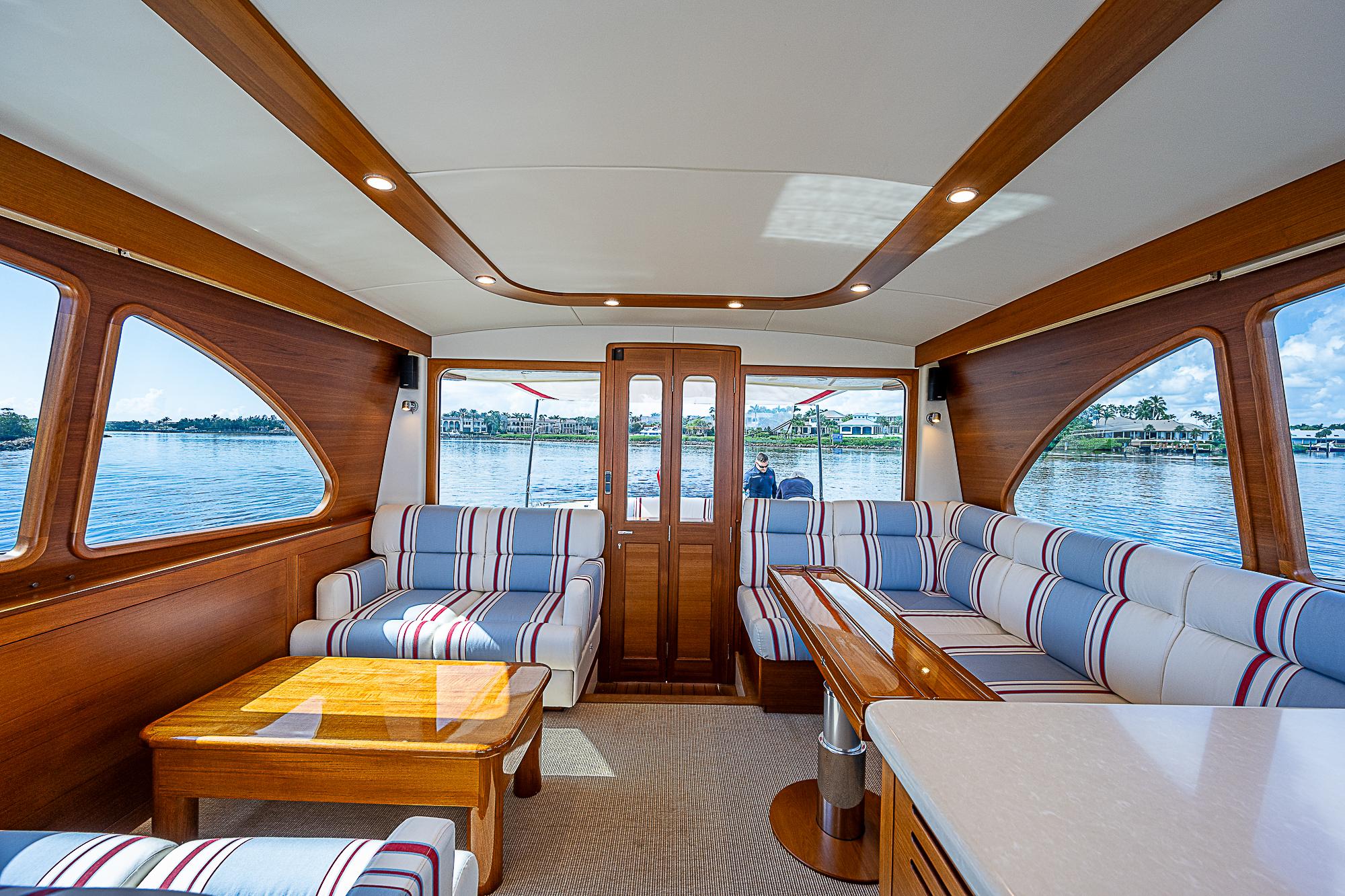

SALON

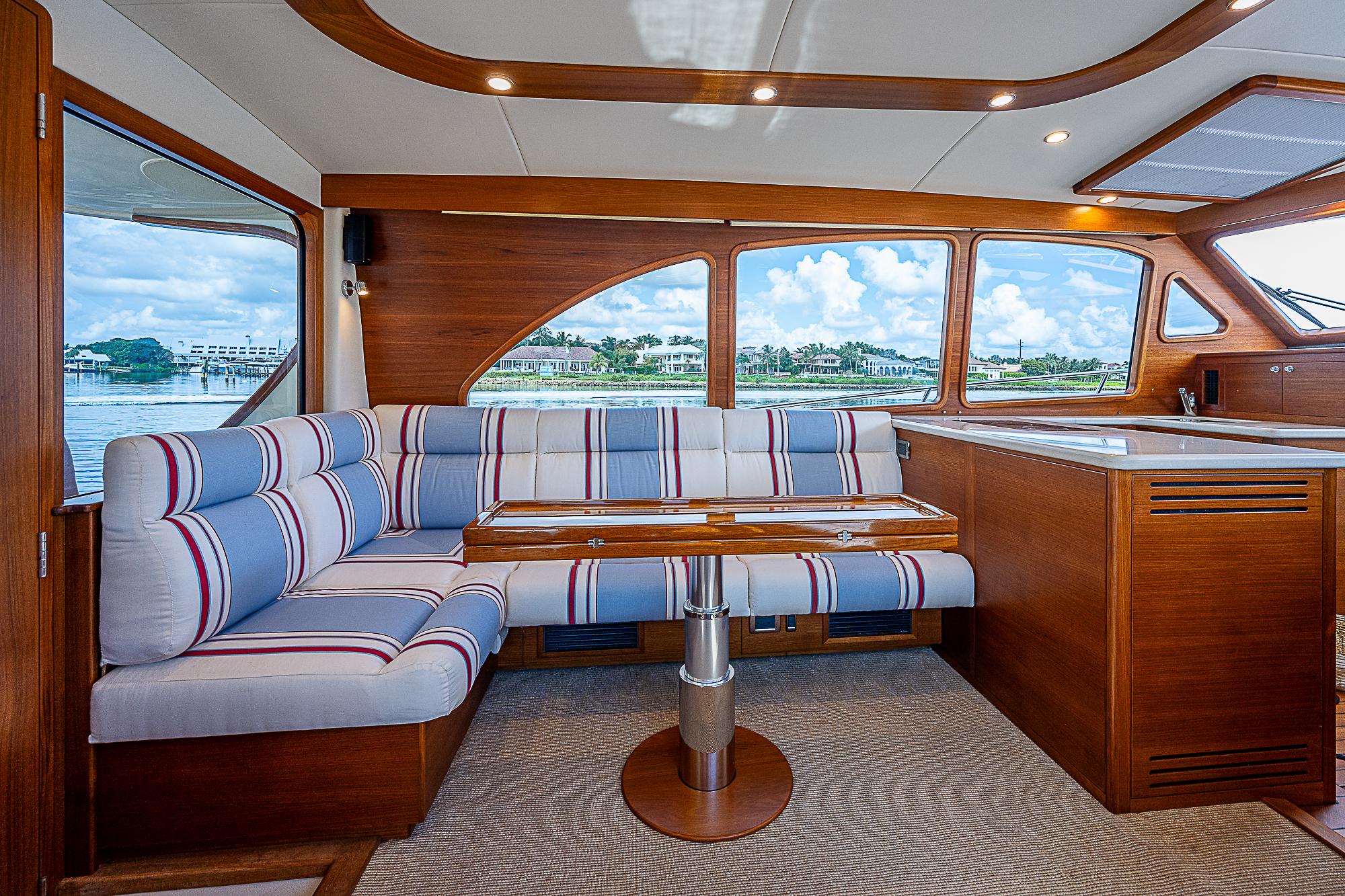

Custom carpet salon with acoustic underlay, Martinique CBD5/0001 Dune Custom Canvas Runner for Salon Carpet in Sunbrella “Brass” Teak sole on salon landing Custom Ultraleather upholstery LED overhead lighting Solid teak cabinetry with satin finish Storage lockers positive locking hardware Teak Hi-Lo Table, high-gloss varnish with double lift-up leaf's and ATEP Telescopic electric pedestal, Optional Upgrade Retractable Samsung 43" HDTV Poseidon Blinds with Valances on all Salon Window (except fwd windshield), Optional Upgrade

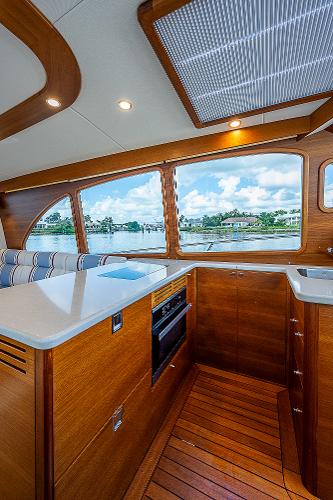

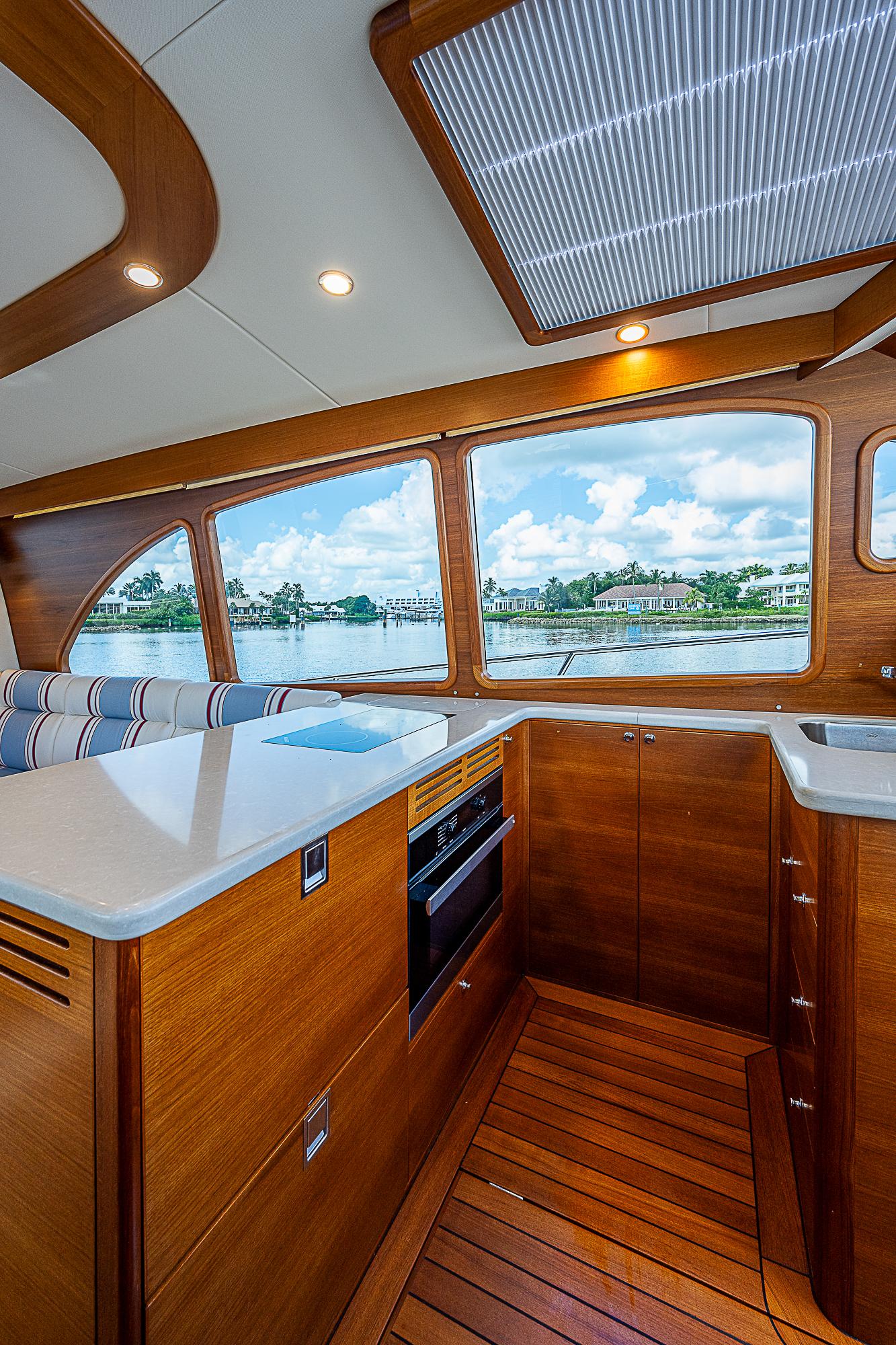

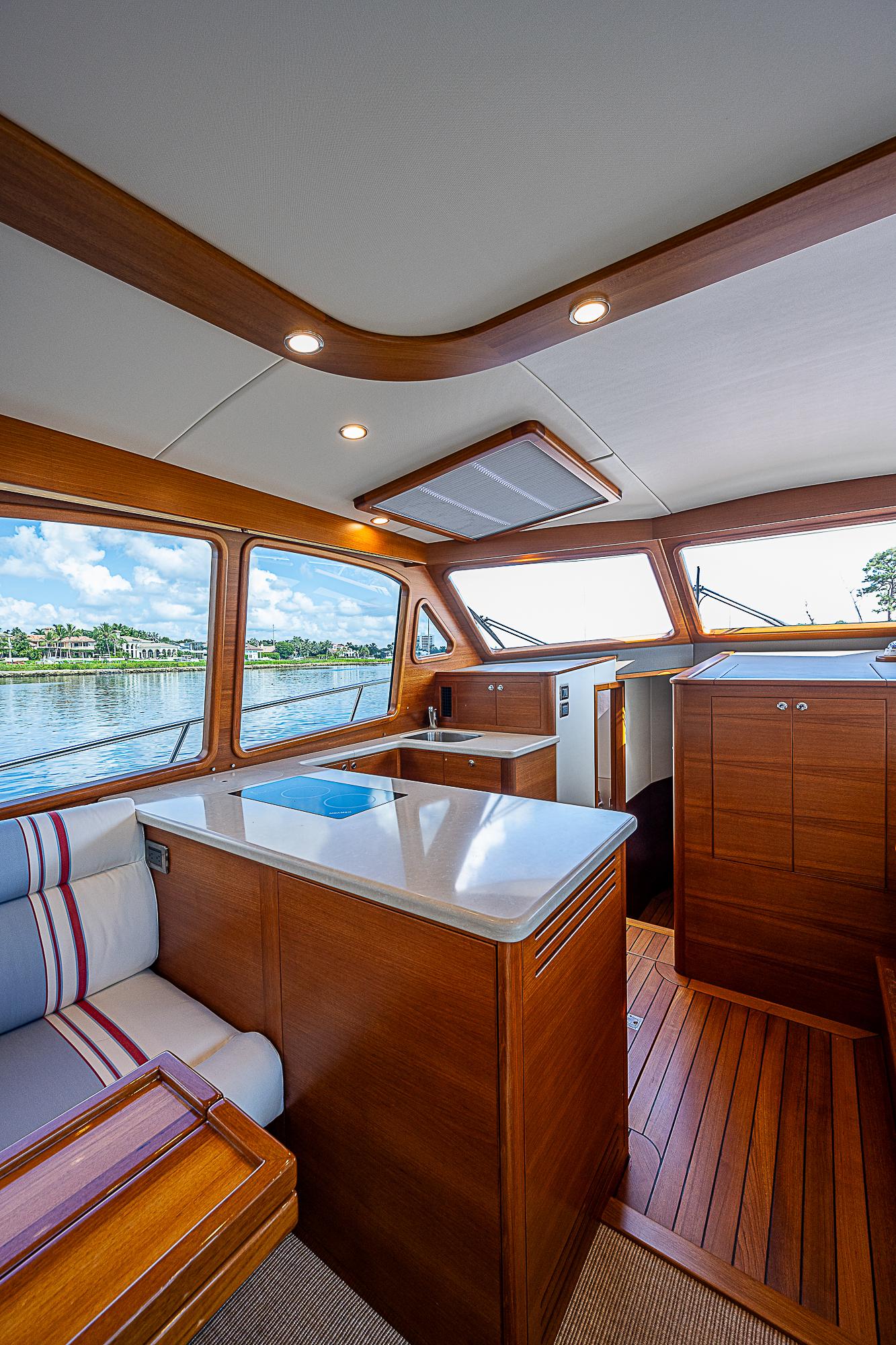

GALLEY

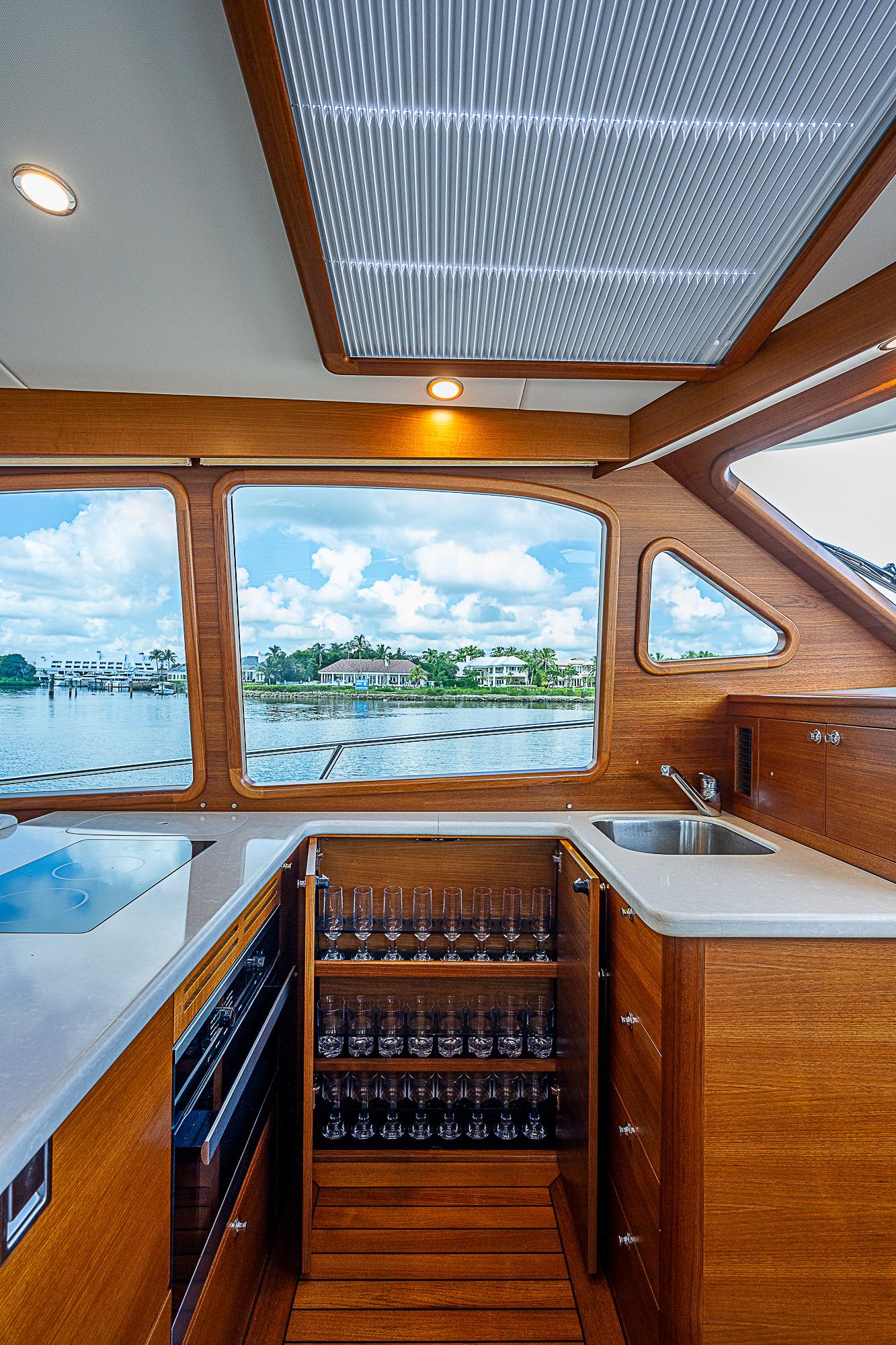

Teak sole Cooktop, Kenyon Silken B81325 2-burner Induction cooktop Microwave/convection oven, stainless steel, Miele Speed Oven H 6200BM LED overhead lighting Refrigerator AC/DC compatible Under-bench recessed disposal bin with Silestone cover Solid Silestone countertop "Tigris Sand" with recessed stainless steel sink, designer faucet Plate rack with cupholders Trash Bin - Willow 30L White Slide Top Tidy Bin Water purification system 3M high-flow series microbiological purifier with faucet

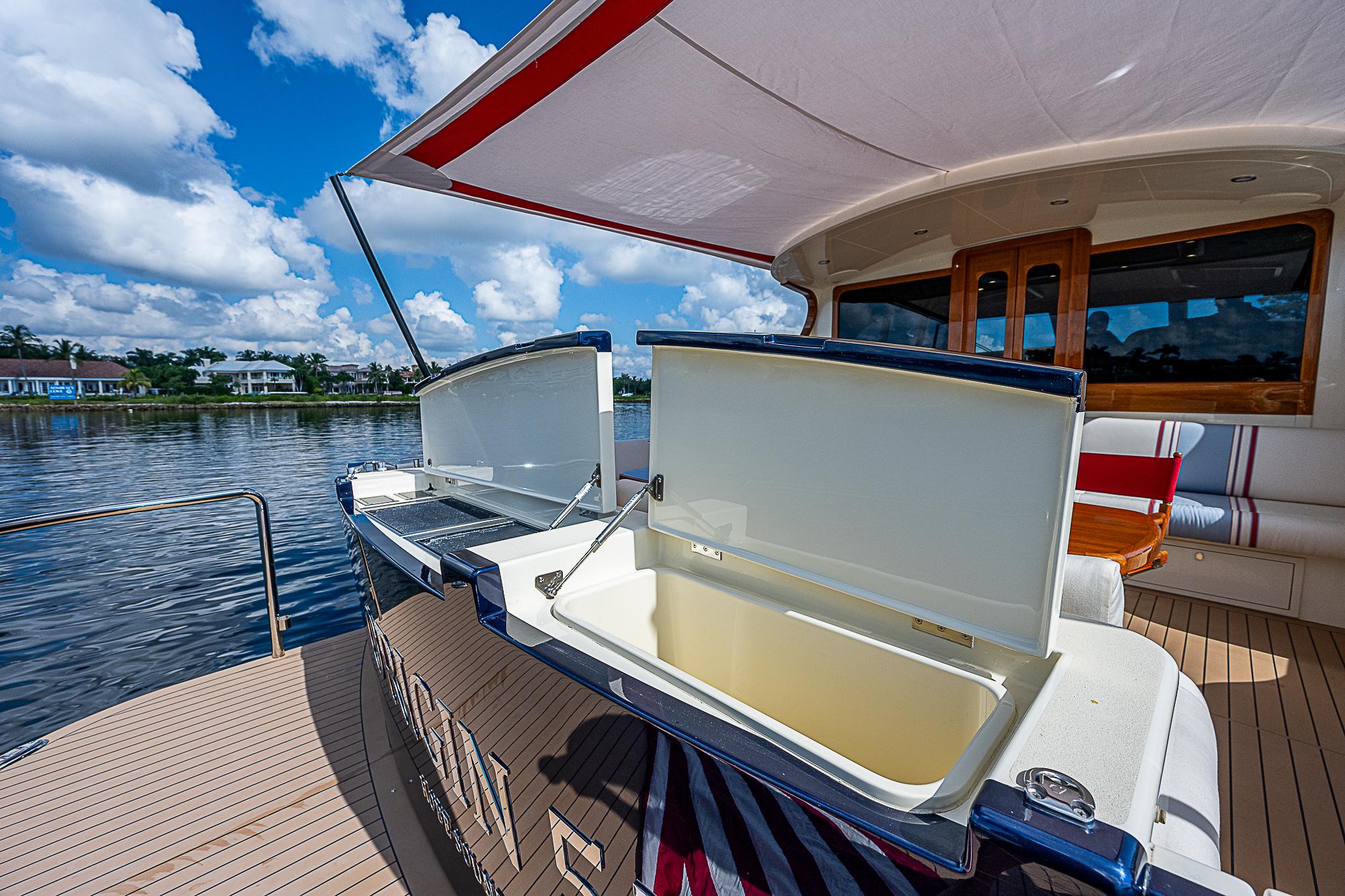

COCKPIT / EXTERNAL

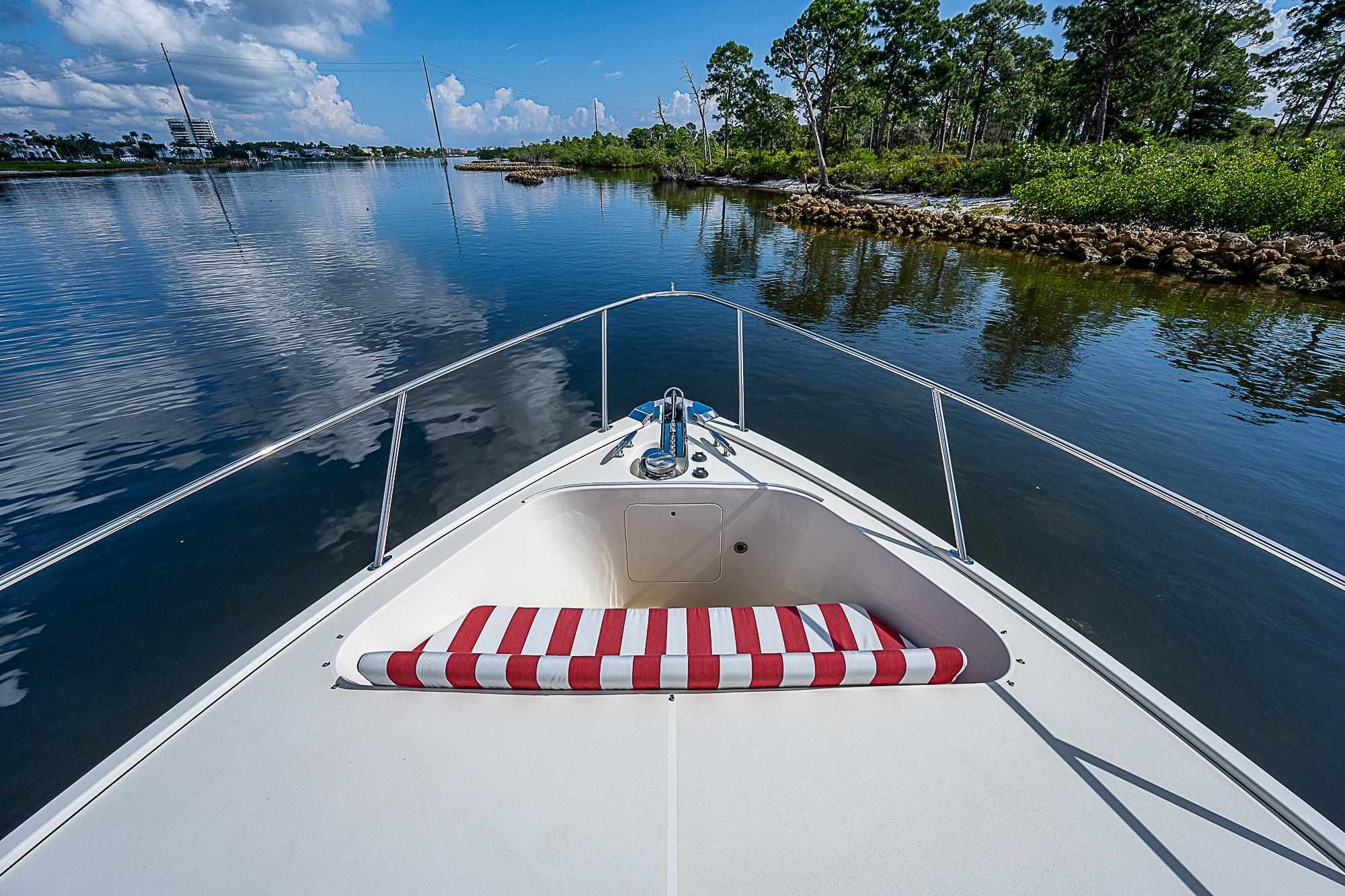

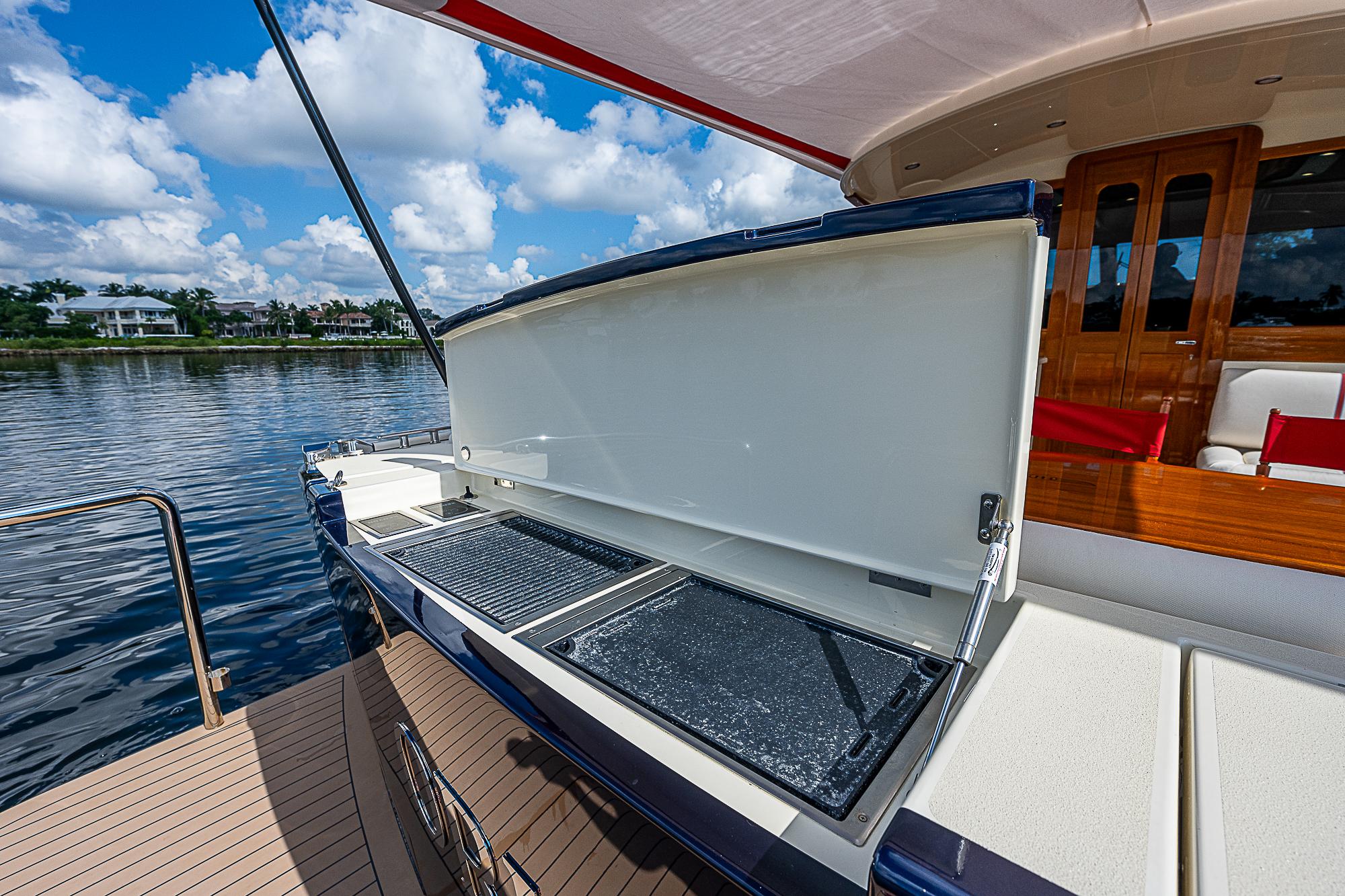

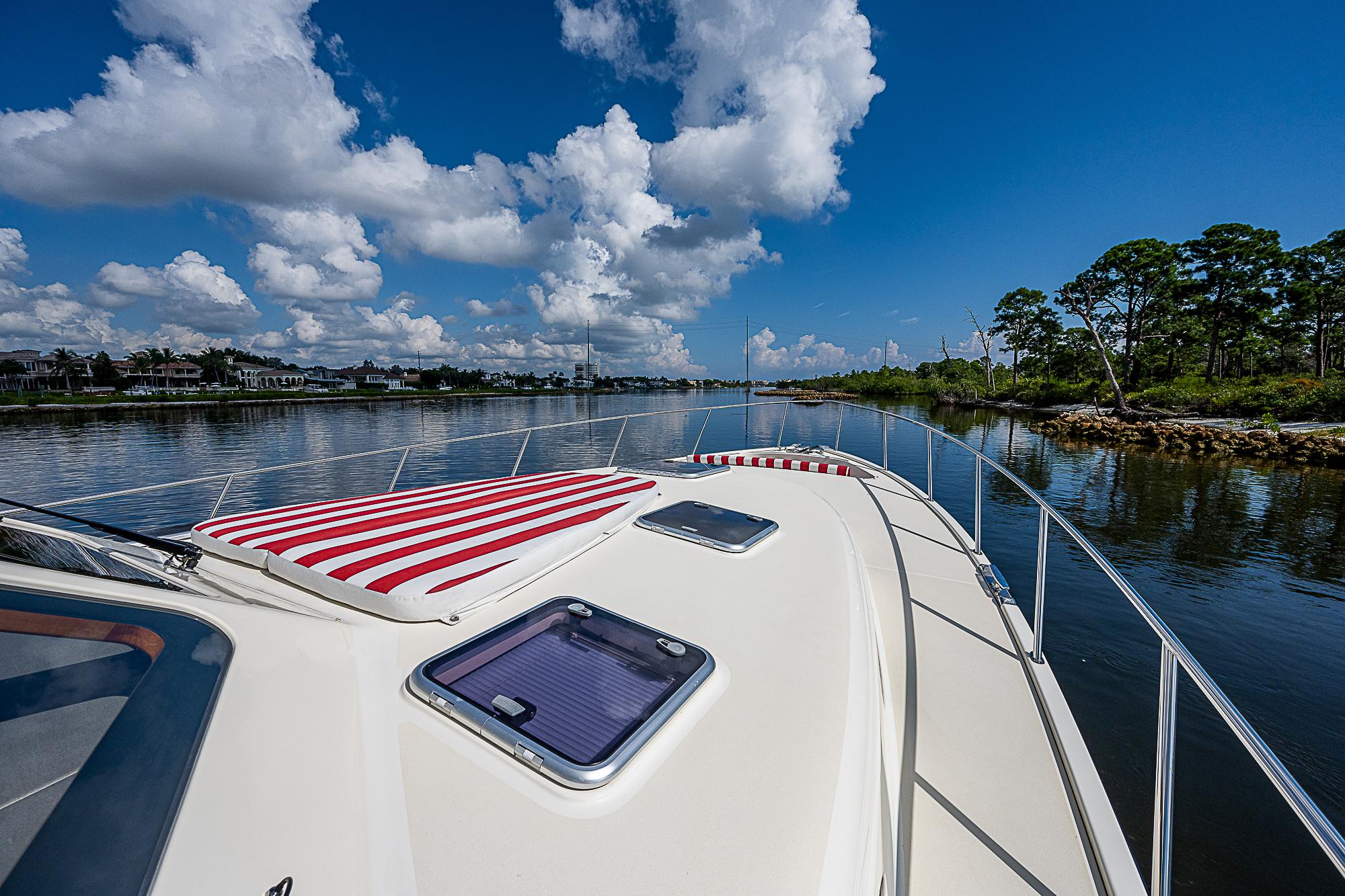

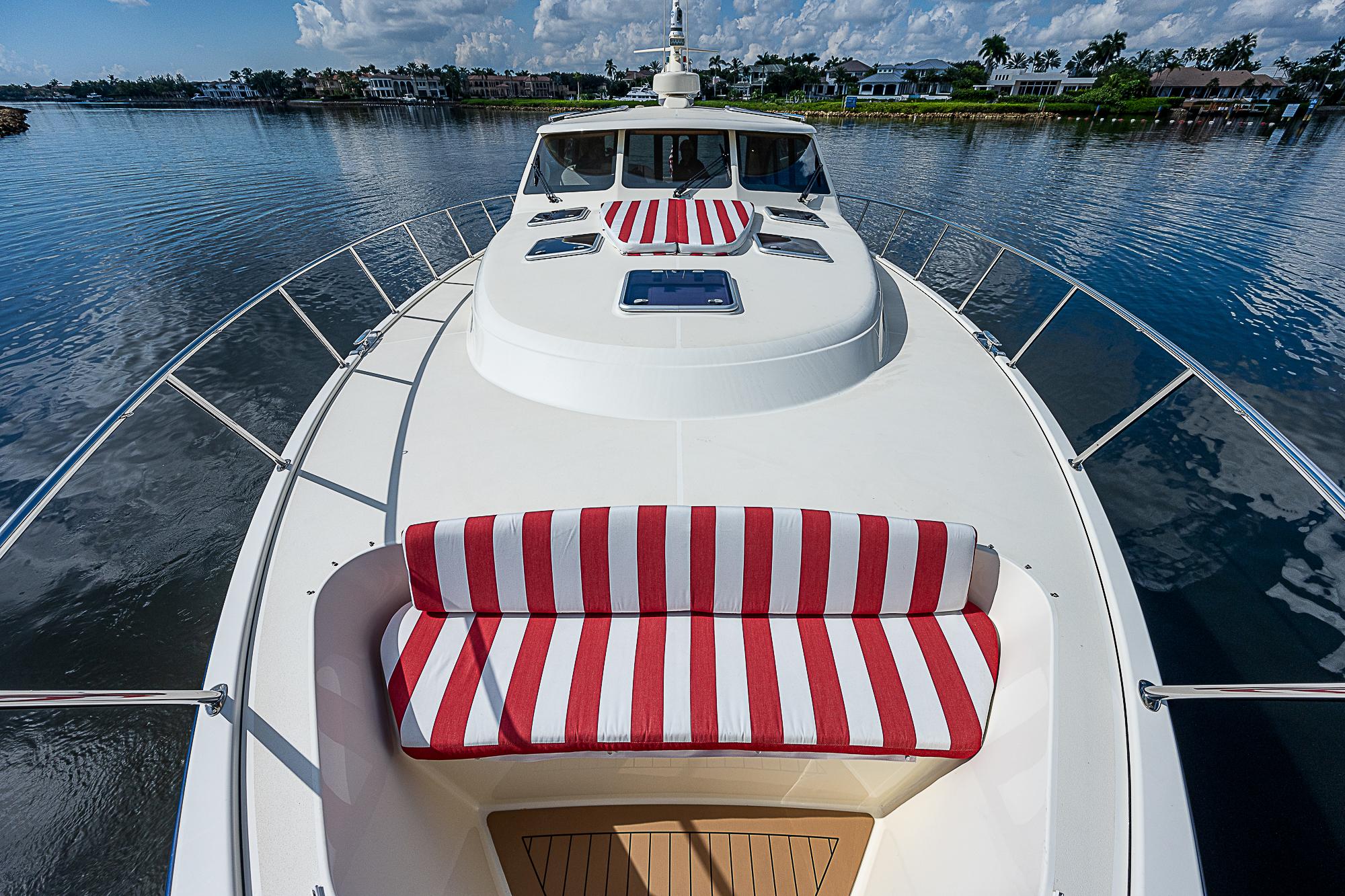

Antifouling paint: Micron Extra 2 #YBC 704 “Black” Non-Skid on Sidedecks and Foredeck Volvo Penta Anti-Corrosion Protection at Transom (2) "Blue" Aqualuma 18 Series Gen 12 Underwater Lights, Optional Upgrade (4) Smeralda Italian Deck Chairs, Optional Upgrade Bow Rider with seat cushions & Esthec “Biscuit” flooring, includes cover/awning, Optional Upgrade Bow/Foredeck Sunpad, on cabin trunk with canvas cover, Optional Upgrade Self-launching stainless steel 27kg Ultra anchor, with 50m of chain and 60m of rope, bow roller and large anchor locker Electric anchor windlass with remote at helm Sun Awning, removable awning  with carbon poles, Optional Upgrade Barbeque – Kenyon B70360 120V remote electric grill at aft cockpit coaming (port) with hinged FRP lid Custom Transom Storage at coaming, stbd to Barbeque with hinged FRP lid Forward facing cockpit seat with teak table finished in high gloss varnish Esthec “Biscuit” cockpit floor with day hatch to tender garage Tender garage with 10’ 3” Sirocco RIB-FG 310 tender with Honda 15hp 4-stroke outboard motor with electric starter Transom flag with varnished flagpole Cockpit courtesy lights Cockpit shower with fresh hot/cold water Cockpit wet bar with Silestone counter "Tigris Sand" with AC/DC refrigerator, sink, storage Designated glassware cabinet Double transom doors Extended teak swim platform with Esthec “Biscuit” flooring Swim platform safety rail with triple stainless steel movable stable rails, Optional Upgrade Dock lines (6) and fenders (3) with covers Fresh water washdown (bow) Gas struts on all deck hatches Hatch and windscreen covers Mooring cleats stainless steel—aft quarter, mid, & bow Navigational mast Marine-grade upholstery with Sunbrella canvas storm covers Stainless steel safety handrail, full bow rail and single swim platform rail Stainless steel name plate on transom Toe rail, painted composite, PB Cream Textalene Covers for Forward Windshields

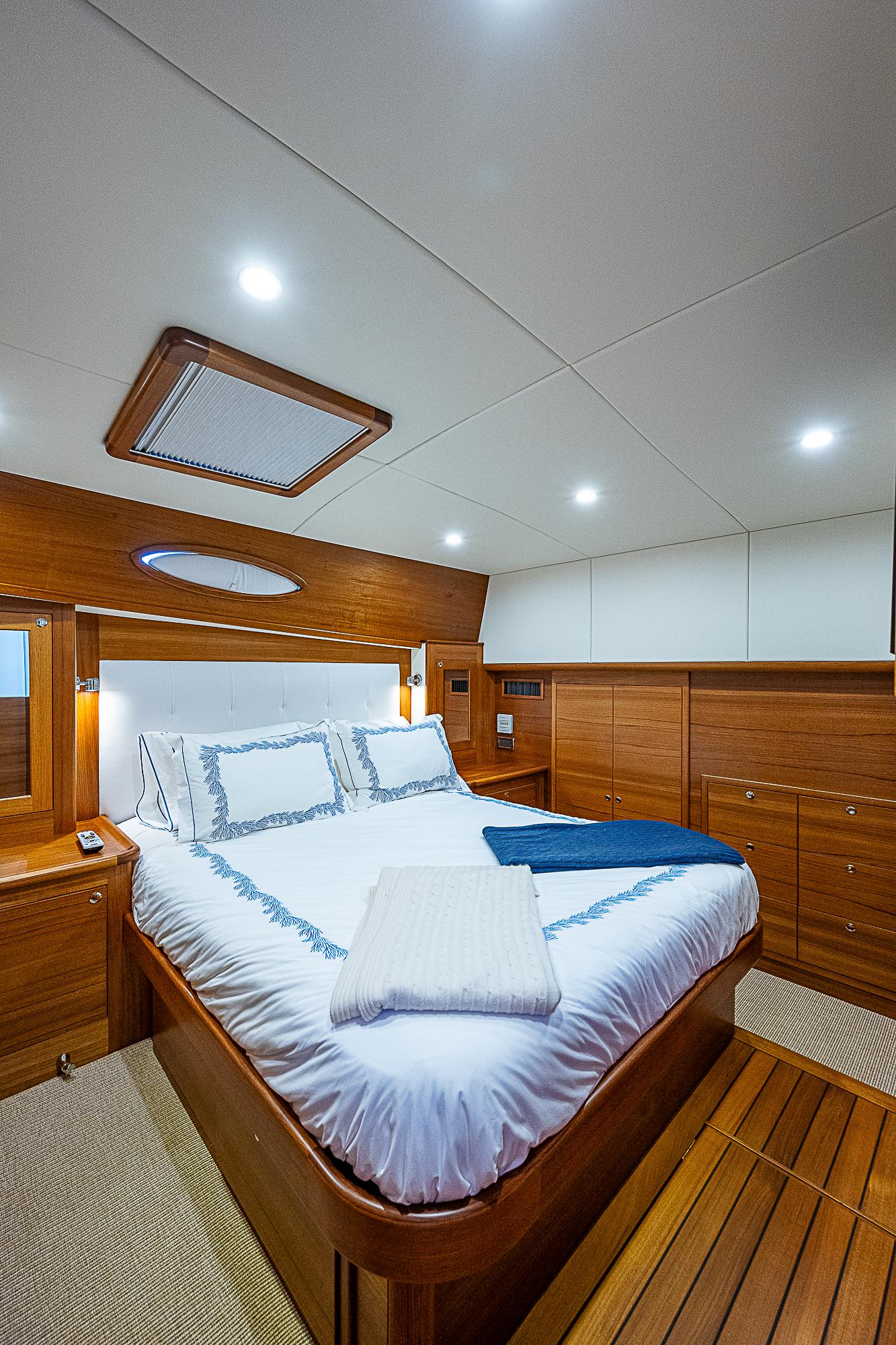

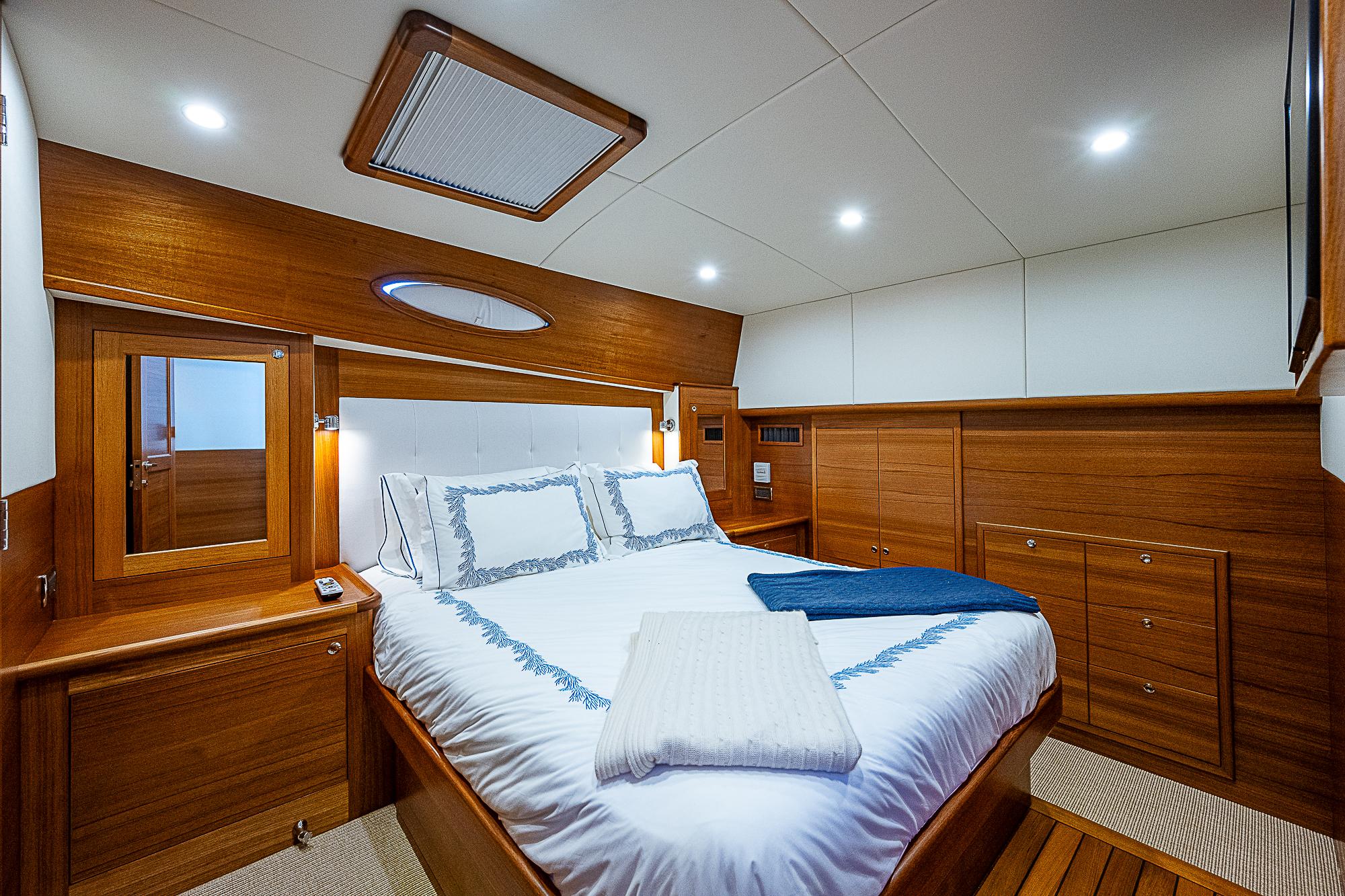

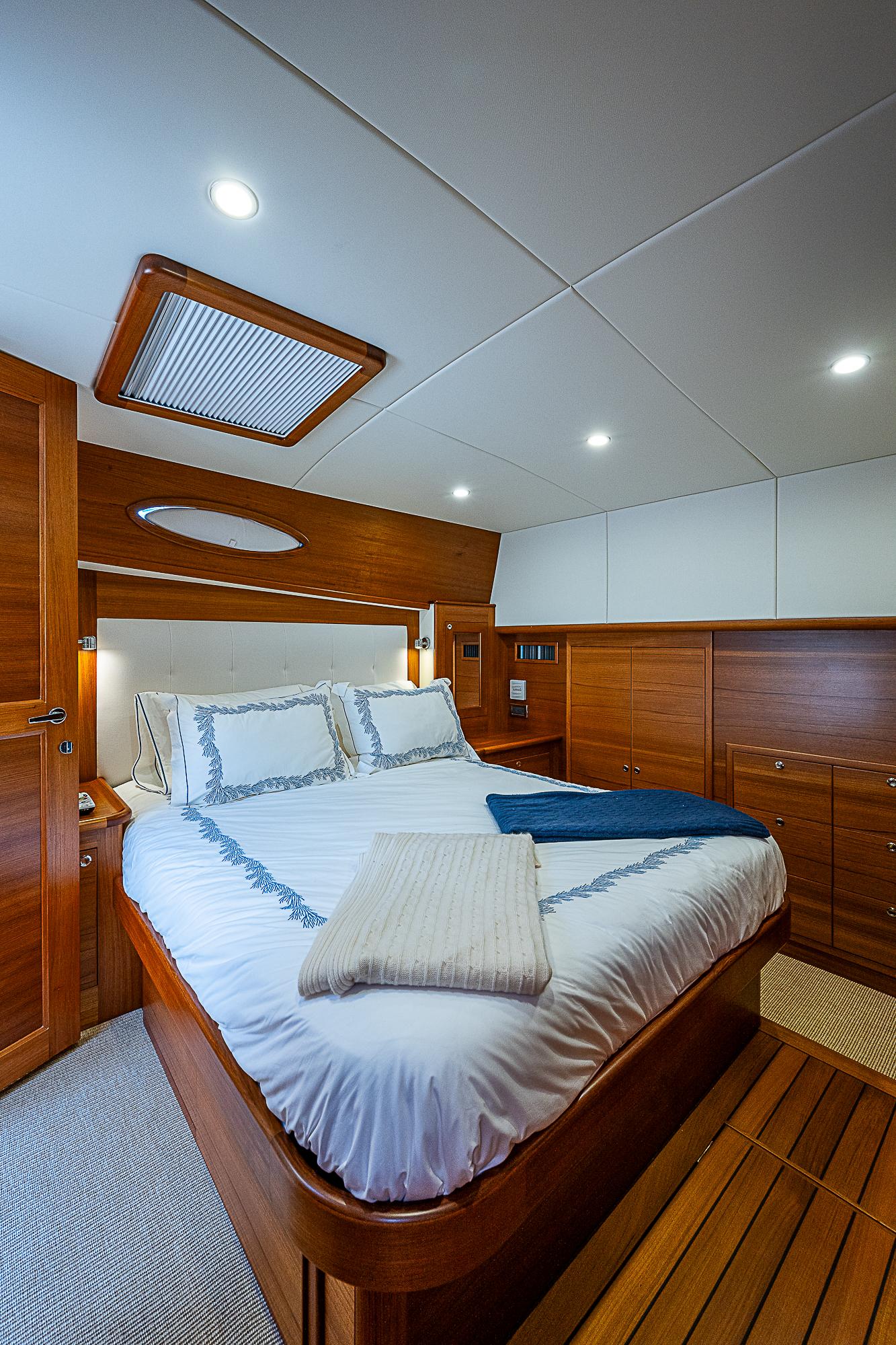

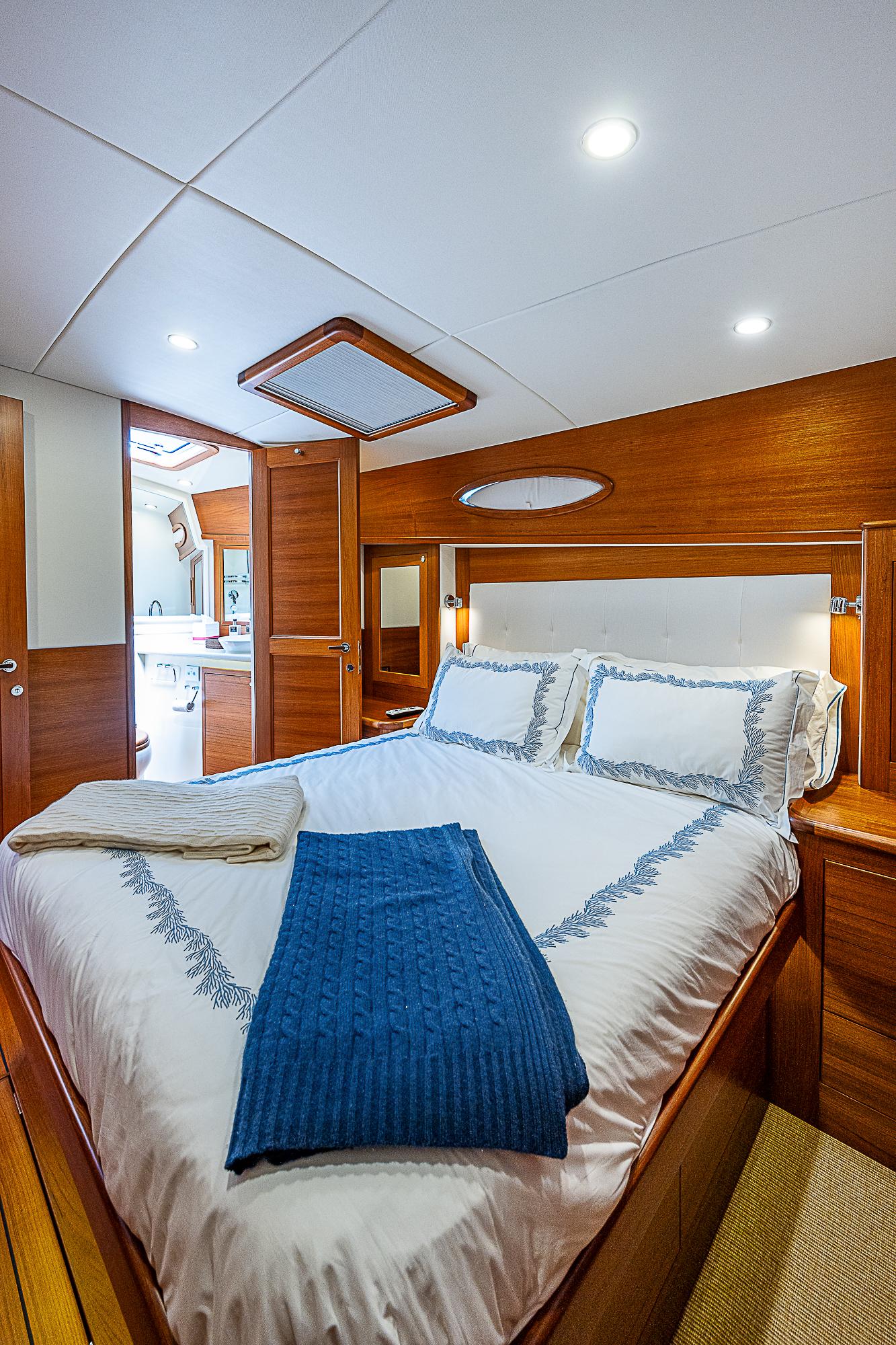

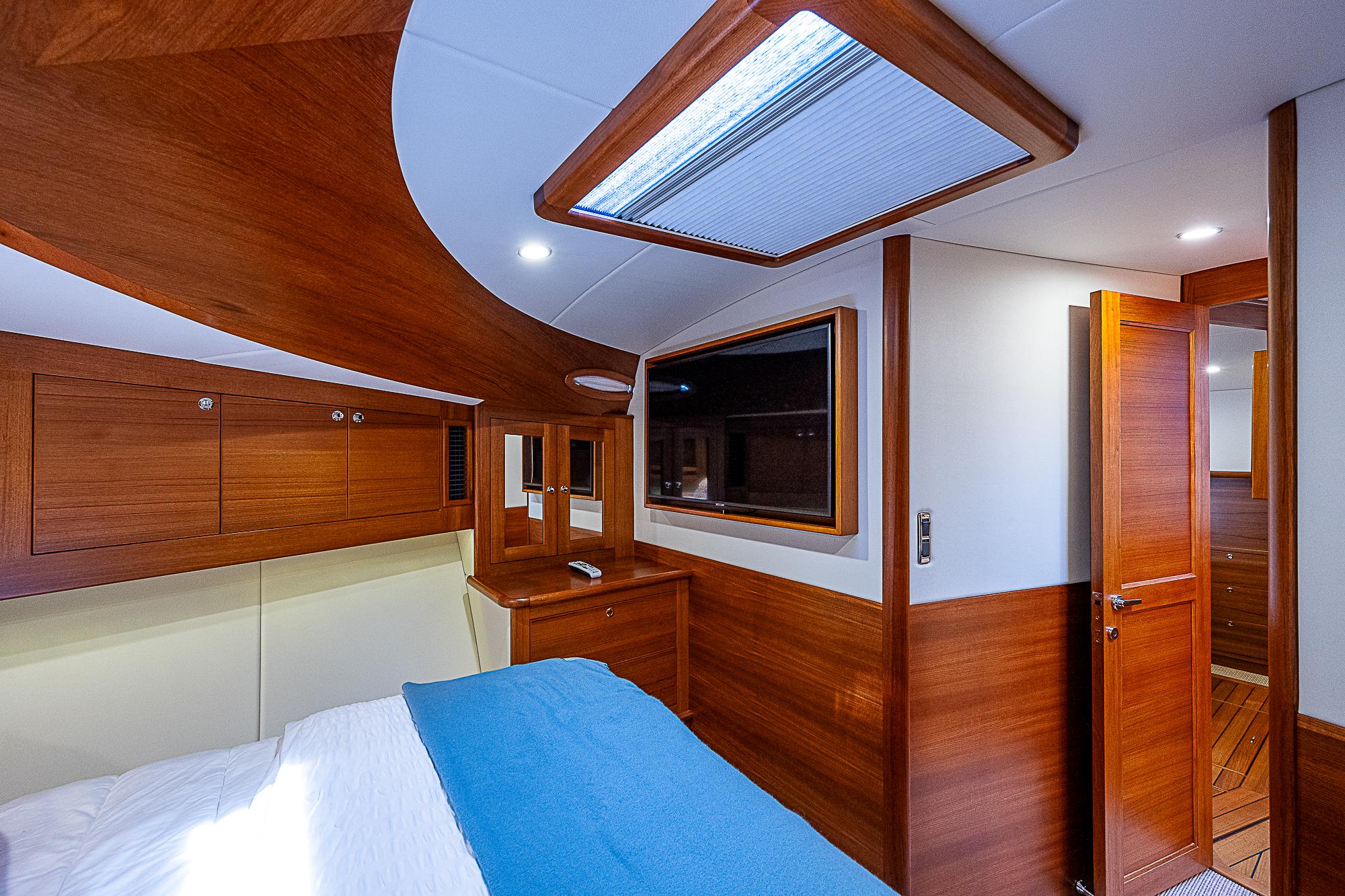

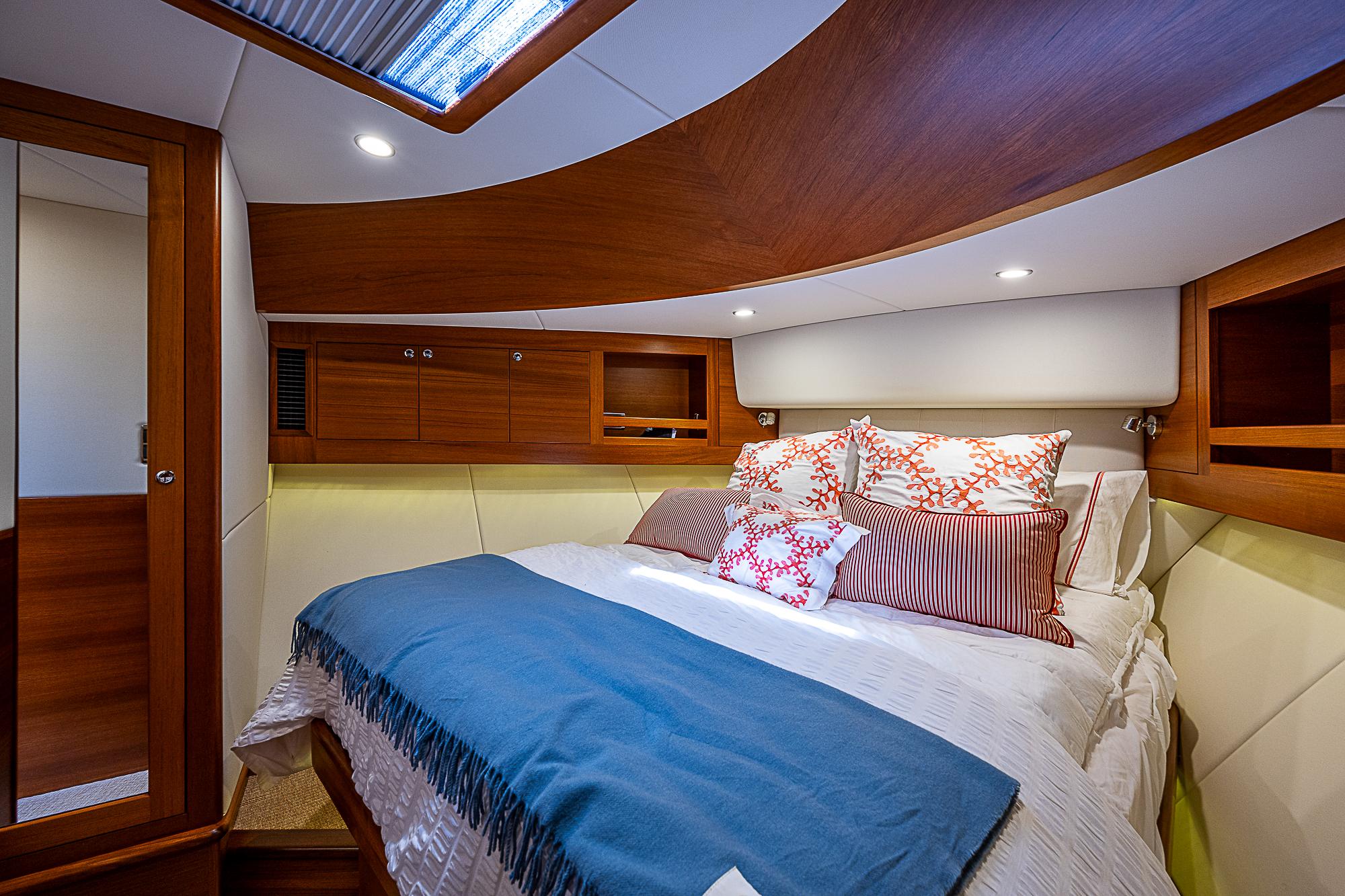

MASTER STATEROOM

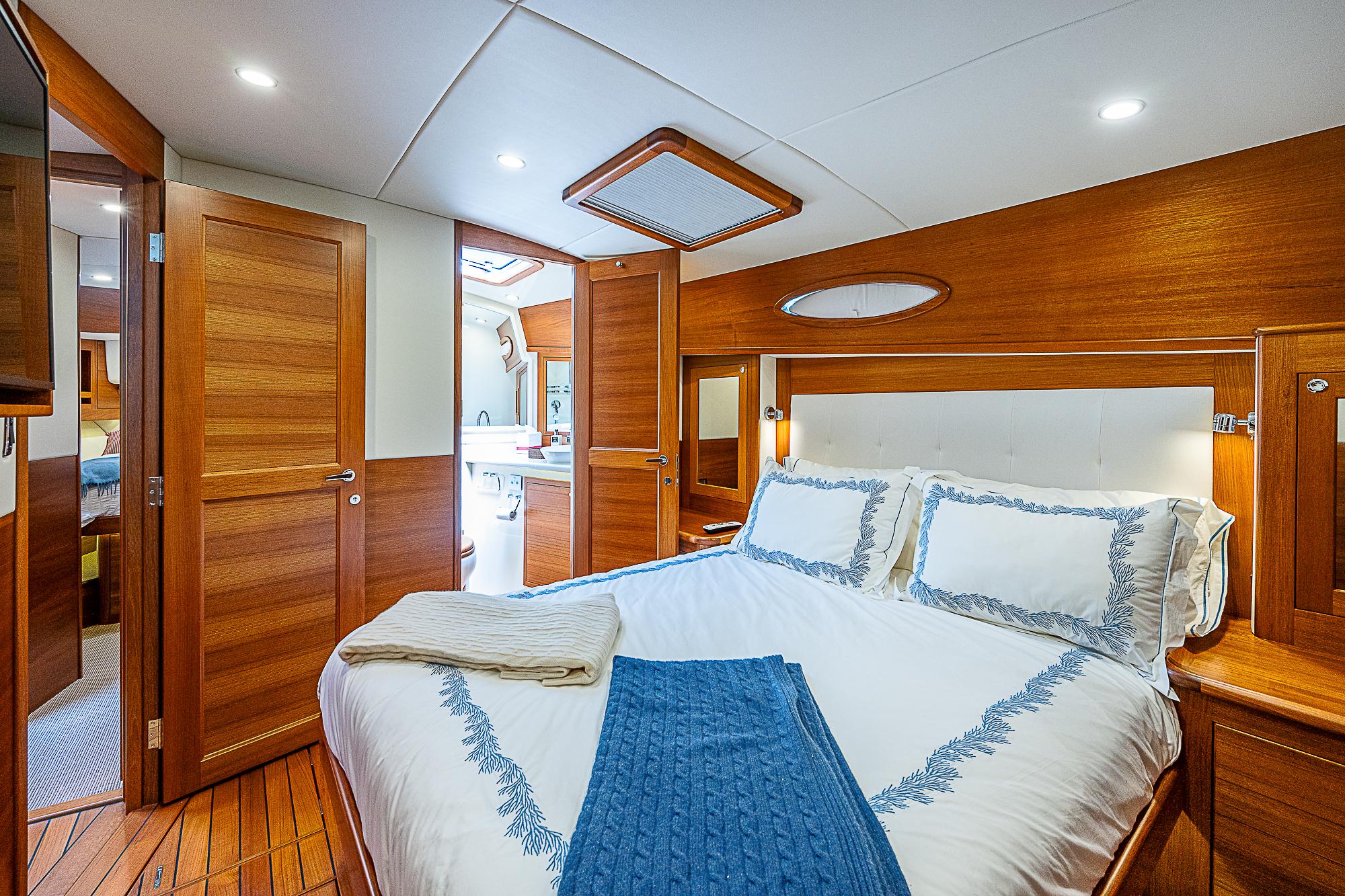

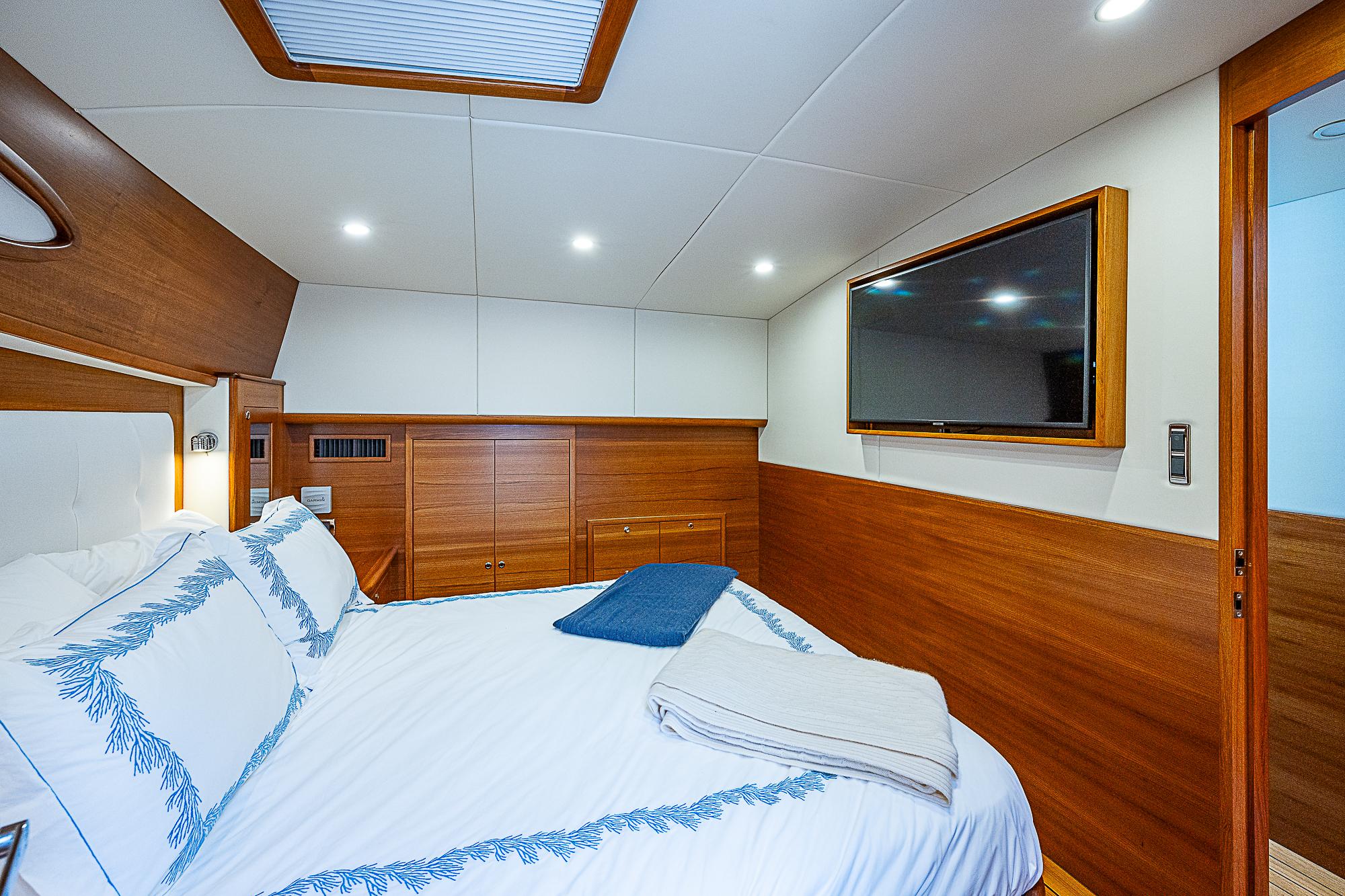

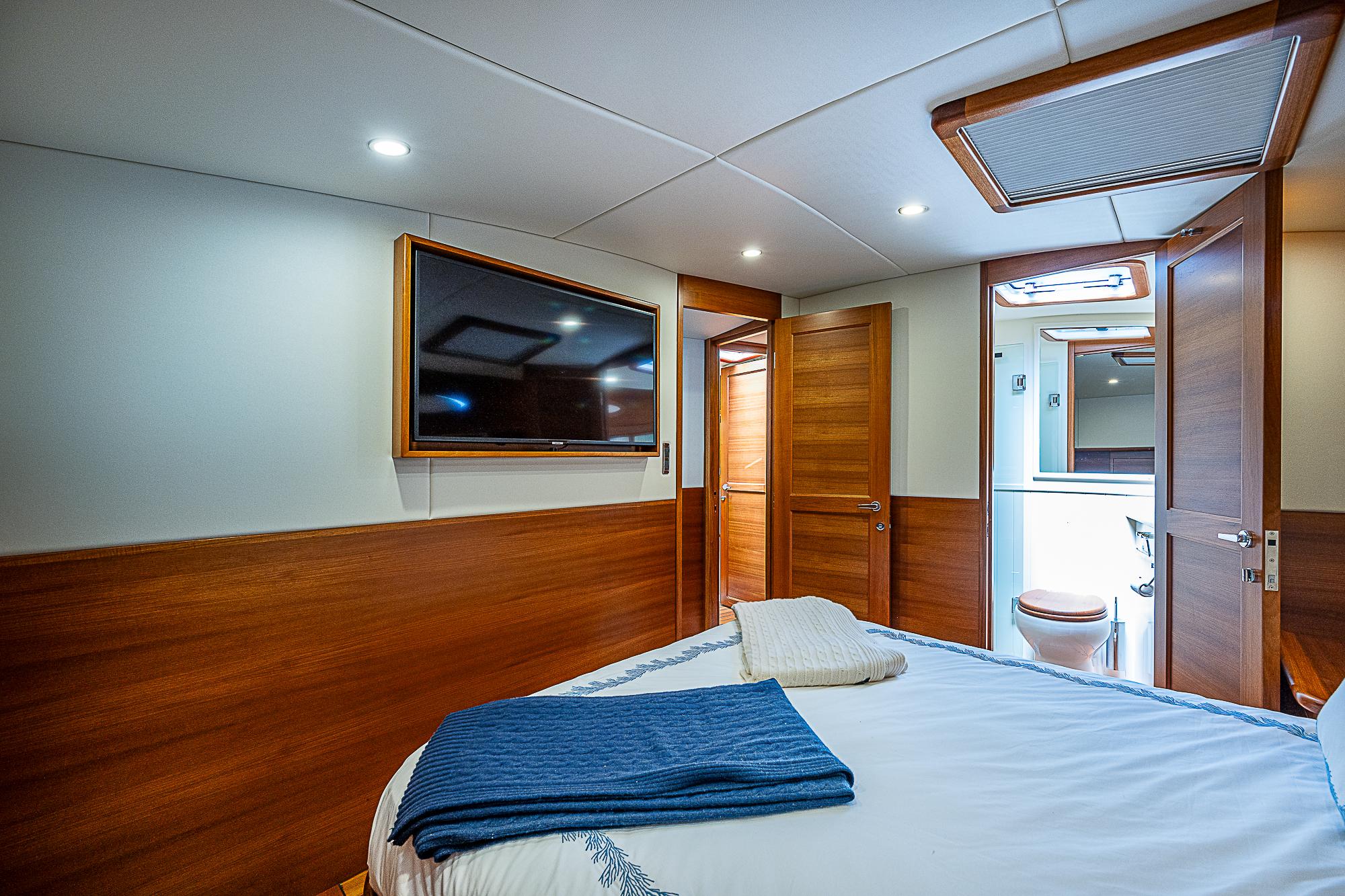

Custom queen-sized island berth  located mid ships with  memory foam mattress Custom carpet with acoustic underlay, Martinique CBD5/0001 Dune Hanging locker with storage and mirrors LED overhead lighting Premium quality custom upholstery Reading lights Solid teak cabinetry with satin finish Overhead hatch with privacy blind and screen Storage lockers with positive locking hardware Under berth storage drawers Samsung 43" HDTV Additional Garmin GMI20 Instrument Display on aft bulkhead, Optional Upgrade

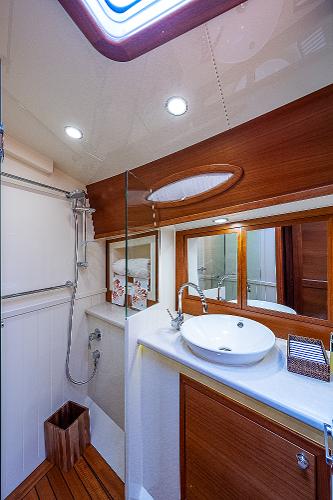

MASTER HEAD

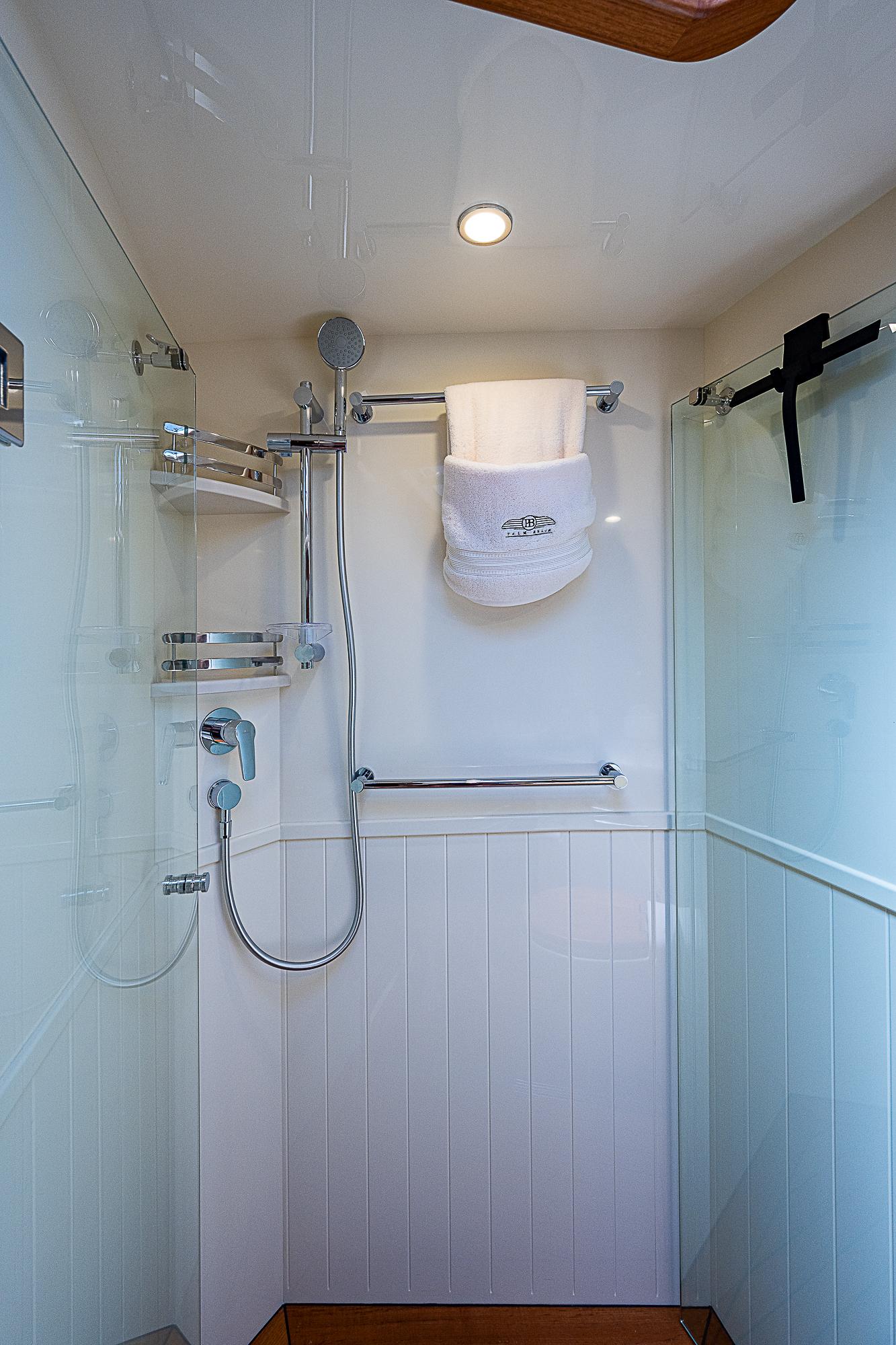

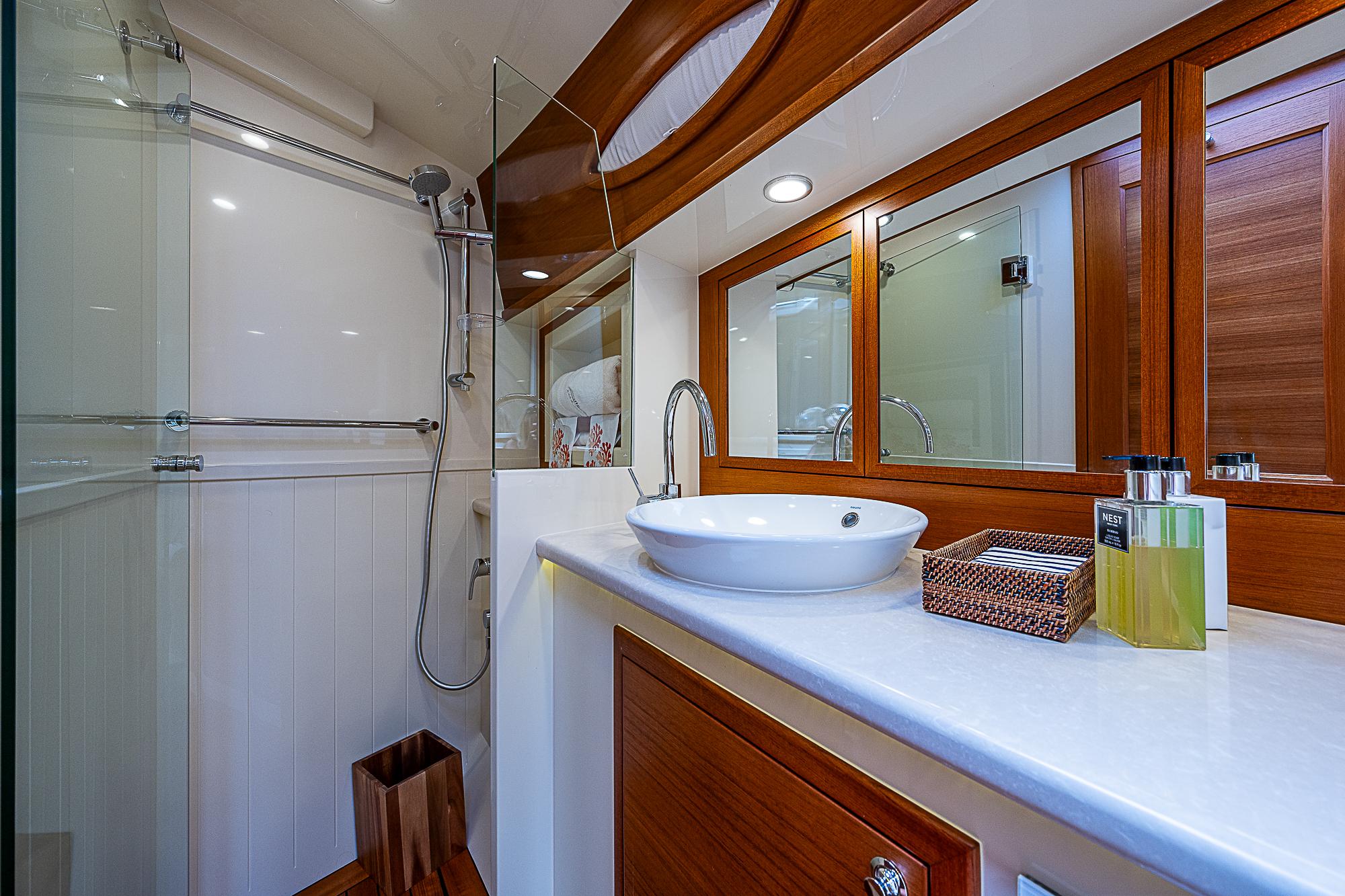

En suite, fully enclosed comprising of a shower stall with glass partition, frameless glass door and teak flooring. Vanity cabinet incorporates a solid Silestone top, mirror, storage, porcelain basin and designer faucet.

Tecma Silence Plus toilet with teak seat Chrome towel rails (1)

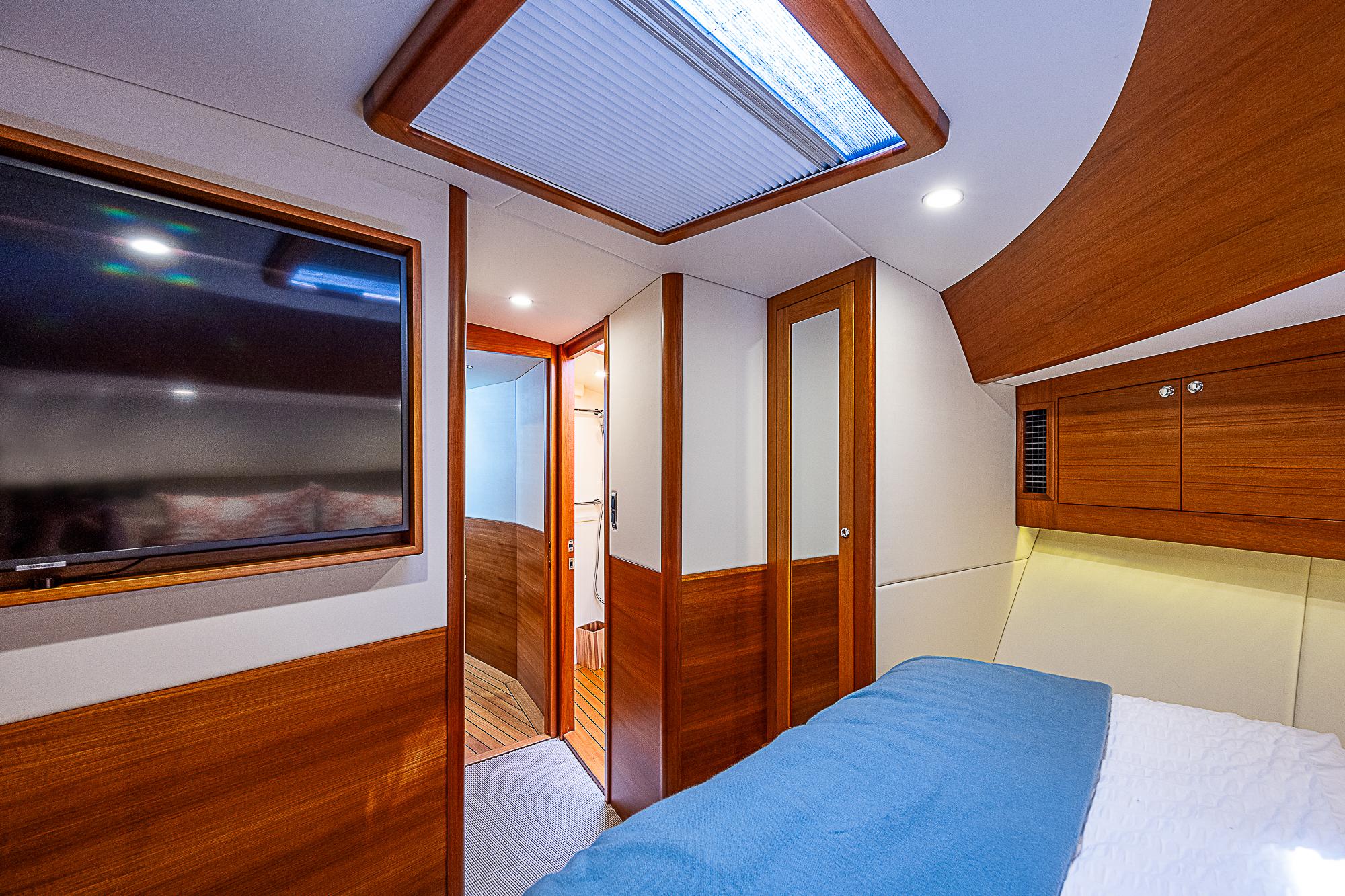

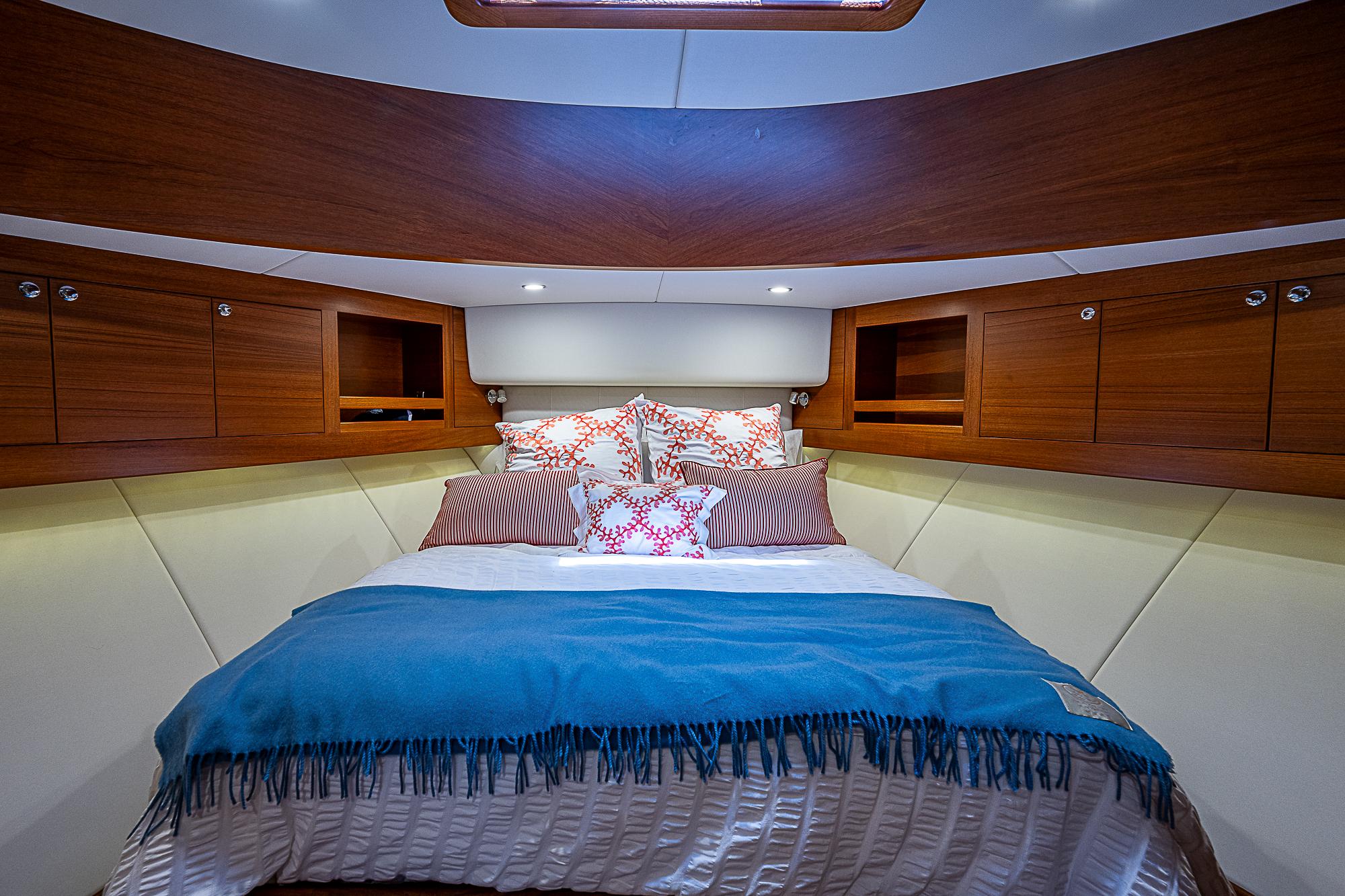

VIP STATEROOM

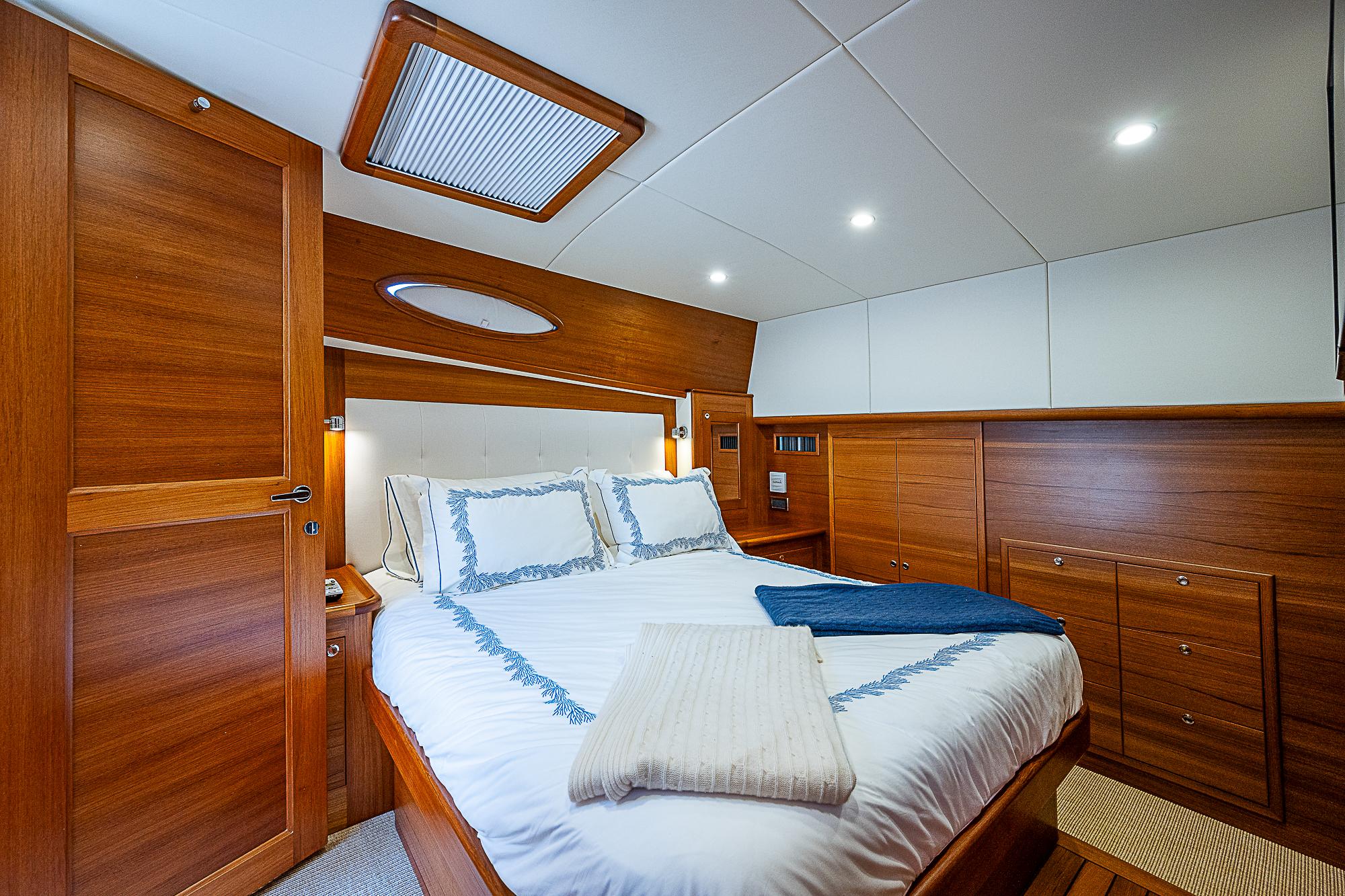

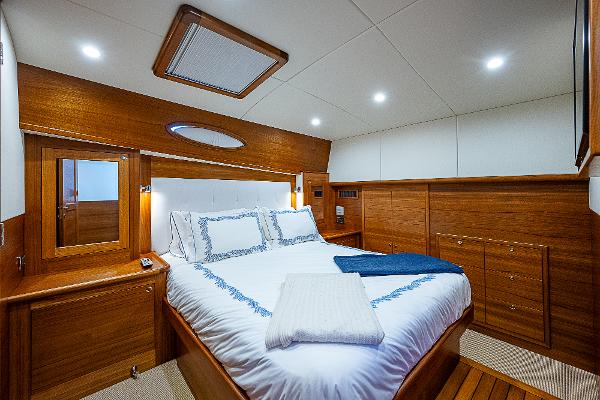

Custom queen-sized berth with memory foam mattress Samsung 43" HDTV, Optional Upgrade Custom carpet with acoustic underlay, Martinique CBD5/0001 Dune Dressing cabinets and mirrors LED overhead lighting Premium quality custom upholstery Reading lights Custom portholes Solid teak cabinetry with satin finish Square Lewmar overhead hatch Storage lockers with positive locking hardware Under berth storage drawers

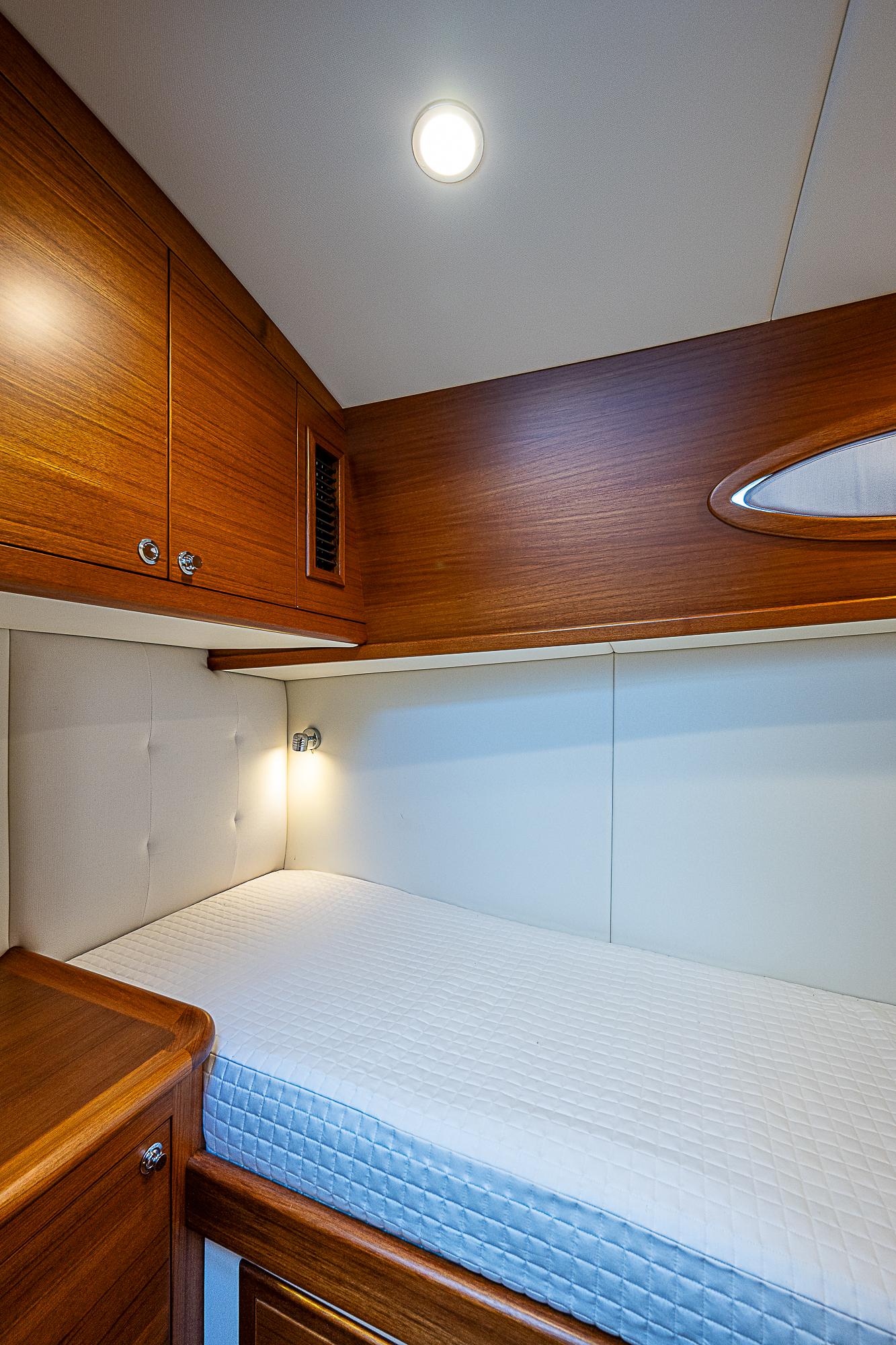

GUEST STATEROOM

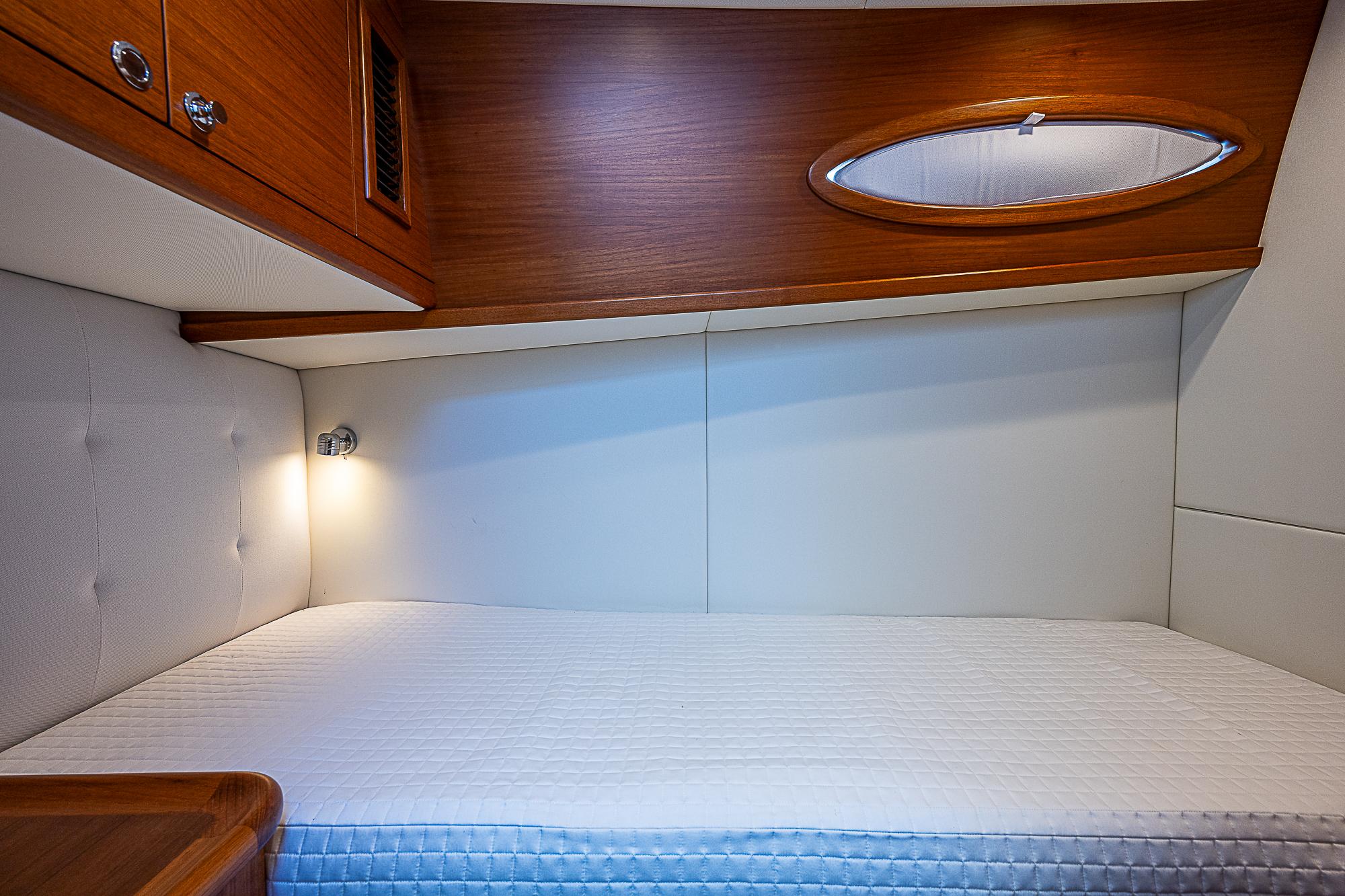

Single bunk with latex memory foam mattress Teak sole Dressing cabinets and mirrors Hanging locker LED overhead lighting Premium quality custom upholstery Reading lights Custom portholes Solid teak cabinetry with satin finish Overhead hatch Storage lockers with positive locking hardware Under berth storage drawers

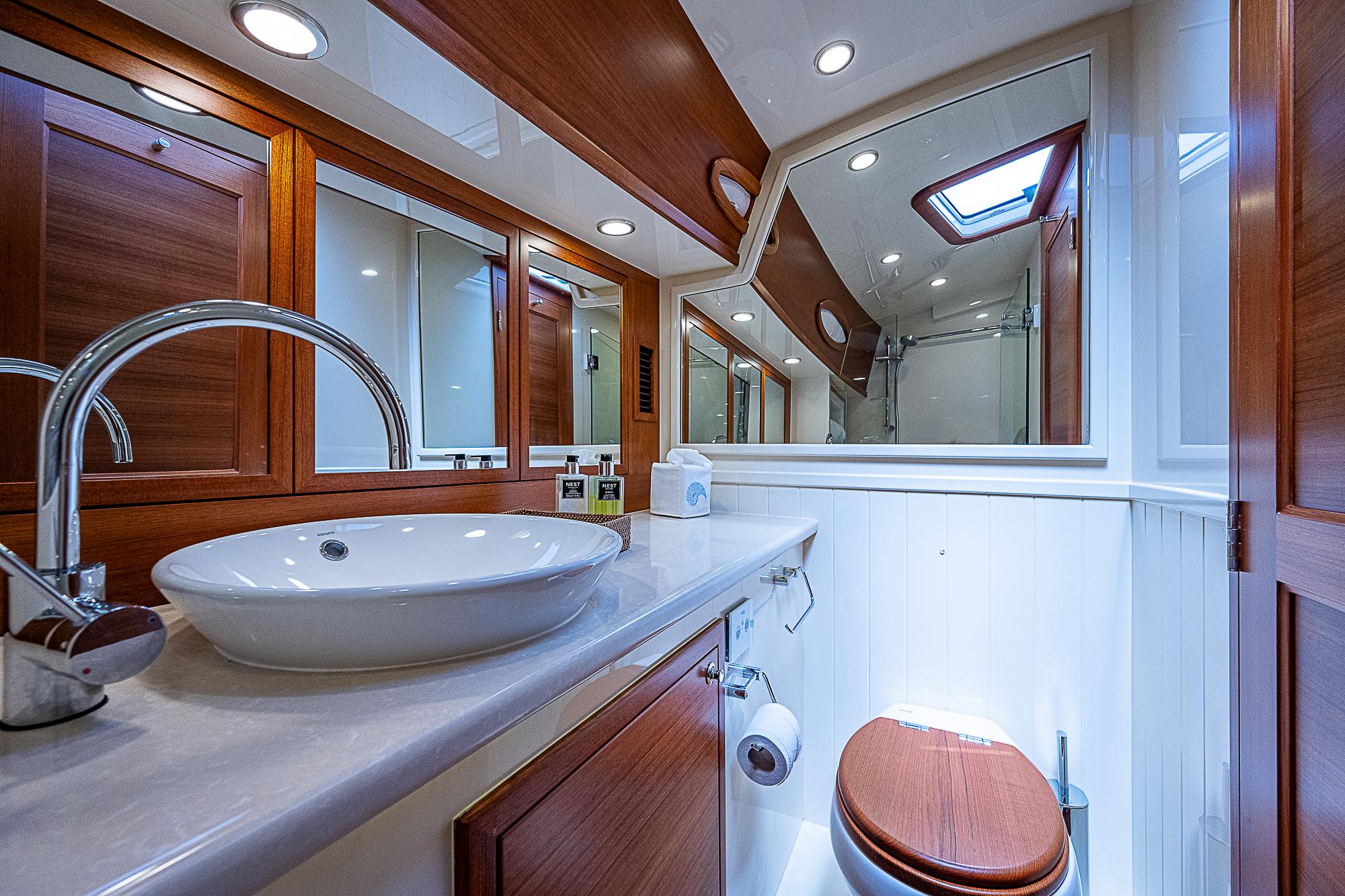

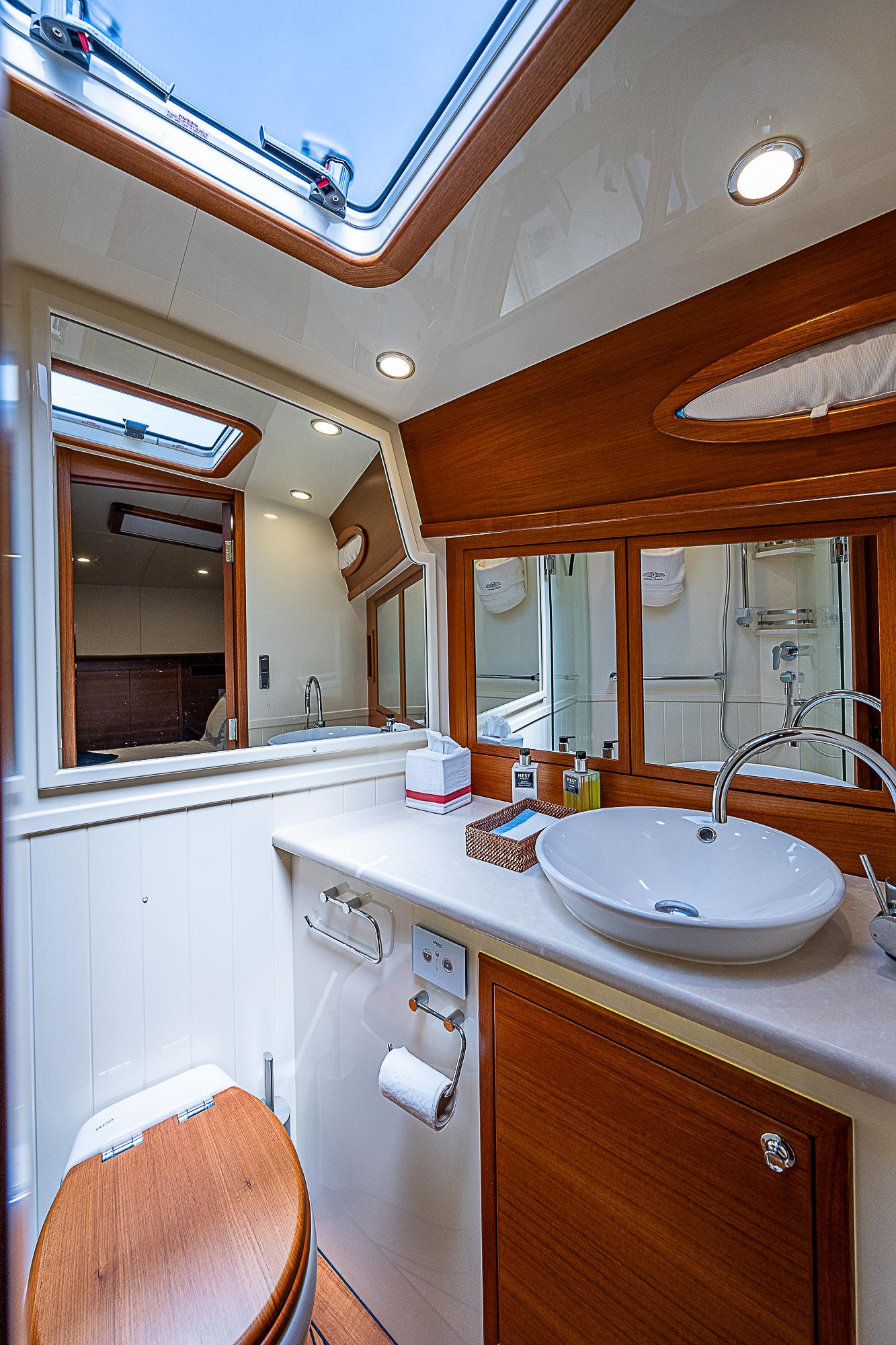

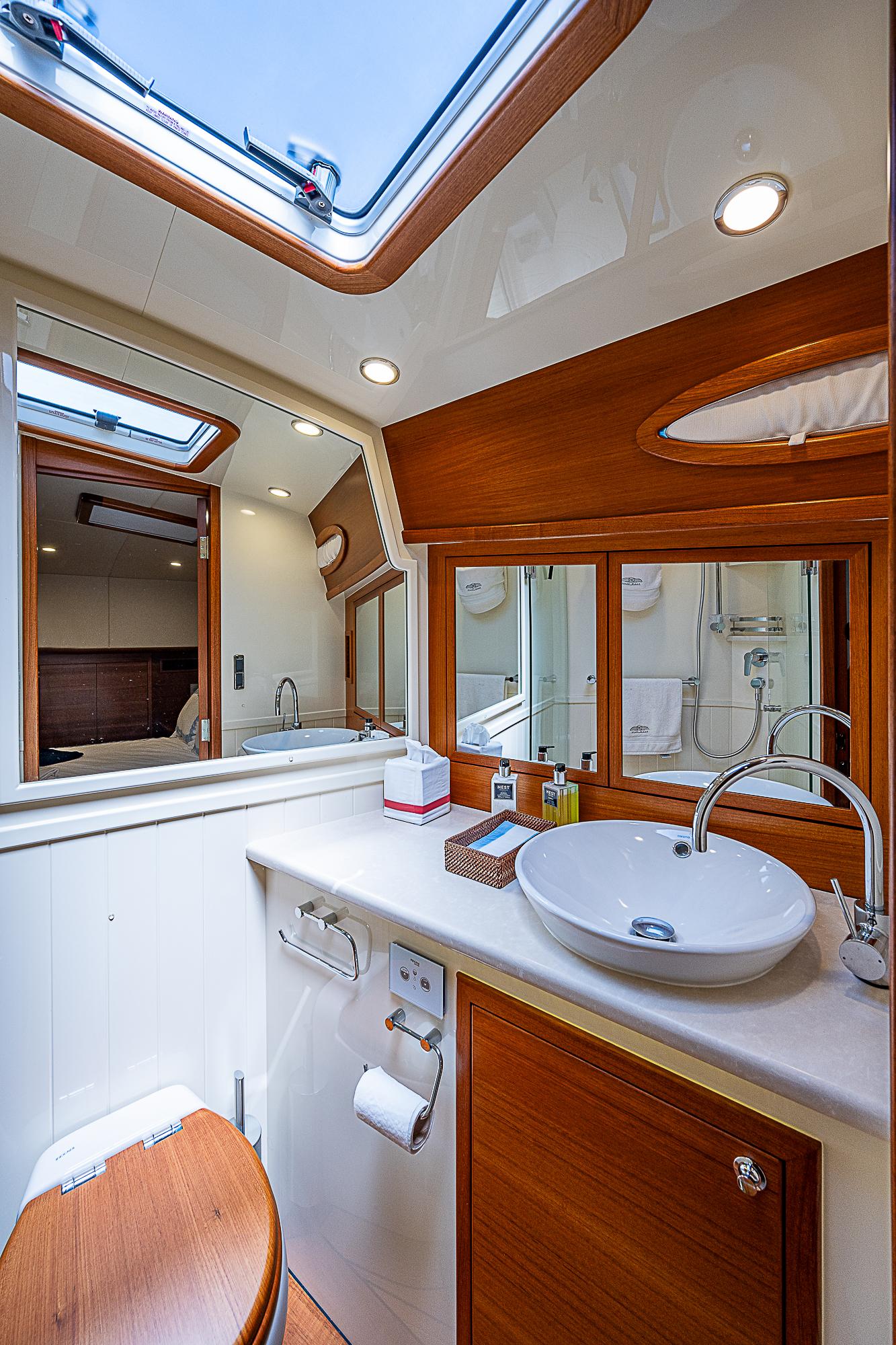

GUEST HEAD

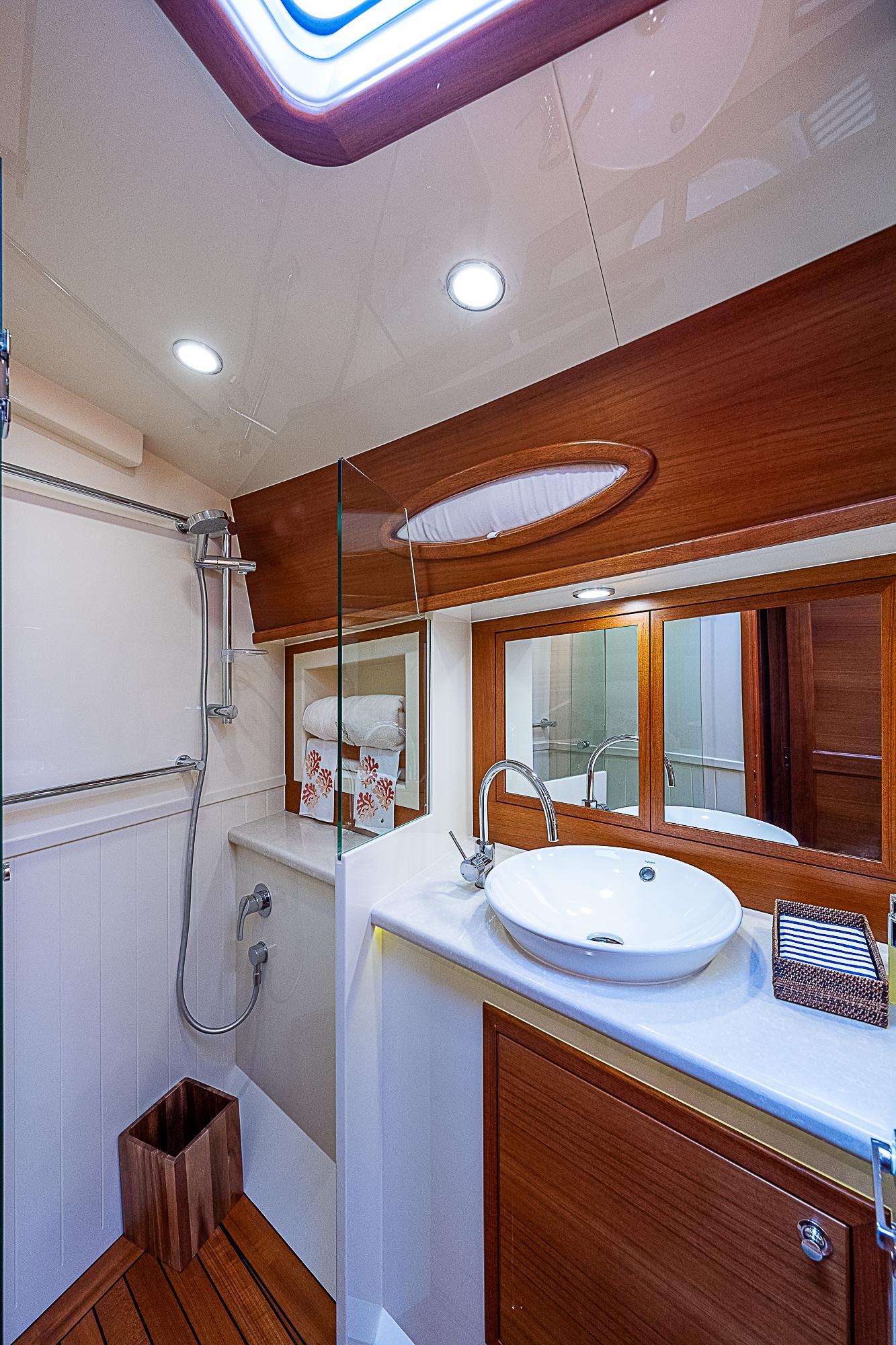

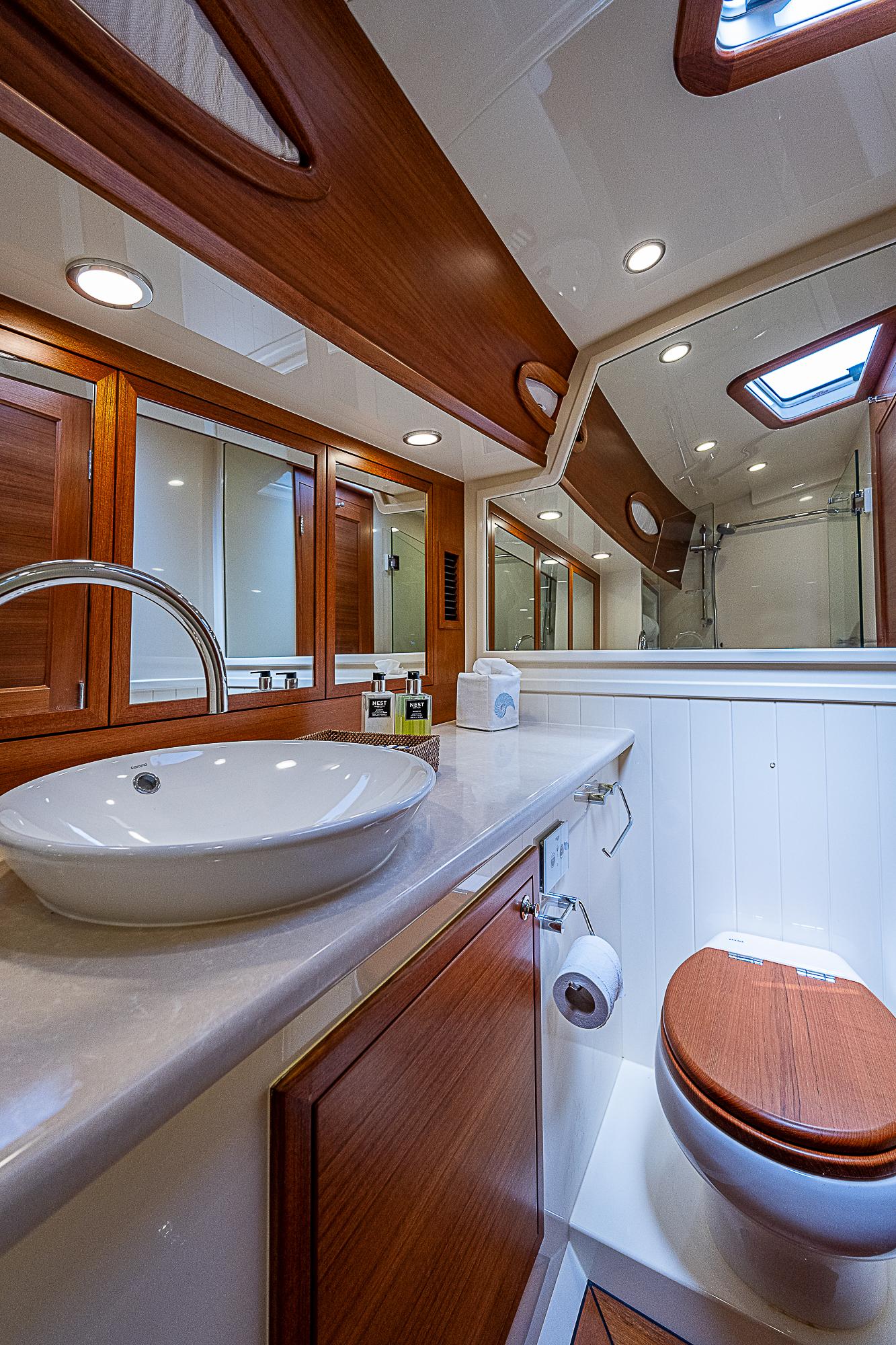

Fully enclosed, traditional in design with contemporary finishes incorporating a solid Silestone vanity top "Tigris Sand", stainless steel above counter basin and designer faucet.

Mirror LED overhead lighting Shower stall with glass partition, frameless glass door and automatic sump pump Teak flooring Solid teak cabinetry with satin finish Square Lewmar overhead tinted hatch Storage lockers positive locking hardware Macerating porcelain toilet with teak seat Toilet roll holder, accessories and wall-mounted brush holder Towel rail, chrome (2)

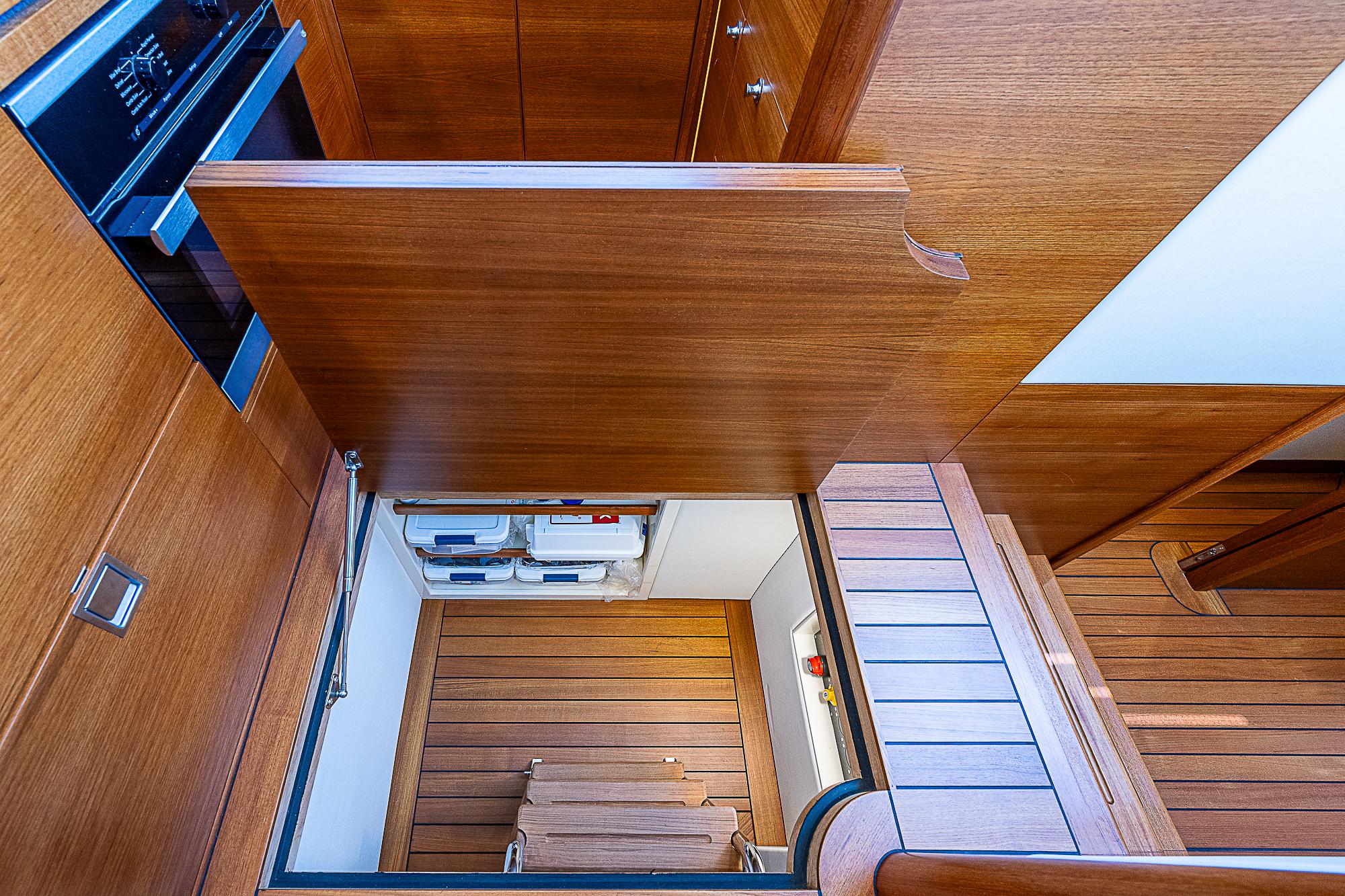

UTILITY ROOM

Teak sole Storage area

SAFETY

(2) fire extinguishers Throwable life ring Flare kit First aid kit 8 life jackets (1) boat hook

EXCLUSIONS

Master and VIP stateroom Bedding. Owner's personal belongings. A complete list will be provided upon request.
